USING THE TABLET
Workshop Tools
35
4. A “results” screen displays when the reset procedure has been completed. Select End, then press OK to terminate
the test.
EV/HEV/PHEV Battery Health
Follow these steps to check the vehicle’s battery and alternator system (or hybrid/EV battery system) to ensure the system
is operating within acceptable limits.
1. Select EV/HEV/PHEV Battery Health in the Workshop Tools screen, then press OK.
n The EV/HEV/PHEV Battery Health displays.

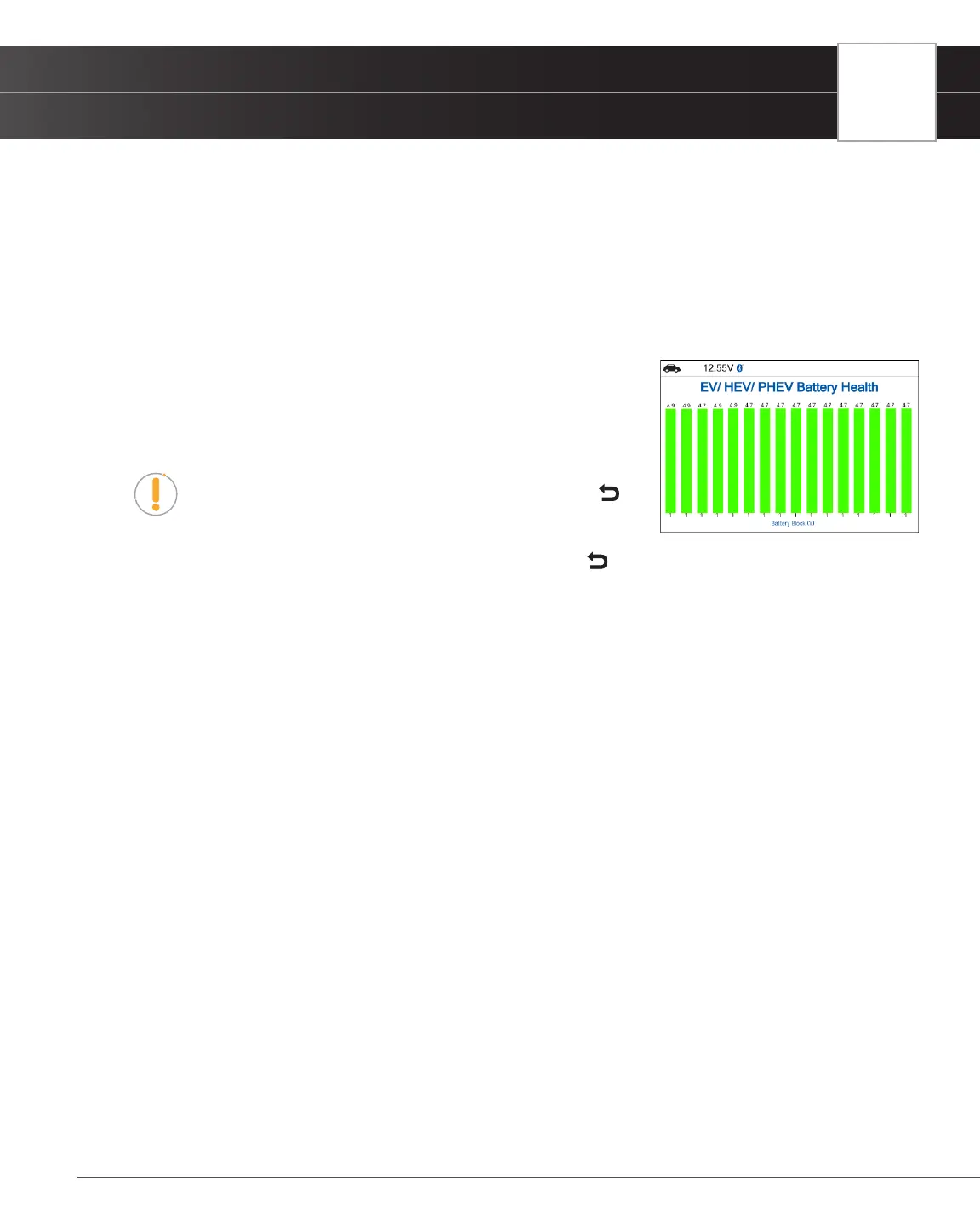

n If the vehicle is an electric or hybrid vehicle, the EV/ HEV/PHEV
Battery Health screen shows a graphic representation of the
vehicle’s current state of charge for all battery pack cells.
NOTE: If the Hybrid/EV Battery Test is not supported by the
vehicle under test, an “advisory” message displays. Choose
Back to return to the Workshop Tools screen.
2. When you have nished viewing the retrieved information, choose Back to return to the Workshop Tools screen.
Battery / Alternator Test
The Tablet can perform a check of the vehicle’s battery and alternator system to ensure the system is operating within
acceptable limits. Follow these steps to perform a battery check only, or an alternator system (battery and alternator) check.
Perform a Battery Check Only
If the vehicle is not an electric or hybrid vehicle, the Workshop Tools displays the Battery/Alternator Test function.
1. Select Battery/Alternator Test, then press the OK button.
n The Battery/Alternator Test menu displays.
2. Select Battery Test, then press OK.
n An “instructional” message displays, showing the procedures to prepare the vehicle for the battery
check.
3. Prepare the vehicle for the battery check:
n Turn the engine OFF.
n Place the transmission in PARK or NEUTRAL and set the parking brake.
n Make a visual check of the battery’s condition. If the battery terminals are corroded or other damage
is present, clean or replace the battery as appropriate.
n For “unsealed” batteries, make sure the water level in each cell is above the battery plates.
n Turn the ignition on. DO NOT start the engine.
4. Press the Continue to proceed.
