INTRODUCTION
Tablet Controls and Indicators
See Figure 1 for the locations of items 1 through 11, below.
1. 3.5-inch LCD Screen - Color LCD display shows menus and sub-menus, test results, Tablet Scan Tool functions and
vehicle status information.
2. Diagnostic Port - Connects the Tablet Scan Tool to the vehicle’s Data Link Connector (DLC).
3. USB Port - Allows connection to a PC using a standard USB cable.
4. GREEN LED - Indicates that all engine systems are running normally, and all emission monitors are active and
performing their diagnostic testing. The Malfunction Indicator “Check Engine” Lamp on the vehicle’s instrument panel
is off.
5. YELLOW LED - Indicates there is a possible problem in one or more of the vehicle’s systems. Either a “Pending” DTC
is present and/or some of the vehicle’s emission monitors have not run their diagnostic testing.
6. RED LED - Indicates there is a problem in one or more of the vehicle’s systems. The Malfunction Indicator “Check
Engine” Lamp on the vehicle’s instrument panel is on.
7. Home Button - Press from any screen to return back to the Home screen (except the screen in services reset
function).
8. OK Button - Conrms the selected option or value.
9. Left / Right Button - Moves selection cursor left or right, or helps scroll through pages when more than one page
is displayed.
10. Up / Down Button - When in MENU mode, scrolls Up/Down through the menu options. When LINKED to a
vehicle, scrolls Up/Down through the current display screen to display additional data.
11. Back Button - Exits the current function or returns to the previous screen.

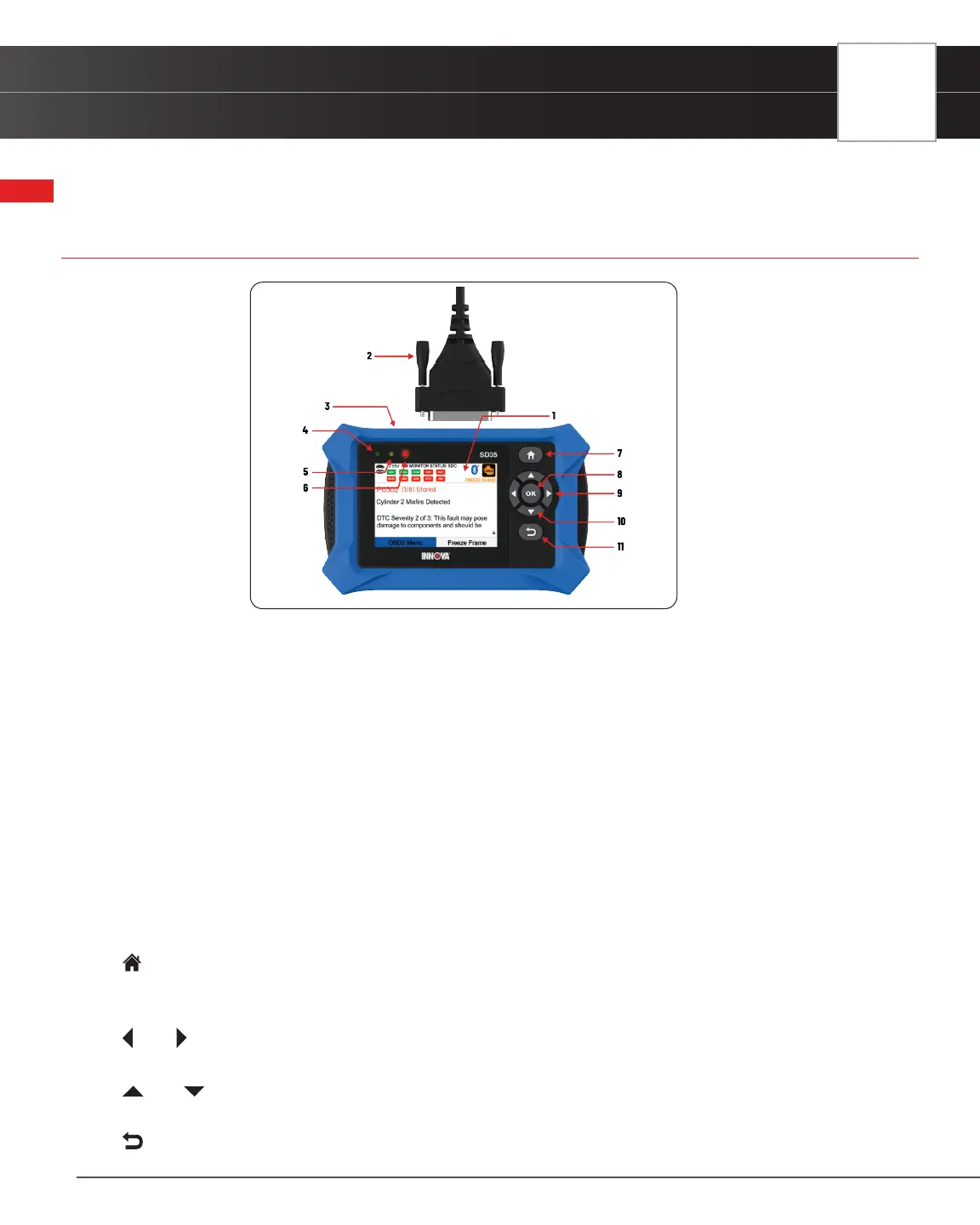

Figure 1� Controls and Indicators
