Integra DTR-8.4 - Connecting the DTR-8.4-Continued; Using Multichannel Connections; Connecting a VCR for Playback

29

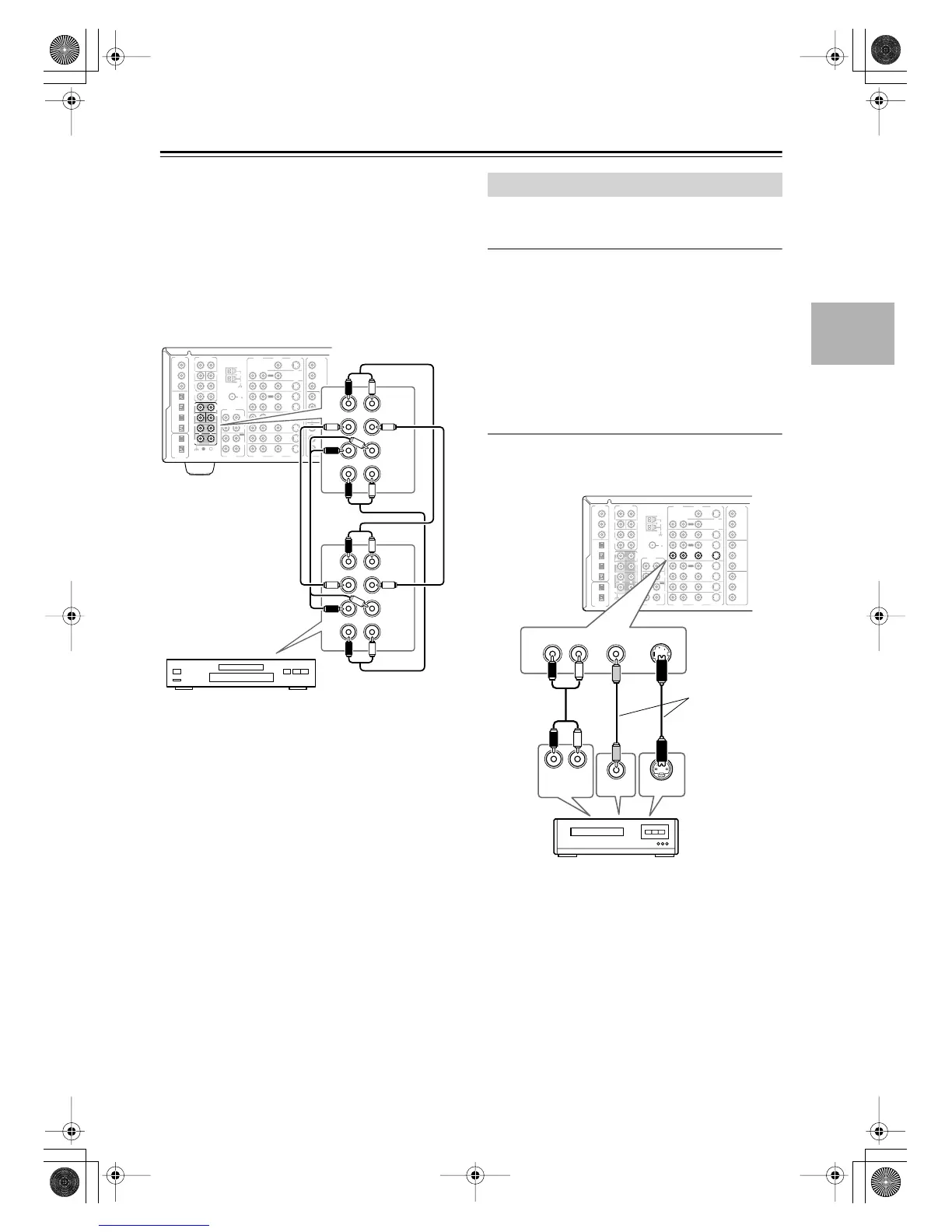

Connecting the DTR-8.4 —Continued
■ Using Multichannel Connections
If your player supports multichannel audio formats such
as DVD-Audio, and it has multichannel analog audio
outputs, you can enjoy DVD-Audio playback.
Use a multichannel analog audio cable (RCA/phono) to
connect the DTR-8.4’s MULTI CH INPUT FRONT L/R,
SUB, CENTER, SURR L/R, and SURR BACK L/R to
the 5.1 or 7.1 analog outputs on your DVD player, as
shown. Alternatively, use several analog audio cables
(RCA/phono).
You can play a video from a VCR via the DTR-8.4.
Video Connections
• Use an S-Video cable to connect the DTR-8.4’s
S VIDEO VIDEO 1 IN to the S-Video output on your
VCR, as shown.
OR
• Use a composite video cable to connect the DTR-8.4’s
VIDEO VIDEO 1 IN to a composite video output on
your VCR, as shown.
An S-Video connection provides better picture quality
than a composite video connection.
Audio Connections
• Use an analog audio cable (RCA/phono) to connect
the DTR-8.4’s AUDIO VIDEO 1 IN L/R inputs to the
analog audio outputs on your VCR, as shown.
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL
IN
PRE OUT
DIGITAL
OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R
L
AUDIO
R
L
CD
TAPE
R
L
AUDIO
VIDEO
S VIDEO
MONITOR
OUT
R
L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO
AUDIO
VIDEO
S VIDEO
1
3
GND
SURR
BACK/
ZONE 2
R
L
IN
COAX
R
CENTER
R
L
MULTI CH
INPUT
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
AM
ANTENNA
COMPONENT
VIDEO
Y
P
B
PR
OUTPUT
INPUT 1
Y
P
B
PR
INPUT 2
Y
P
B
PR
R
L
MULTI CH
INPUT
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
R
L
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
DVD player
Connecting a VCR for Playback
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL
IN
PRE OUT
DIGITAL
OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R
L
AUDIO
R
L
CD
TAPE
R
L
AUDIO
VIDEO
S VIDEO
MONITOR
OUT
R
L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO
AUDIO
VIDEO
S VIDEO
1
3
GND
SURR
BACK/
ZONE 2
R
L
IN
COAX
R
CENTER
R
L
MULTI CH
INPUT
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
AM
ANTENNA
COMPONENT
VIDEO
Y
P
B
PR
OUTPUT
INPUT 1
Y
P
B
PR
INPUT 2
Y
P
B
PR
VIDEO 1
LR
S VIDEO OUT
VIDEO OUT
AUDIO
OUTPUT
IN
LR
VCR
Connect one
or the other
