Integra DTR-8.4 - Front & Rear Panels-Continued; Rear Panel Connections

12
Front & Rear Panels —Continued
For detailed information, refer to the pages in parenthesis.
A
DIGITAL IN COAX 1–3, OPT 1–4 (28, 30, 32,
34, 35)
These coaxial and optical digital audio inputs can be
used to connect CD, DVD, or LD (laser disc) play-
ers and other components with digital audio outputs.
B DIGITAL OUT OPT 1 & 2 (35)
These optical digital audio outputs can be used to
connect a CD recorder or other digital recorder with
digital inputs.
C
PRE OUT—FRONT L/R, SUB, CENTER,
SURR L/R (36)
If you use the DTR-8.4 as a preamp, these analog
audio outputs can be connected to the inputs on a
separate power amp. The SUB output is used to
connect a powered subwoofer.
D
PRE OUT—SURR BACK/ZONE 2 (36, 84)
These analog audio outputs can be used to feed the
L/R surround back inputs on a separate power amp
when the DTR-8.4 is used as a preamp, or to feed a
power amp in Zone 2.
E
MULTI CH INPUT—FRONT L/R, SUB,
CENTER, SURR L/R, SURR BACK L/R (29)
These analog audio inputs can be used to connect AV
components with multiple analog audio outputs,
including DVD players with individual 5.1/7.1 sur-
round analog audio outputs.
F AM ANTENNA (24)
These push terminals are for connecting an AM
antenna.
G
FM ANTENNA (24)
This connector is for connecting an FM antenna.
H PHONO IN (35)
These analog inputs can be used to connect a turnta-
ble with a moving-magnet cartridge.
I
CD IN (34)
These analog inputs can be used to connect a CD
player with analog outputs.

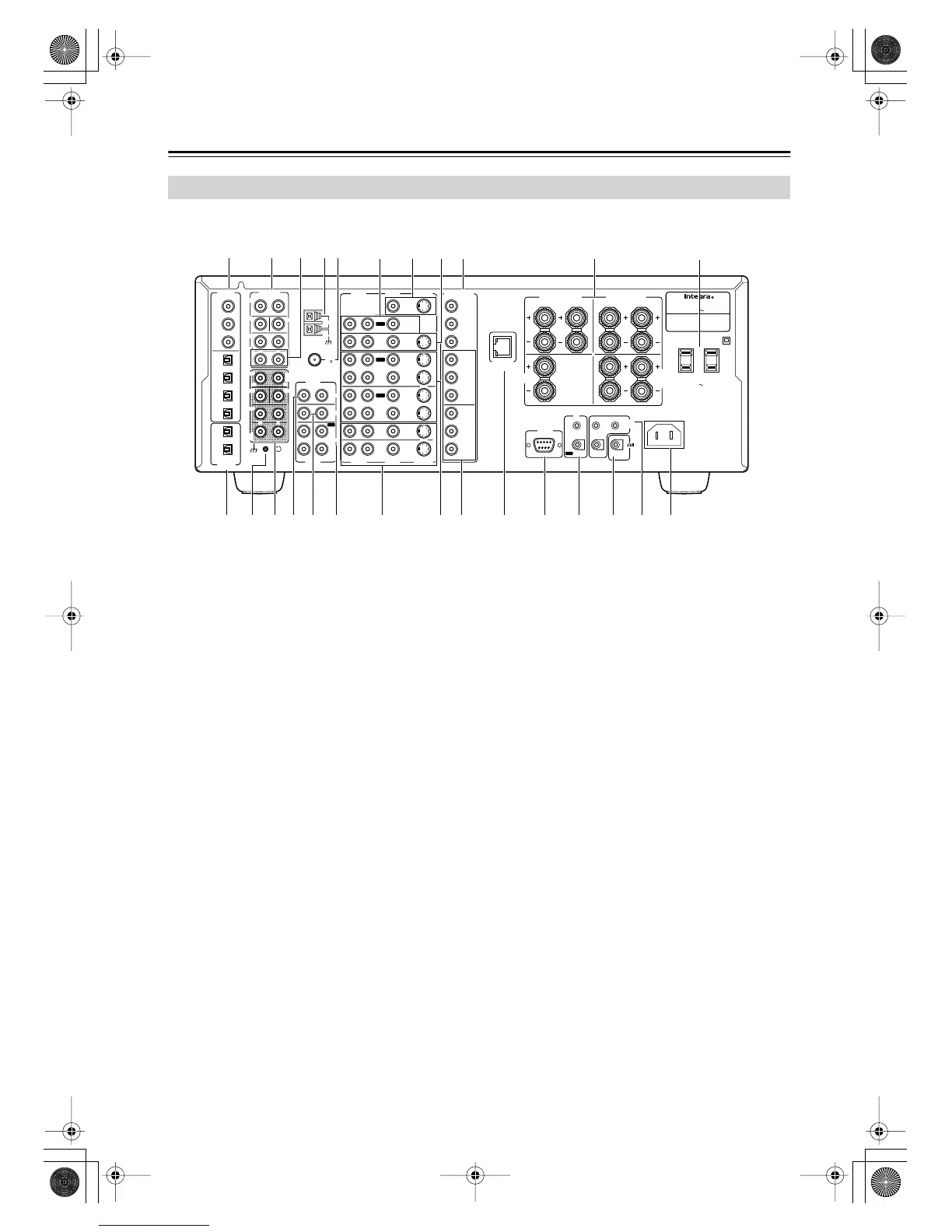

Rear Panel
FM
75
OUT
OUT
OUT
OUT
L
PHONO
PRE OUT
FRONT
SUB
SURR
R
L
AUDIO
R
L
CD
TAPE
R
L
AUDIO
VIDEO
S VIDEO
MONITOR
OUT
R
L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO
AUDIO
VIDEO
S VIDEO
GND
SURR
BACK/
ZONE 2
R
L
IN
AC INLET
R
CENTER
ETHERNET
(Net -Tune)
R
L
MULTI CH
INPUT
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
AM
ANTENNA
COMPONENT
VIDEO
Y
P
B
PR
OUTPUT
INPUT 1
Y
P
B
PR
INPUT 2
Y
P
B
PR
SURR
BACK/
ZONE 2
SPEAKERS
FRONT SPEAKERS
L
RL
R
SURR SPEAKERS
CENTER
SPEAKER
R
L
AC OUTLETS
AV RECEIVER
MODEL NO. DTR
-
8.4
RATING
:
AC 120 V 60 Hz 9.0 A
AC 120 V 60 Hz
SWITCHED
TOTAL 120W 1A MAX.
I R
IN
ZONE 2
REMOTE
CONTROL
A
B
RS232
OUT
12 V
TRIGGER OUT
DIGITAL
IN
DIGITAL
OUT
OPT
OPT
2
1
2
3
4
1
2
1
3
COAX
ZTUVWXRQONBEHIJ
SP1CDFG KLM Y
