Import
Si5391 has a two-time rewritable non-volatile memory (NVM). You can generate the
register list from the Skyworks* ClockBuilder Pro tool and import it into Si5391 to
update the settings of the RAM. Register changes are volatile after power cycling.

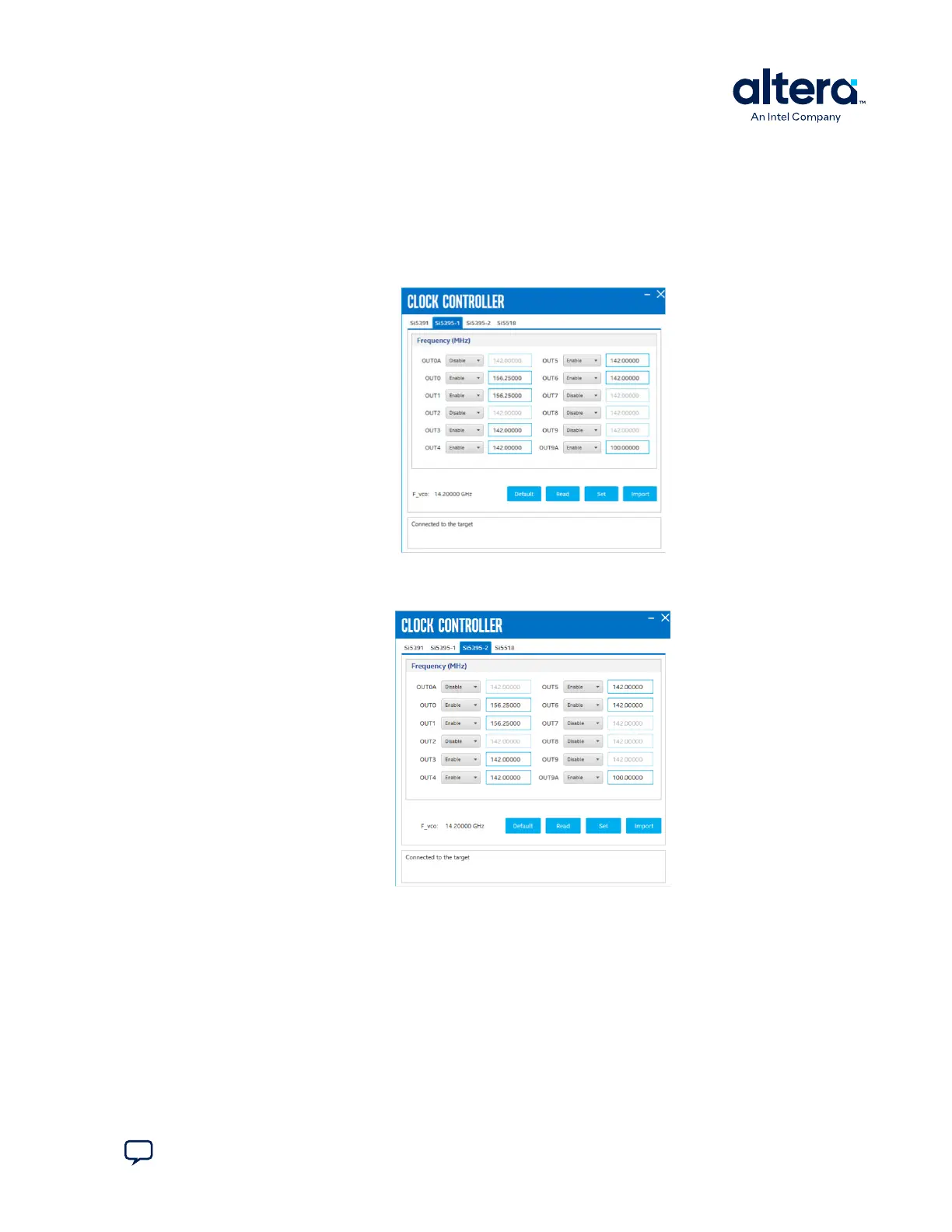

Figure 25. Si5395-1
Similar control functions with Si5391.
Figure 26. Si5395-2
Same with Si5395-1.
