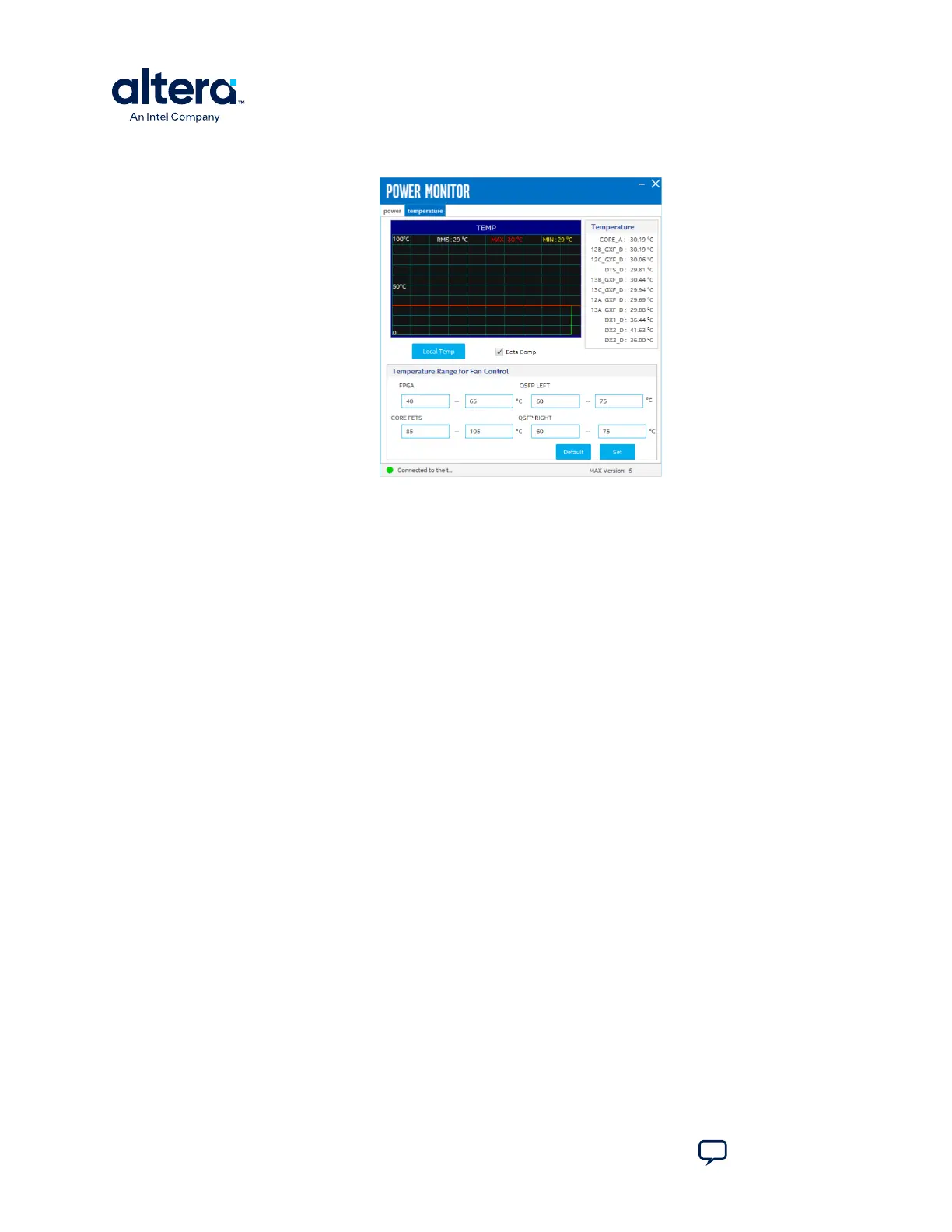

Figure 29. Power Monitor GUI—The Temperature Tab
Temperature
Reads the temperature data from temperature sense diodes inside the FPGA die or
assembled on PCB.
Local Temp
Shows the temperature comparison of local and remote temperature sensors.
Beta Comp
Enables beta compensation for temperature sensing chips.
Temperature Range for Fan Control
Sets and displays the temperature range for fan control. This part information is store
in the first 8 bytes of EEPROM (U114). Pay attention to not overwrite it.
4.5. Identify Test Pass or Fail-based on BTS GUI Test Status
QSFPDD0/QSFPDD1/ QSFPDD2/QSFPDD3
Plug QSFPDD0/QSFPDD1/QSFPDD2/QSFPDD3 loopback module in J27/J48/J69/J67
before you configure QSFPDD NRZ example build through BTS GUI.
QSFPDD800
Plug QSFPDD800 loopback module in J22 before you configure QSFPDD800 PAM4
example build through BTS GUI.
FMCA/FMCB
Plug FMCA/FMCB loopback module in J7/J9 before you configure FMCA/FMCB NRZ
example build through BTS GUI.
