Dev Kit Manual 37 323094

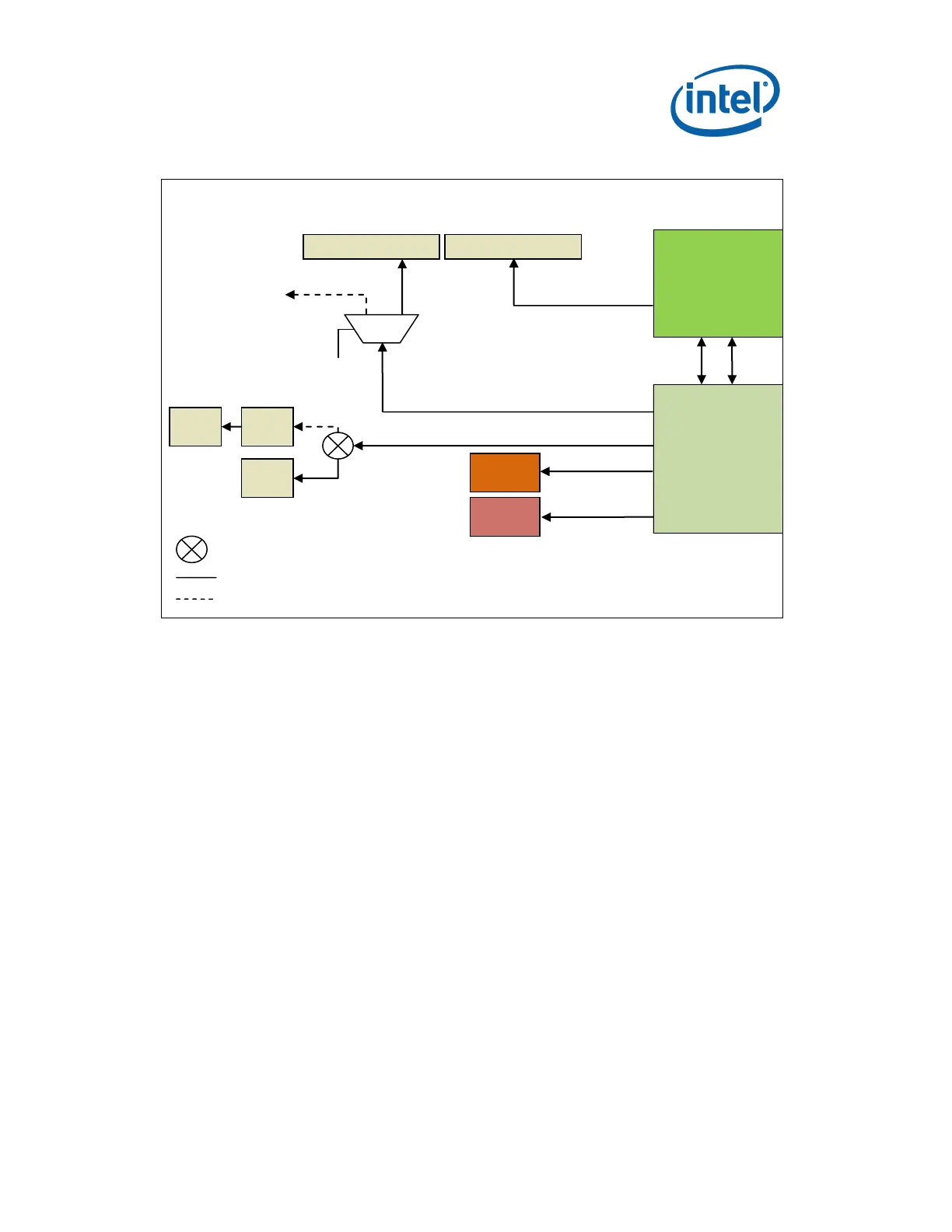

Figure 6. Intel
®
Core™ i7 Processor Based Low-Power Platform Display Interfaces
3.7.3.1.2 DP/HDMI Support
One DP and one HDMI Connectors have been provided on board.
1. Port D of Digital Display Interface on the chipset is mapped to on board DP and HDMI
connectors.
2. DP is the default configuration. To select HDMI rework is required on the
motherboards.
3. For HDMI:
a. No stuff – C5A1, C5A2, C5A13, C5A14, C5A5, C5A6, C5A9, C5A10.
b. Stuff – C5A3, C5A4, C5A15, C5A16, C5A7, C5A8, C5A11, C5A12 with 0402 0.1 uF
capacitor.
c. The same capacitors no stuffed in Step A can be used in Step B.
i. R2M2 and R2M5 are the 2.2k Pull-ups on SMBUS. These should be changed to
4.4K.
ii. For HPD: Stuff R5A1 with 0 ohms and No stuff R5A2.
3.7.3.2 Firmware Hub (FWH) support
Note: The development kit does not support a FWH on the board.
Processor
Chipset
DMI
FDI
DPC
Primary Slot
GPIO
from
H8
Secondary Slot
Add-in-Card
DP
MUX
x16 PCIe Connector
x16 PCIe Connector
DPC
1x16 PCIe (0:15)
To
Docking
DPD
HDMI
LVL
TRAN
DP
VGA
Connector
LVDS
Connector
To
Back
Panel
Resistor Strapping
Default Option (Solid Line)
Optional (Dashed Line)
