Appendix
Appendix A
Using Dual Antenna System (Optional)
Intellian's new BDT has embedded Dual Antenna Mediator function, which can be utilized to switch between
two Intellian VSAT antenna systems simultaneously. When one antenna is blocked by obstacles or has
suddenly lost service, another antenna will immediately provide fail-safe operation to maintain the highest
levels of system performance and reliability. It ensures always-on broadband service by reducing the out of
service time.
To use the Dual Antenna System, make sure that the antenna system components are properly installed.
Refer to the "Dual Antenna System Conguration (Optional)" on page 39 for more details.
Access the AptusNX (IP Address: 192.168.2.1) to manage and control the Dual Antenna System. You can

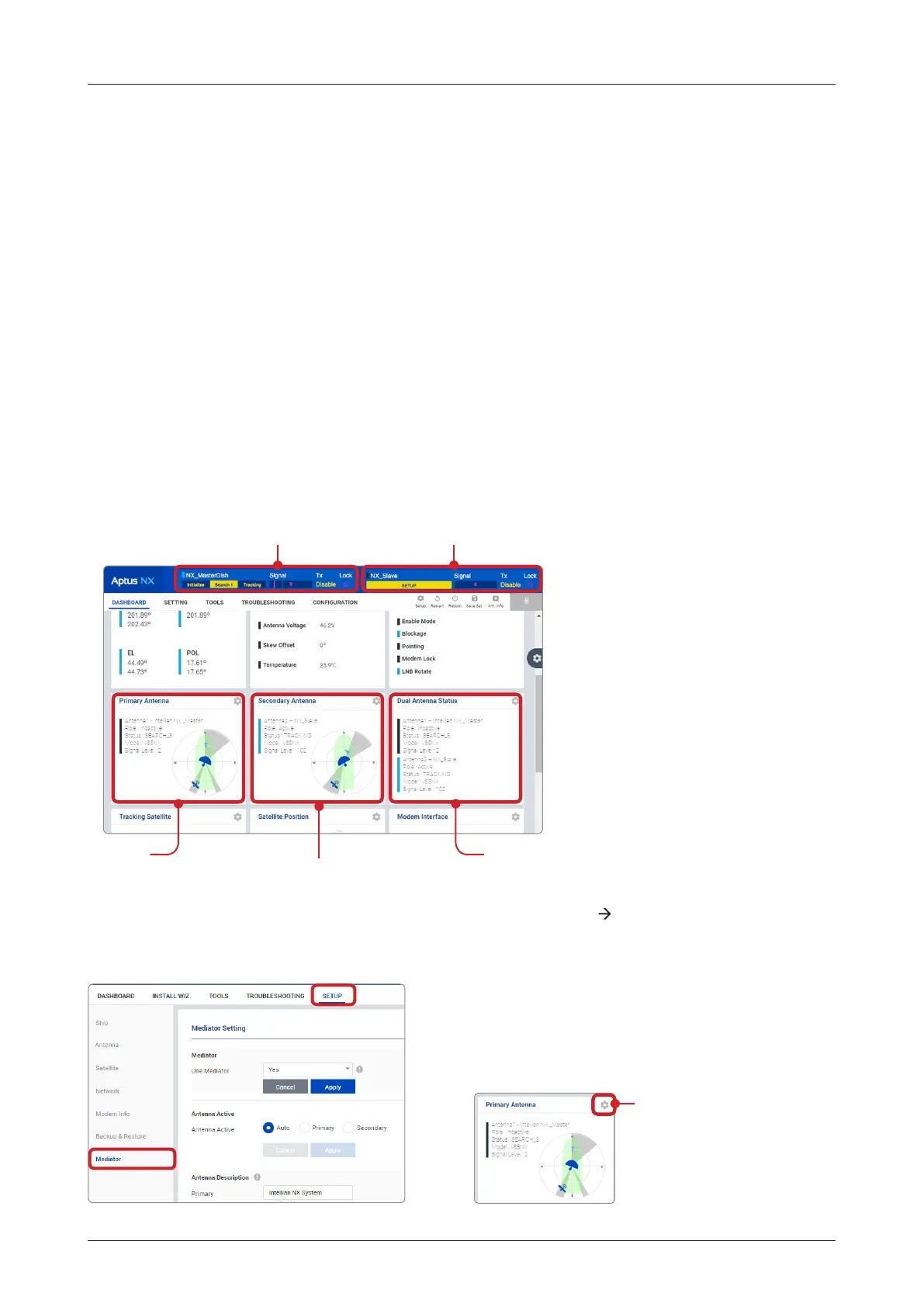

check the status of Dual Antenna System via AptusNX. The information for two antennas (Primary and
Secondary Antenna) is displayed on the Top Menu and the three panels (Dual Antenna Status, Primary
Antenna and Secondary Antenna) is displayed on the dashboard screen.
Dual Antenna
Status
Secondary Antenna
Primary Antenna Info. Secondary Antenna Info.
Primary
Antenna
To control and manage the Dual Antenna System, go to the "SETUP" "Mediator" menu. Refer to the
"Mediator Setting (For Dual Antenna System)" on page 111 for more details. Also using the "Shortcut"
button on right side of the panel at the "DASHBOARD" menu, you can easily access the settings page.
Mediator Setting Menu
Shortcut
Button
Dashboard Panel
