Intellian GX100NX - ACU Dimensions (Optional: for Dual Antenna System)

36
Installing Below Deck Unit (BDU)

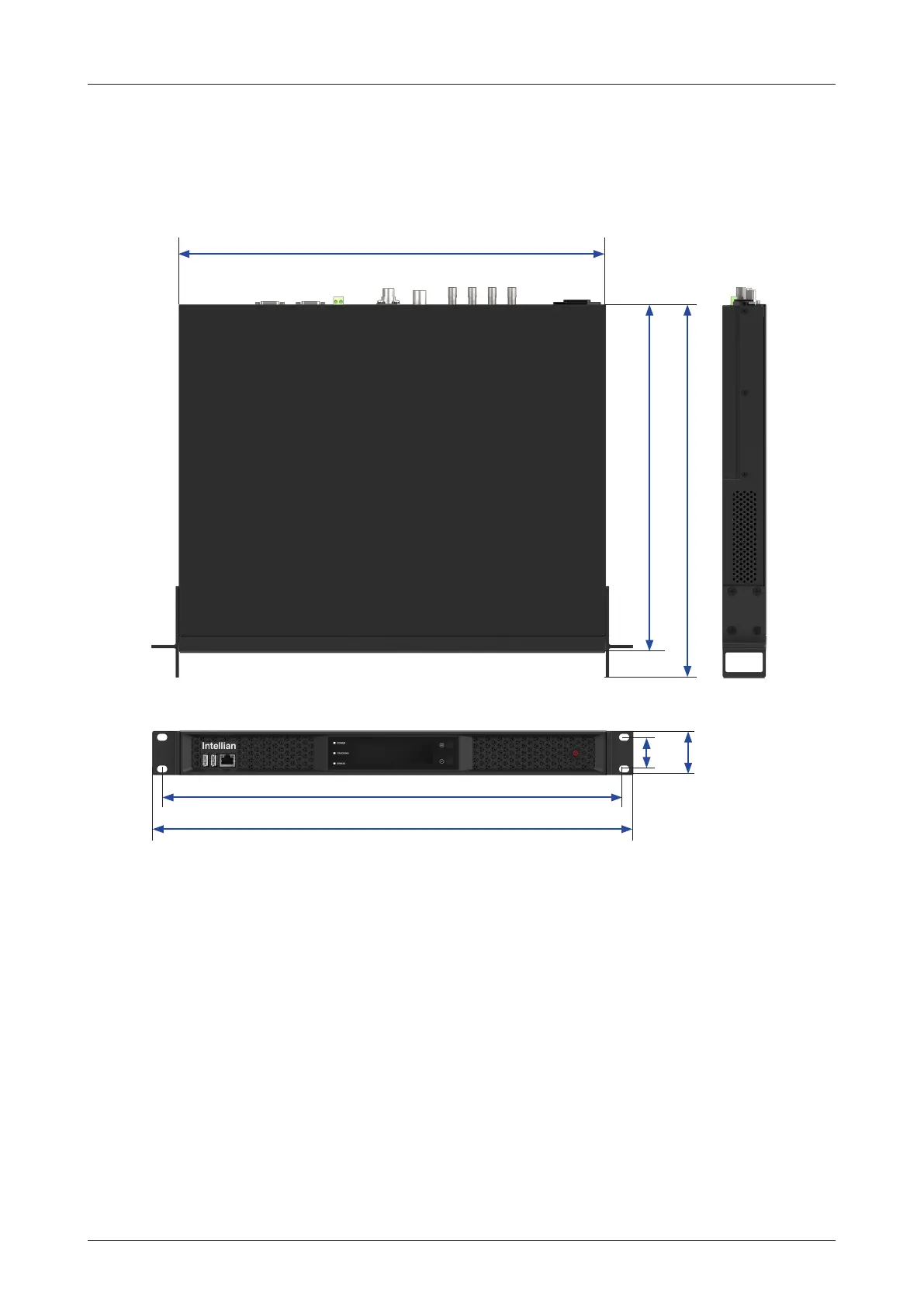

Figure: ACU Dimensions
350 mm (13.77") 376 mm (14.80")
32 mm (1.25")
44.3 mm (1.74")
466 mm (18.34")
431 mm (16.96")
485 mm (19.09")
ACU Dimensions (Optional: For Dual Antenna System)
Conrm the dimension of the ACU before installing it.
