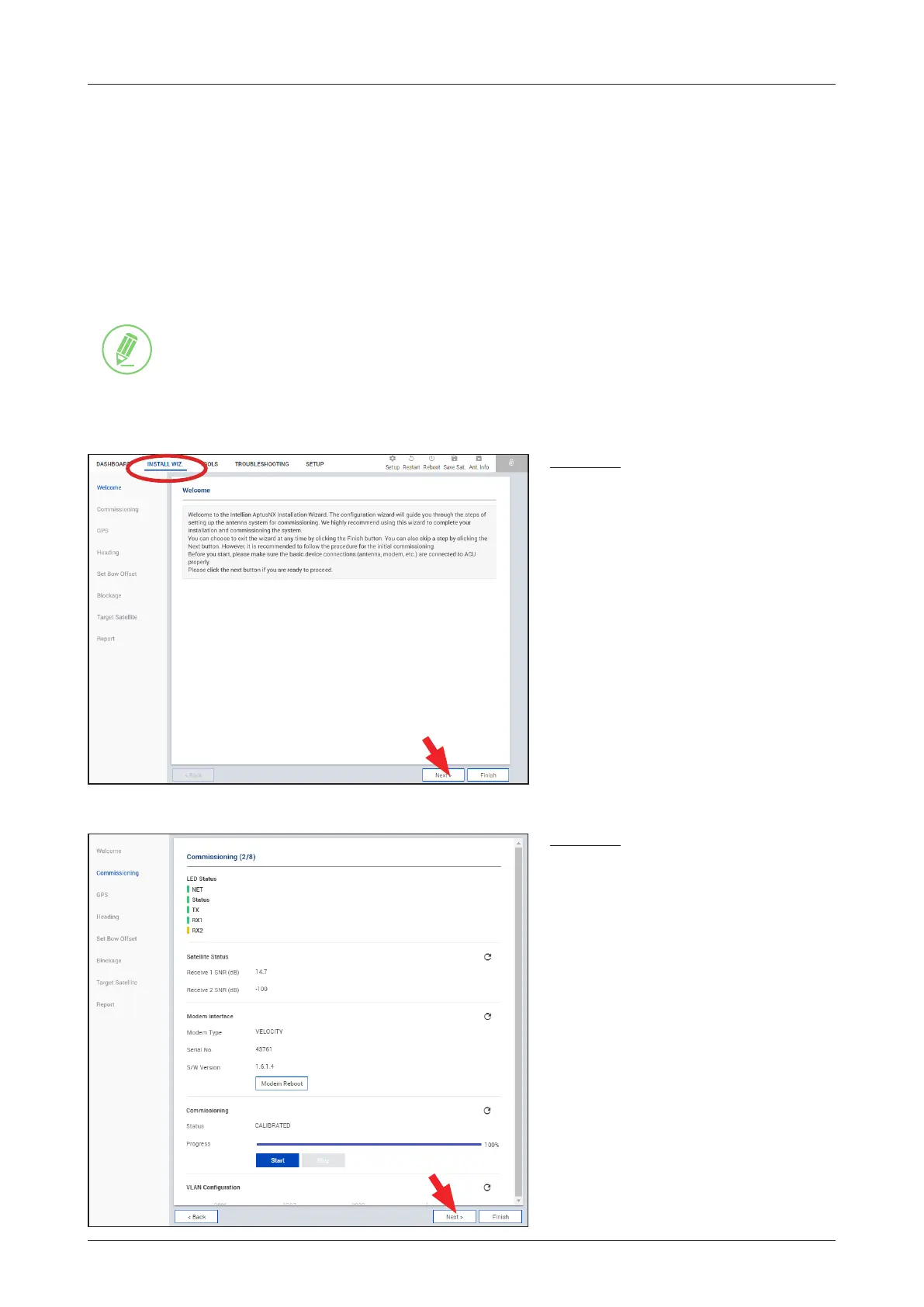

Operating Install Wizard
Starting Install Wizard
The Install Wizard will guide you through the steps of setting up the antenna system for commissioning. We
highly recommend using this wizard to complete your installation and commissioning the system. You can
choose to exit the wizard at any time by clicking the Finish button. You can also skip a step by clicking the
Next button. However, it is recommended to follow the procedure for the initial commissioning. Before you
start, please make sure the basic device connections (antenna, modem, etc) are connected to BDT properly.
This wizard includes a brief explanation of the purpose and action buttons to set the values. After accessing
the AptusNX main page, go to the "INSTALL WIZ." on the main menu then follow these steps.
ü
Welcome Page
Description
Displays the welcome message. Click the
"Next" button to start.
NOTE
NOTE
The detailed description of each function is written on the
"Using AptusNX" chapter on page 80.
Description
Performs the commissioning test to
calibrate the modem to receive the optimal
signal. The RF uplink frequency, the BUC
LO frequency, the TX frequency, and the
attenuator will calibrate automatically.
Click the 'Start' button to perform the
commissioning test automatically.
Ensure that the commissioning test is
performed after the rst-time connection
of the GX terminal, the BDT/cable
replacement, or band conversion.
If you have no problems, click the "Next"
button.
