Installing Below Deck Unit (BDU)
System Congurations
For your satellite communication system to work properly, the system will have to be connected with all of
the provided components as shown in the gure below. Separate purchase of a switch router and ship's
gyrocompass may be required.
Single Antenna System Conguration (Basic Antenna System)
The Basic system consists of one VSAT antenna and one BDT. As shown in the conguration below, connect
the cables correctly.

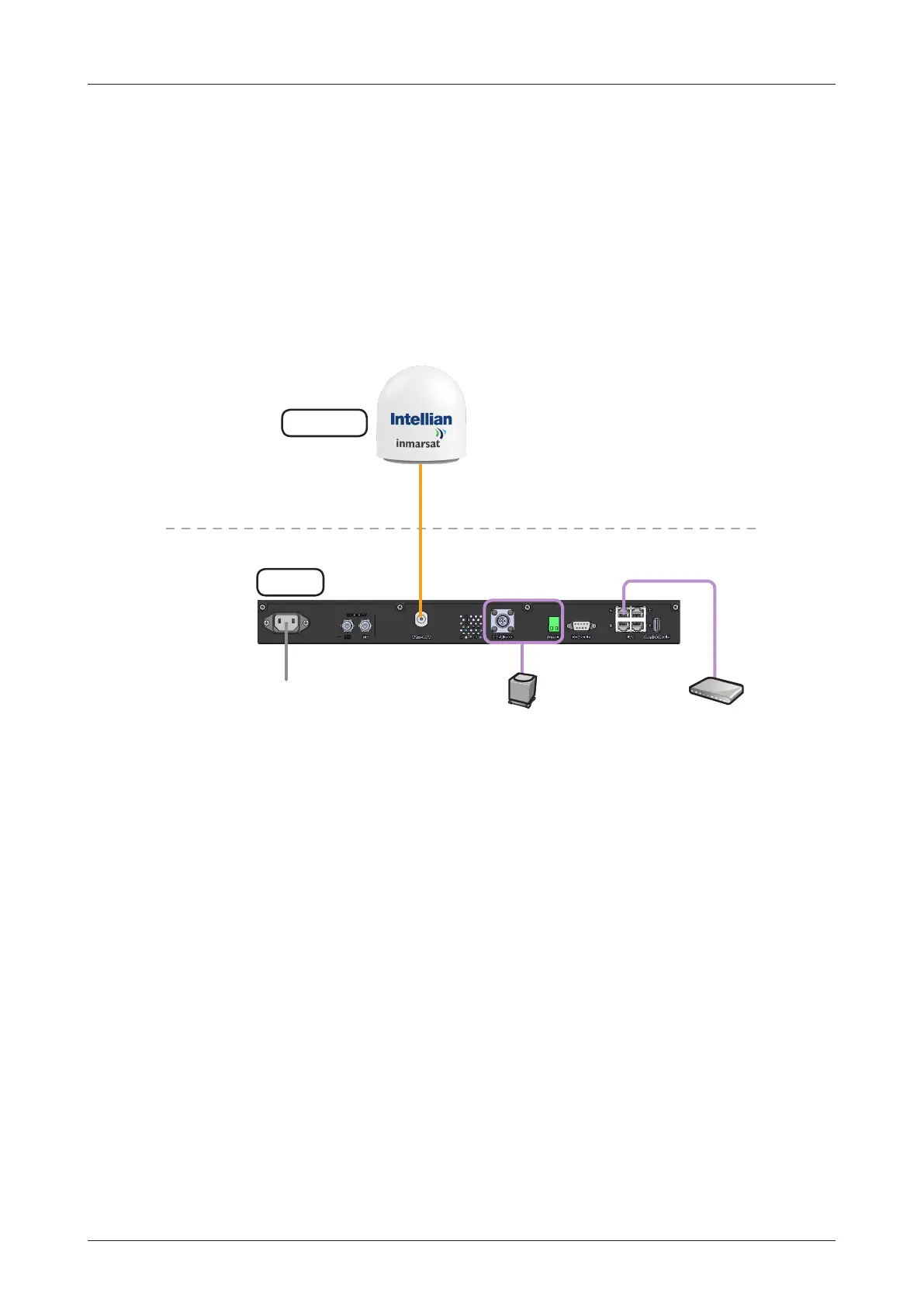

Figure: Single Antenna System Configuration (Basic Antenna System)
Above Decks
Below Decks
BDT
Antenna
Antenna
TX, RX, 48V DC Power
AC 100~240V
Switch Router
(Not supplied)
Ship's Gyro
(Not supplied)
LAN 2
NMEA Input
2000/0183
