40
Installing Below Deck Unit (BDU)
BDT Cable Connection

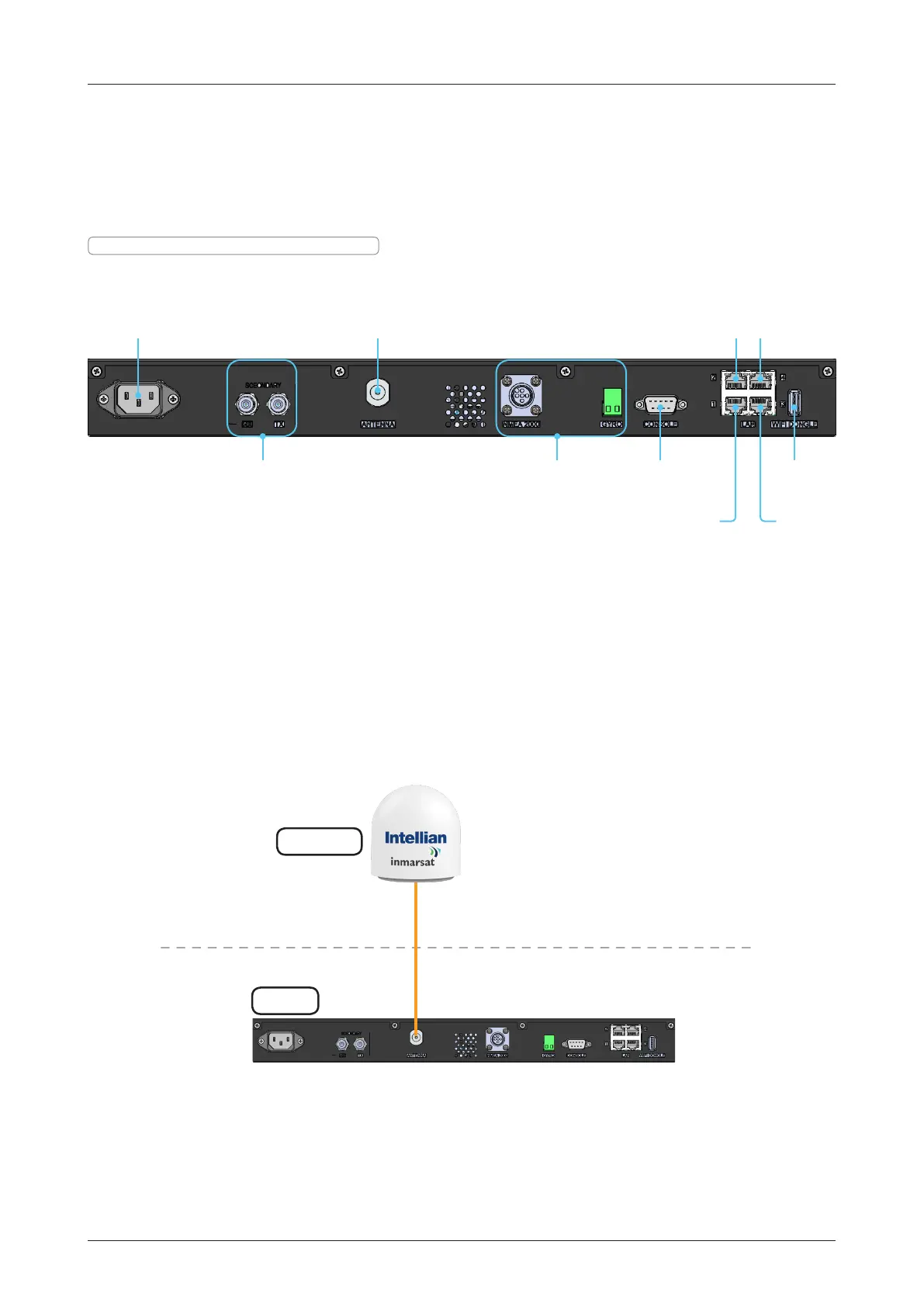

Name of BDT Rear Panel
The following gure shows the BDT's rear panel.
Below Deck Termial (BDT)
NMEA 2000 &
NMEA 0183 Input
Console
Wi-Fi
Dongle
Antenna
Connector LAN 2 Port
LAN 1 Port
LAN 4 Port
LAN 3 Port
Secondary
Rx/TX Connector
Power Cord
Connecting to Antenna
Connect the "RF Cable (not supplied by Intellian)" from the "ANTENNA" connector on the rear of the BDT to
the "RF Connector" inside cable entry of radome (Antenna).
Figure: BDT to Antenna Cable Connection
Figure: Name of BDT Rear Panel
Above Decks
Below Decks
BDT
Antenna
Antenna
TX, RX, 48V DC Power
To Next Page
