Installing Below Deck Unit (BDU)

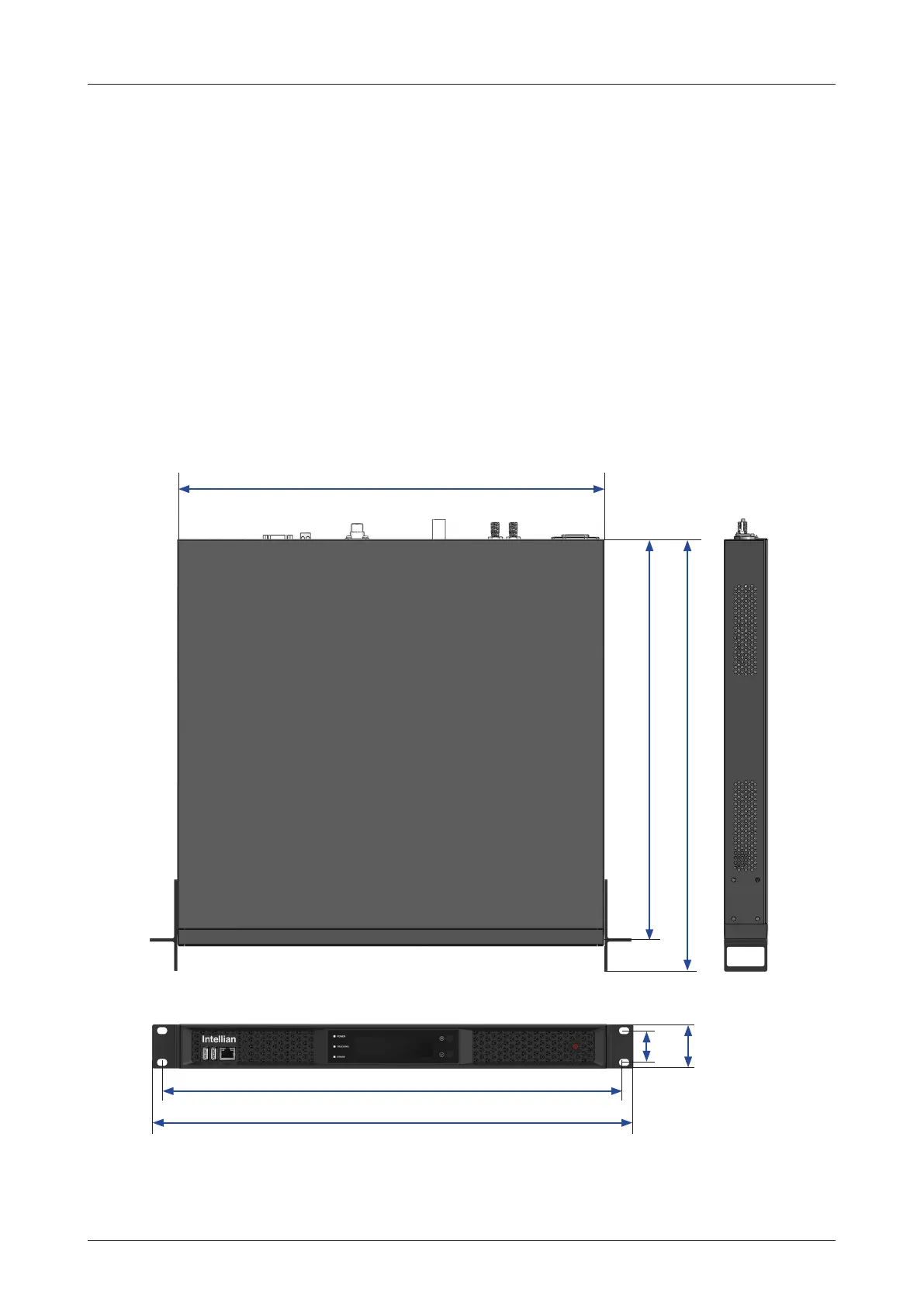

Figure: BDT Dimensions
411 mm (16.18")
437 mm (17.20")
32 mm (1.25")
44.3 mm (1.74")
466 mm (18.34")
431 mm (16.96")
485 mm (19.09")
BDT Dimensions
Conrm the dimension of the BDT before installing it.
Installing Below Deck Unit (BDU)
Selection of BDU Installation Site
The BDU should be installed below deck, in a location that is:
• Dry, cool and ventilated.
• The front panel should be easily accessible to users.
