Planning Installation
Antenna Dimensions
Conrm the height and diameter of the bottom surface of the antenna unit before installing it. The mounting
surface and overall space occupied by the antenna must be sufcient for the height and diameter of the fully
constructed radome. The height and the diameter of the bottom surface of the antenna are as shown in the
following drawing. It is strongly suggested that the installation is conducted using a crane.

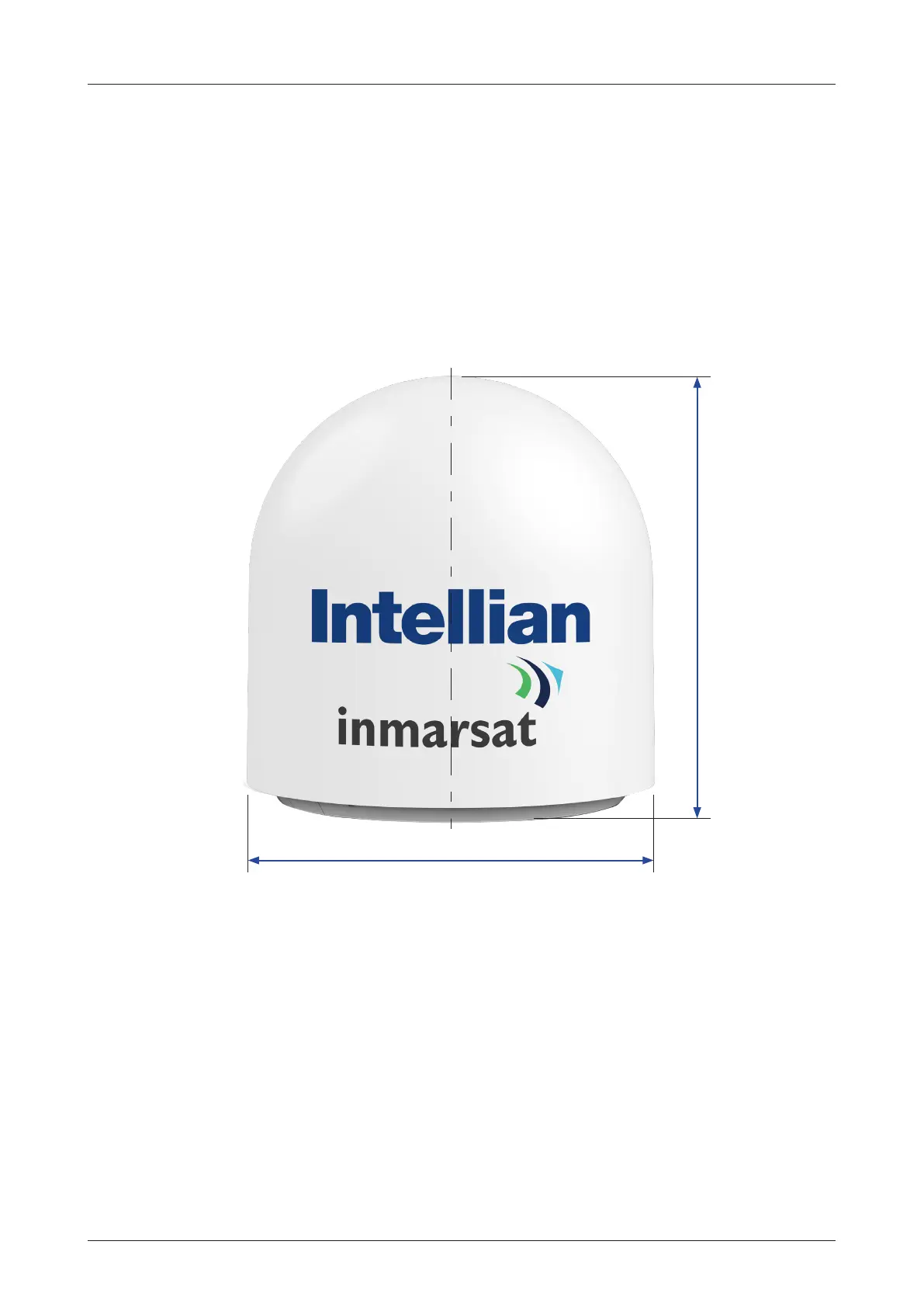

Figure: Antenna Dimensions
Antenna Specication
1454 mm (57.44")
Ø1379 mm (54.29")
