74
Operating ACU (Optional)
DIAGNOSIS
DIAG ALL
SNR F:20.119/18.250 RX:L TX:R
TRACKING 128.0 E
HDG:120.4
GPS:
A S

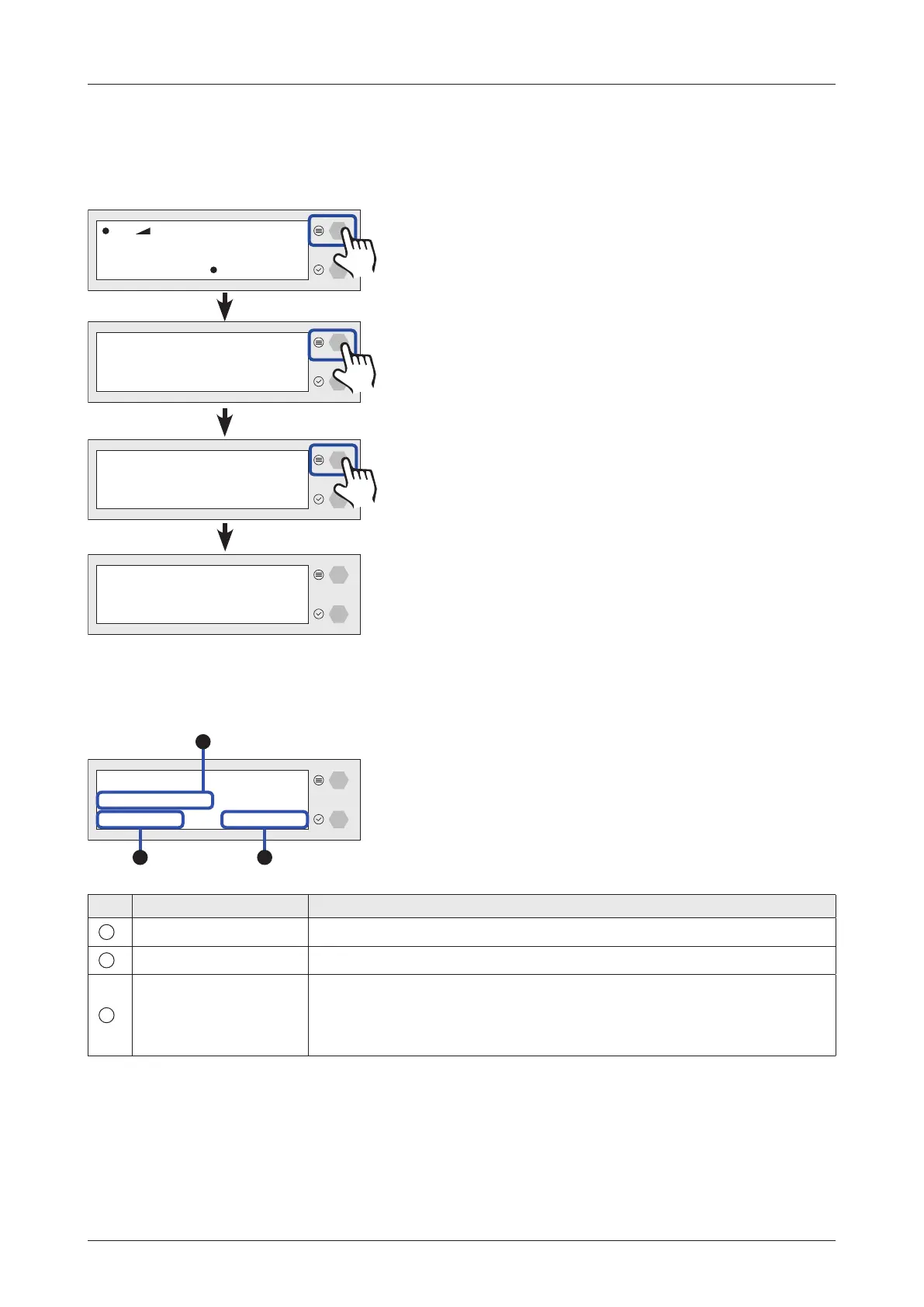

Interface Information
Displays the modem/heading type in use and the network connection status.
INTERFACE
MODEM: IDIRECT-AMIP
HEADING: NONE NETWORK: 1-3-
PRODUCT : XXXXXXX
ANT: V0918070001 VER 1.00/1.00
ACU: V0918070001 VER 1.00/1.00
Press
Move Key
Press
Move Key
Press
Move Key
ü
Main Display
ü
Diagnosis Display
ü
Antenna Information Display
(The "XX..." is the model name, and the "xxxx..." is
antenna/ACU serial number. )
ü
Interface Information Display
Refer to the Interface Information.
No. Item Description
1
MODEM Displays the modem type in use. (IDIRECT-AMIP)
2
HEADING Displays the heading type in use (NONE, NMEA0183, STATIC, NMEA2000).
3
NETWORK
Displays the network connection status with the ACU.
• An example of network result: 1-3-
- ' - ' : the network is not connected.
- ' 1~4 ' : the number (1~4) of connected ACU port to network.
INTERFACE
MODEM: IDIRECT-AMIP
HEADING: NONE NETWORK: 1-3-
2 3
1
To Next Page
