Operating BDT
Startup

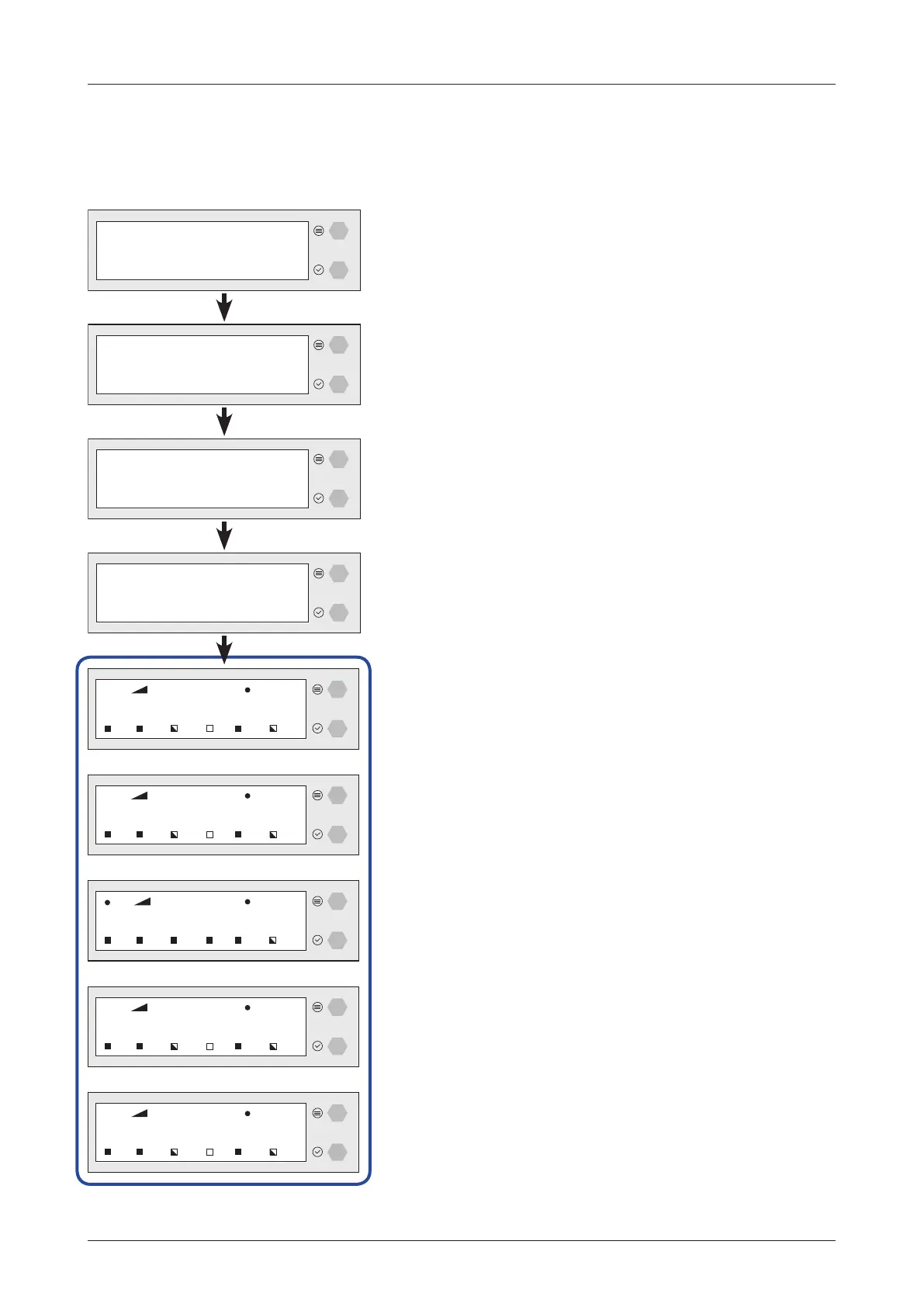

With the system is installed and power is applied, the BDT display will show the following sequence.
Intellian XXXXXXX
EL INITIALIZE
ANTENNA INFO
AZ INITIALIZE
ü Startup
("Intellian XX..." will appear. The "XX..." is the model name.)
ü Initialize Antenna Information
ü Initialize Elevation Angle
ü Initialize Azimuth Angle
ü Antenna's Status
(in Search 1 (Global Search), Search 3 (Local Search),
Tracking, Beam Switching, Blocking)
SNR HDG:120.4
GPS:
A P
SEARCH 1 128.0 E
CM STS NET TX RX1 RX2
SNR HDG:120.4
GPS:
A P
TRACKING 128.0 E
CM STS NET TX RX1 RX2
SNR HDG:120.4
GPS:
A P
SEARCH 3 128.0 E
CM STS NET TX RX1 RX2
SNR HDG:120.4
GPS:
A P
BEAM S/W 128.0 E
CM STS NET TX RX1 RX2
SNR HDG:120.4
GPS:
A P
BLOCKING 128.0 E
CM STS NET TX RX1 RX2
