Intellian GX100NX User Manual

43
Installing Below Deck Unit (BDU)

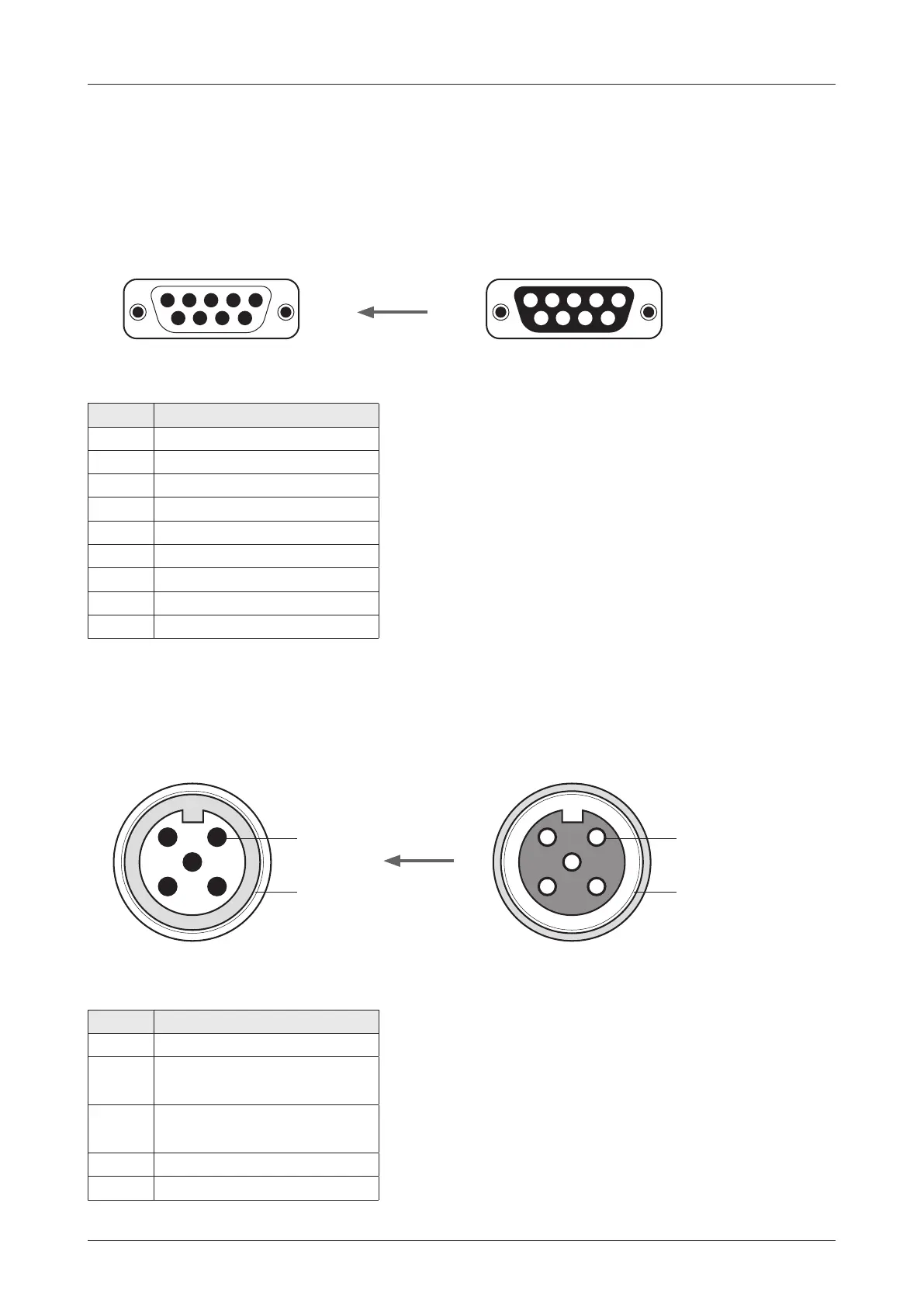

BDT Connector Pinouts Guide
The BDT connector pins and their corresponding descriptions are shown in the gure and table.
12345
6789
54321
9876
D-Sub 9 Pin: PC I/F
(Male Connector Type)
12345
6789
54321
9876
D-Sub 9 Pin
(Female Connector Type)
Below Deck Termial (BDT):
Pin Signal
1 NC
2 DBG RX (iARM)
3 DBG TX (iARM)
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
RS232 Connector (iARM Interface)
Cable Connector:
5
4
3
2
1
Pins
Female Male
Connector
Threads
5
3
4
1
2
Sockets
Connector
Threads
5
4
3
2
1
Pins
Female Male
Connector
Threads
5
3
4
1
2
Sockets
Connector
Threads
NMEA 2000 Connector
NMEA 2000 Connector
(Male Connector Type)
NMEA 2000 Connector
(Female Connector Type)
Below Deck Termial (BDT):
Pin Signal
1 Shield
2
NET-S,
(power supply positive, +V)
3
NET-C,
(power supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Cable Connector:
