Intellian GX100NX User Manual

69
Operating ACU (Optional)
Startup

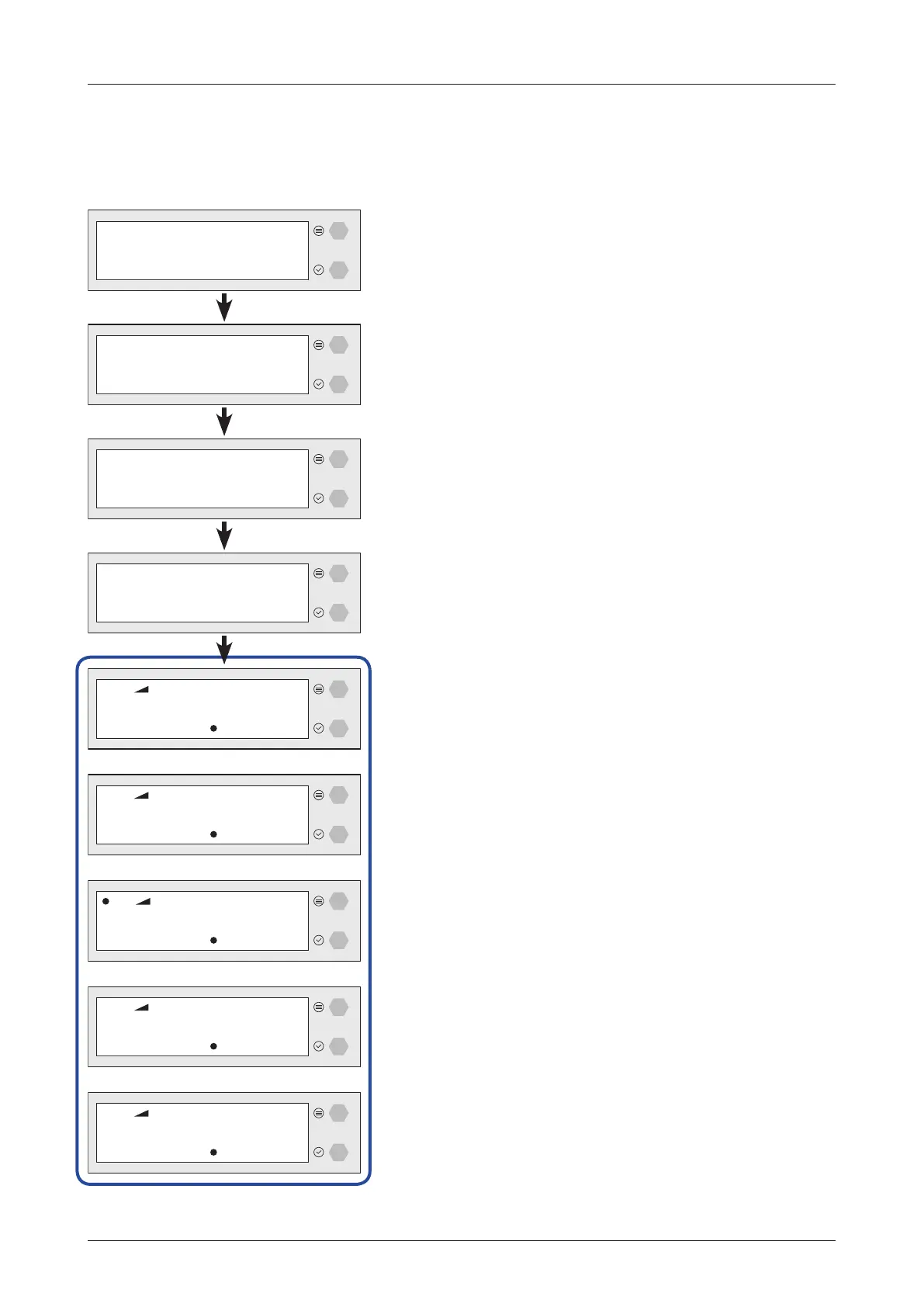

With the system is installed and power is applied, the ACU display will show the following sequence.
Intellian XXXXXXX
EL INITIALIZE
ANTENNA INFO
AZ INITIALIZE
ü Startup
("Intellian XX..." will appear. The "XX..." is the model name.)
ü Initialize Antenna Information
ü Initialize Elevation Angle
ü Initialize Azimuth Angle
ü Antenna's Status
(in Search 1 (Global Search), Search 3 (Local Search),
Tracking, Beam Switching, Blocking)
SNR F:20.119/18.250 RX:L TX:R
SEARCH 1 128.0 E
HDG:120.4
GPS:
A S
SNR F:20.119/18.250 RX:L TX:R
TRACKING 128.0 E
HDG:120.4
GPS:
A S
SNR F:20.119/18.250 RX:L TX:R
BEAM S/W 128.0 E
HDG:120.4
GPS:
A S
SNR F:20.119/18.250 RX:L TX:R
SEARCH 3 128.0 E
HDG:120.4
GPS:
A S
SNR F:20.119/18.250 RX:L TX:R
BLOCKING 128.0 E
HDG:120.4
GPS:
A S

Intellian GX100NX Specifications

General

Brand	Intellian
Model	GX100NX
Category	Antenna
Language	English
