Installing Above Deck Unit (ADU)

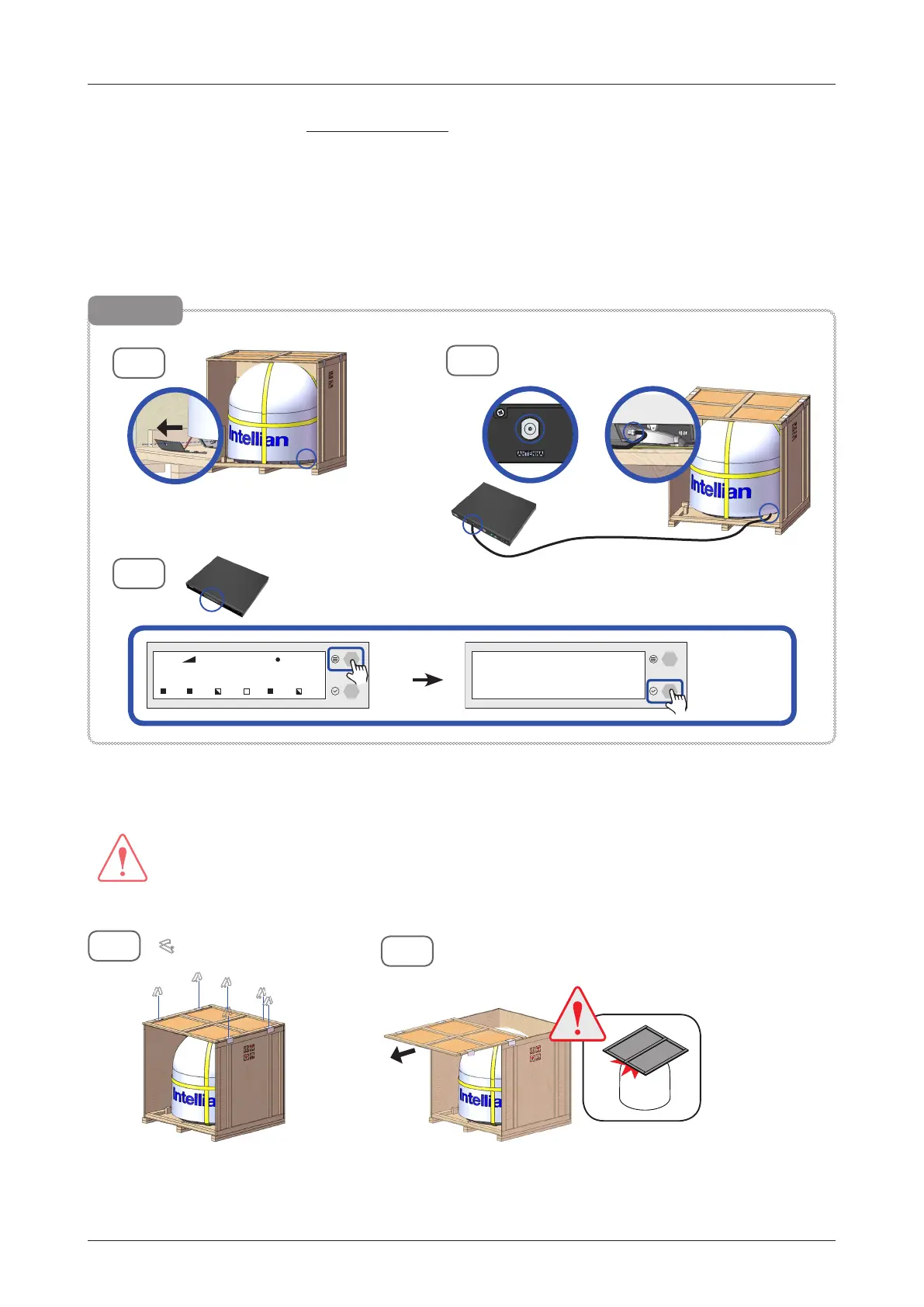

3. Running Diagnostic Tests: This step is optional. After removing one of the side panels, you can run

the diagnostic tests easily to verify the condition of the antenna. First, prepare the "RF Cable (Customer

Supplied)" to connect the antenna and the BDT.

3-1. Remove the M4x15L Wrench Bolt by using the wrench set then open the cable entry cover.

3-2. Connect the "RF Cable

(Customer Supplied)

" from the "ANTENNA" connector on the rear of the BDT to

the "RF Connector" inside cable entry of radome (Antenna).

3-3. Execute diagnostic tests (Full Diagnosis Test) via BDT and check the real-time diagnosis result.

4. Remove the clips (6 EA) on the top panel. Detach the top panel by carefully pulling it as shown in the

picture.

WARNING

The side brackets at the edge of the top panel secure the side panels and top panel in position. When

pulling the top panel, ensure that the top panel doesn't fall on the radome.

4-1

: 6 EA

3-1

3-3

3-2

RF Cable (Customer Supplied)

Cable Entry Cover

Optional

DIAGNOSIS

DIAG ALL

Press

Select Key

SNR HDG:120.4

GPS:

A P

SEARCH 1 128.0 E

CM STS NET TX RX1 RX2

Press

Move Key

4-2

Intellian GX100NX User Manual
