A-3
Appendix A. Starting Dual Antenna System (Optional)
2
1
3

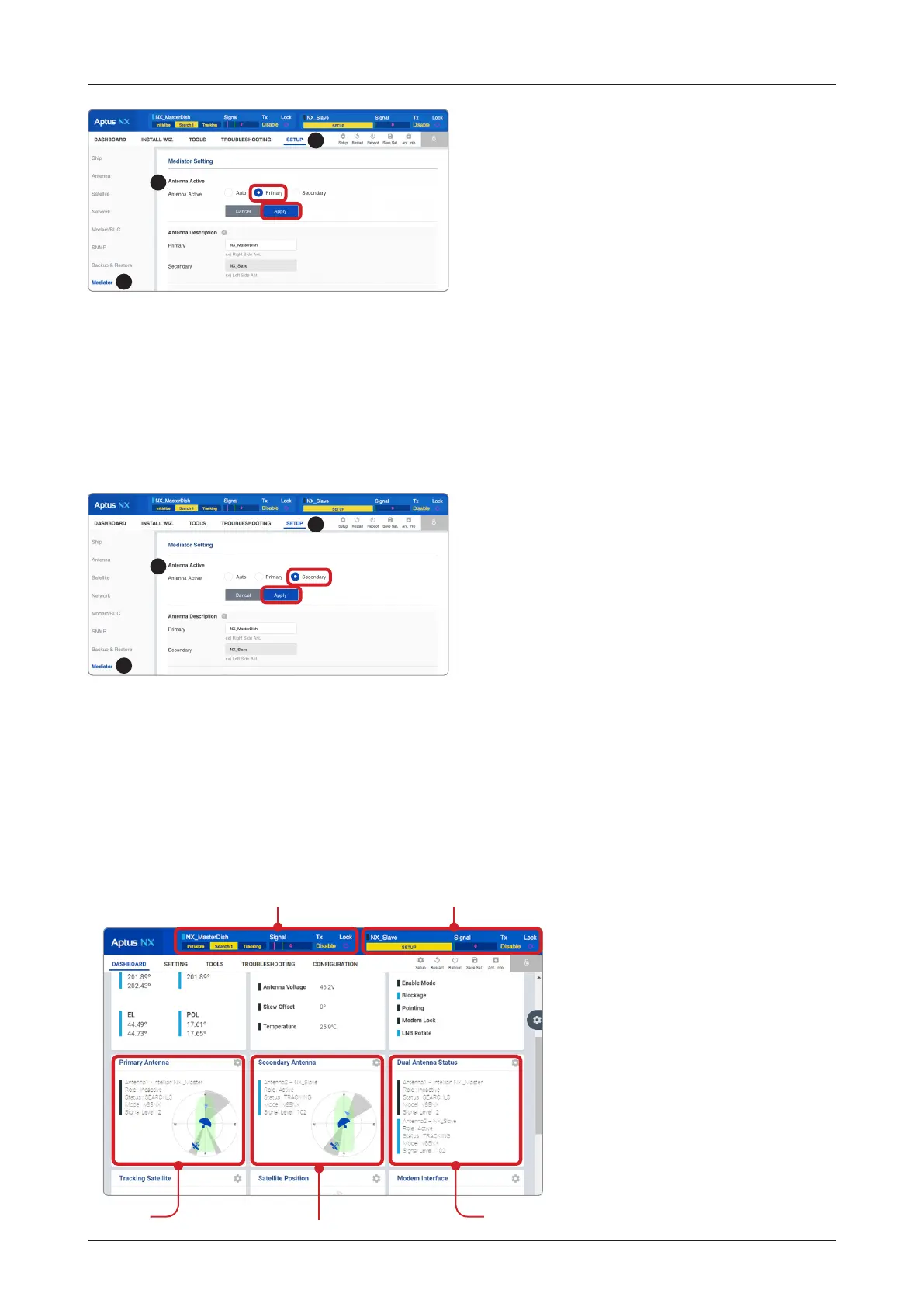

3.1.2 Performing Install Wizard
Perform the Install Wizard process. Refer to the "Starting Install Wizard" on page 48 for more details.
3.2 Performing Install Wizard for Secondary Antenna System
To perform the Install Wizard of the secondary antenna system, follow the steps below.
3.2.1 Assigning Active Antenna
Select the "Secondary" in the Antenna Active menu. Click the "Apply" button to apply the settings to the
system.
2
1
3
3.2.2 Performing Install Wizard
Perform the Install Wizard process. Refer to the "Starting Install Wizard" on page 48 for more details. Then
perform the "iARM Save & Reboot" on page 85.
4. Monitoring Dual Antenna System Status
You can monitor the status of Dual Antenna System via AptusNX. The information for two antennas (Primary
and Secondary Antenna) is displayed on the Top Menu and the three panels (Dual Antenna Status, Primary
Antenna and Secondary Antenna) is displayed on the dashboard screen.
Dual Antenna
Status
Secondary Antenna
Primary Antenna Info. Secondary Antenna Info.
Primary
Antenna
