TruVision DVR 44HD User Manual 137
Appendix D
Connect a PTZ dome
camera
Any PTZ dome camera can be controlled as the recorder is doing the PTZ protocol translation.
However, this setup provides only limited dome configuration. See Figure 4 below for how to
connect a PTZ camera to the recorder.

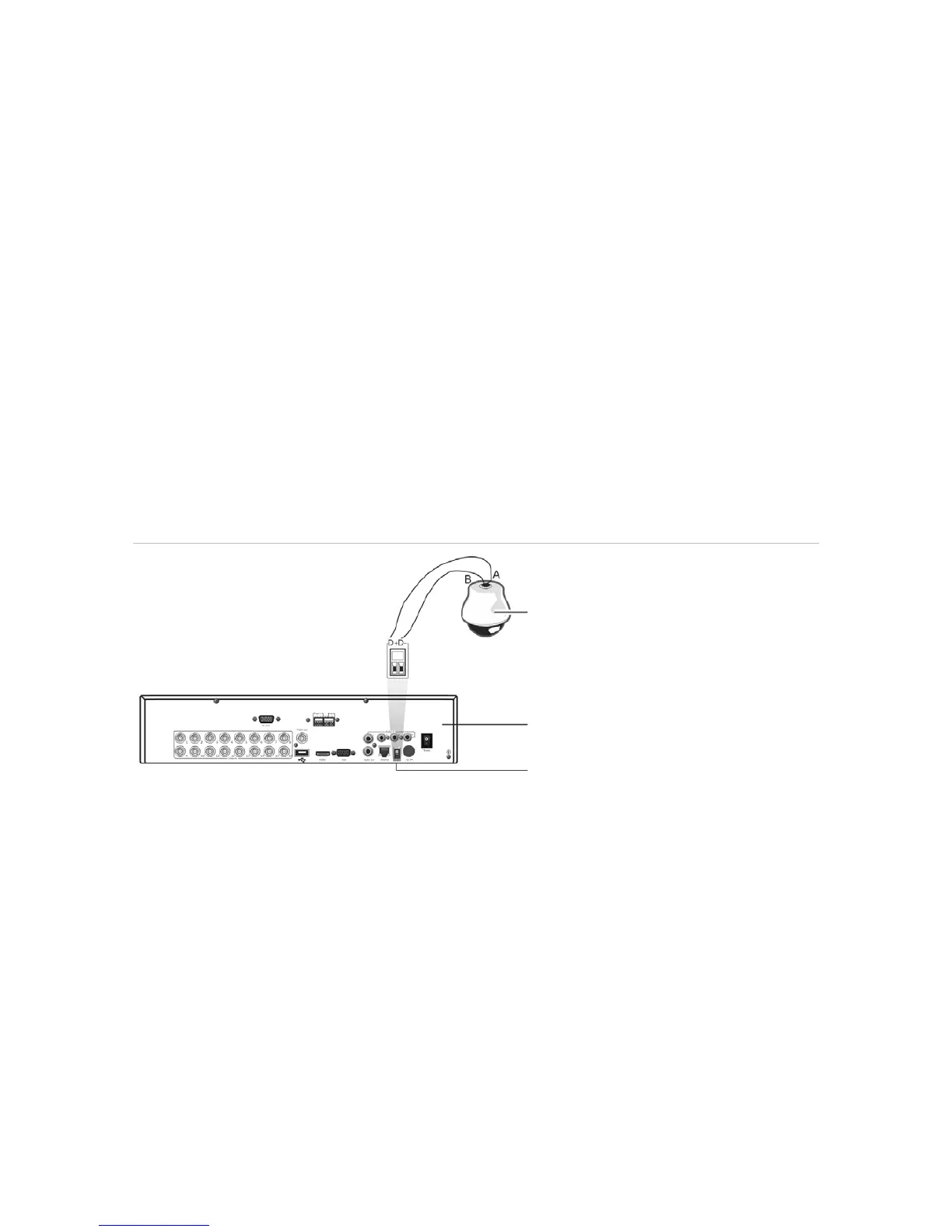

Figure 37: Connecting a PTZ dome camera to the recorder for control over the network
Dome camera
Recorder back panel
RS-485 port
Configuring the PTZ protocols for Interlogix
cameras
Before the PTZ dome cameras are assembled in their housings, set their protocol and address
DIP switches for the recorder. See Table 20 on page 138 for different Interlogix PTZ dome
camera settings.
If you are using PTZ dome cameras from another company, please refer to their configuration
instructions.
