21BAppendix D: Connect a PTZ dome camera
TruVision DVR 44HD User Manual 139
Camera
Switch setting

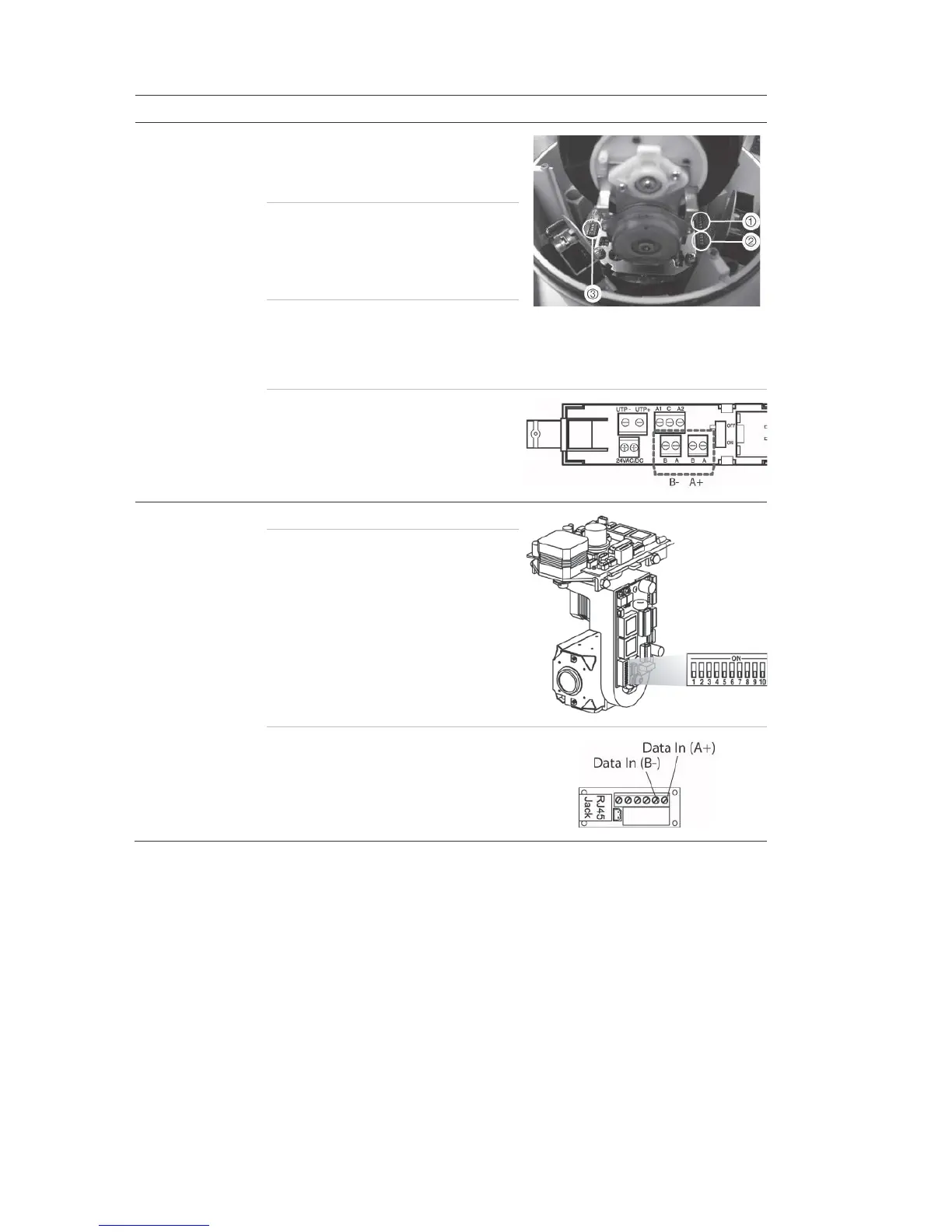

TruVision Dome 16X
PTZ
Protocol switches:
• RS-485 (on recorder):
0111
1. Address switches; 2. Baud
switches;
3. Protocol switches
• RS-422 (on I/O box): 1111
Address switches: Select the
camera ID
DIP switch
address as
required.
Baud rate: 0000 =
9600 bps
0011 =
4800 bps
RS-422/RS-485 data connector:
CyberDome
Protocol switches: NA
Address switches: Select the
camera ID
DIP switch
address as
required.
RS-485 data connector:
