108 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 8—Liner Takeup Unit
8.1 Description
The liner takeup unit is a factory installed option that is used for peel-off
(self-strip) operation. Peel-off means that self-adhesive labels are automati-
cally separated from the liner (backing paper) after printing and the liner
is wound up on a hub inside the printer’s media compartment. Peel-off
operation cannot be combined with Quick-Load guides. The rewind unit
is made up by the following main parts:
• The takeup hub assy (see Chapter 8.2 for details)
• The timing belt (fi tted in all printers)
• The guide shaft

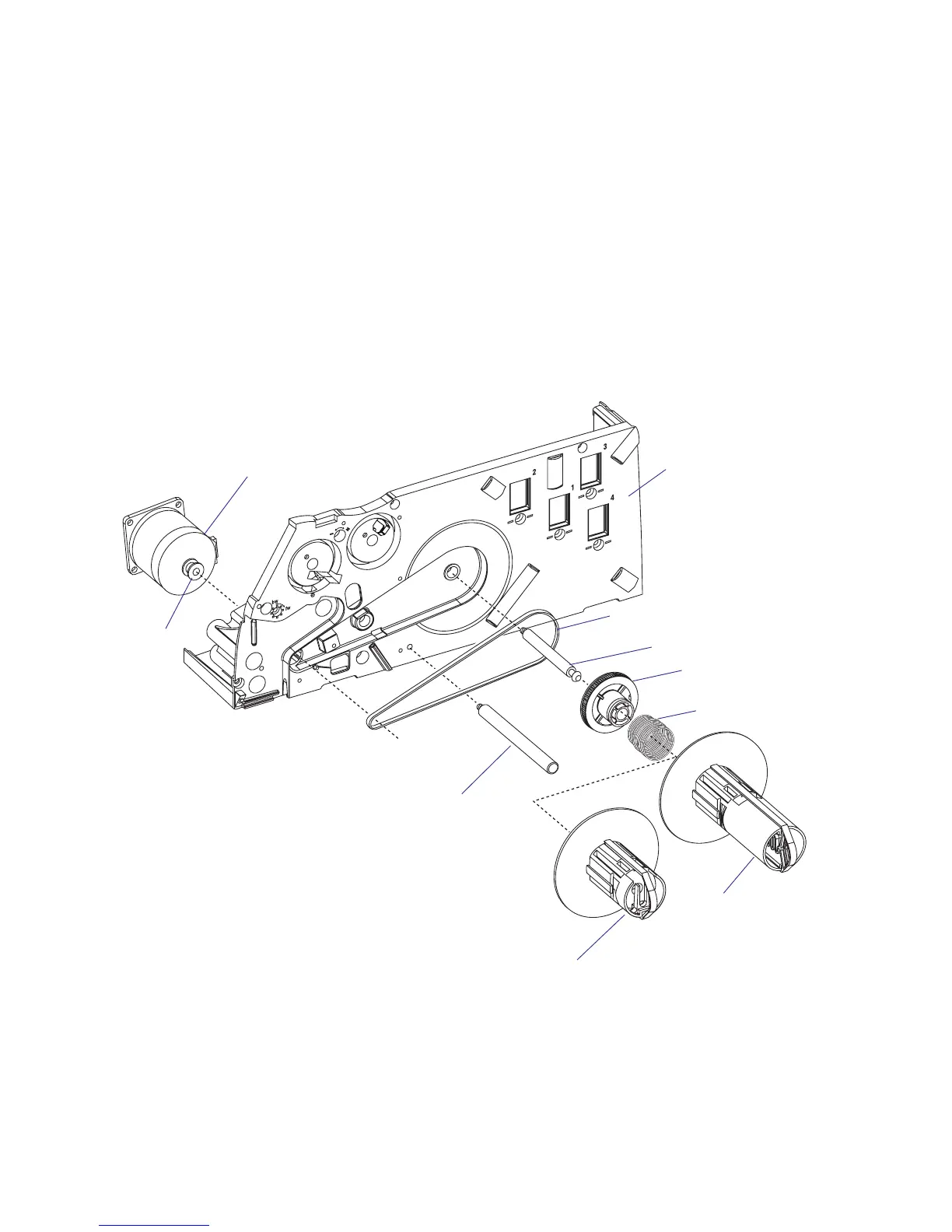

Center section
Stepper motor
Pulley
Pulley
Belt
Spring clutch
Takeup hub
(EasyCoder PF4i and
EasyCoder PF4i Com-
pact Industrial)
Shaft
Guide shaft
Takeup hub
(EasyCoder PF2i)

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
