Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 129
Chapter 11—Electronics Compartment
CPU board
Connect console pcb here
Stepper motor Platen roller
belt and pulley
Liner drive roller
belt and pulley
Power supply
(behind CPU board)
Headlift
mechanism

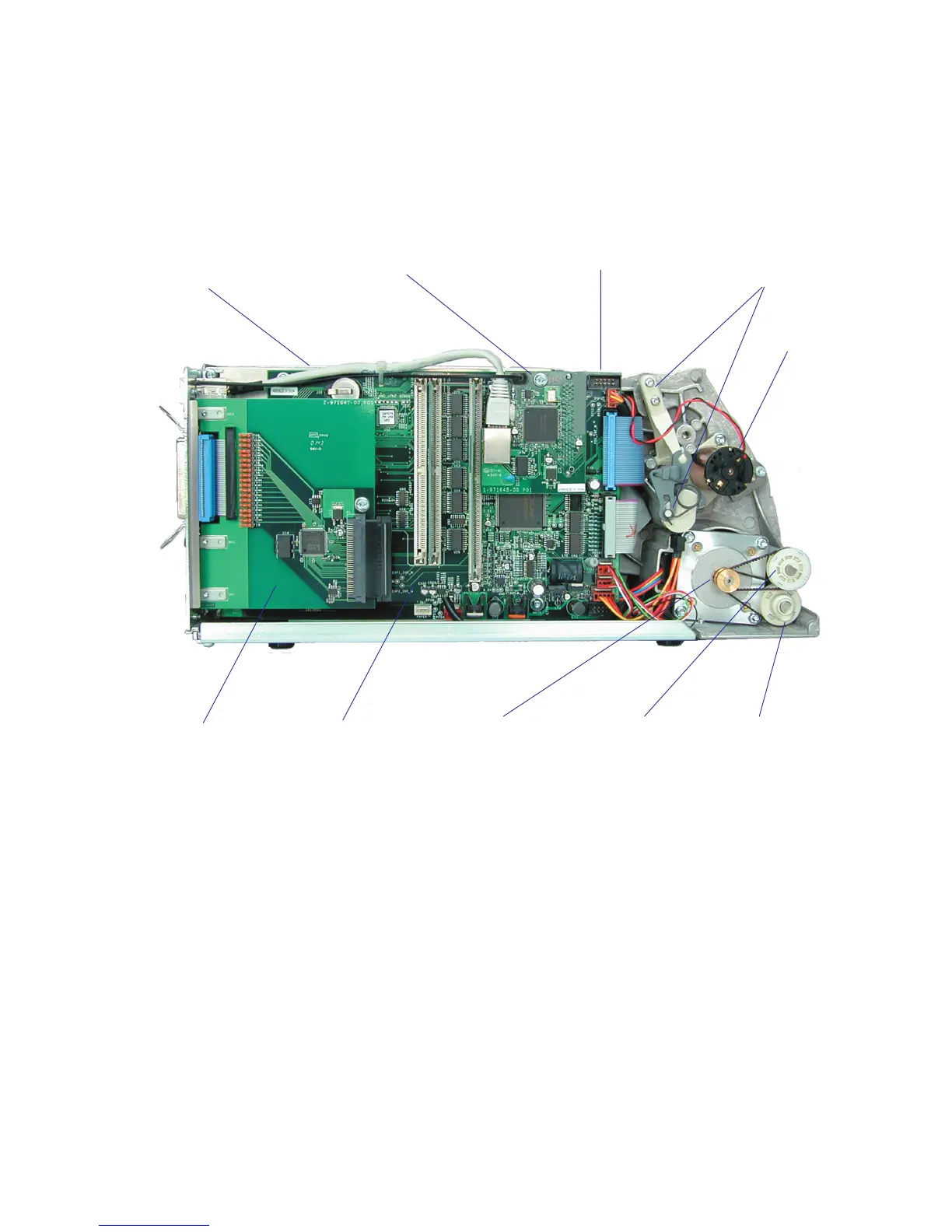

11.3 Main Parts
This is what you may see when you remove the front/left-hand cover from
an EasyCoder PF4i or PF4i Compact Industrial printer. The EasyCoder
PF2i looks the same with the exception that the transfer ribbon mecha-
nism is optional.
Ribbon
motor
Optional
interface board
Optional EasyLAN board

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
