118 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 10—Paper Cutter
10.1 Description
The cutter is a factory-installed or fi eld-installable option for the Easy-
Coder PF4i and PF4i Compact Industrial. It does not fi t the EasyCoder
PF2i. The cutter automatically cuts off the media after printing according
to instructions in the controlling fi rmware. The cut off portions of media
are presented at the front of the cutter and can be collected on a remove-
able tray.
The cutter can be tilted forward to facilitate media load. As a safety mea-
sure, the cutter can only operate when being completely closed.
The cutter prevents an optional label taken sensor from working, even if it
not necessary to remove it before fi tting the cutter.
The cutter is primarily intended to cut paper-based media in the form of
continuous stock. It is also possible to cut through the liner between labels,
but be careful not to cut through the labels themselves, because the adhe-
sive will stick to the cutting blade and may cause malfunction.
Avoid cutting soft plastic-based media.
Minimum media thickness: 78µm
Maximum media thickness: 175µm
For measures, refer to Chapters 1.6 and 1.7.
The weight of the cutter is 1.16 kg (2.56 lb).

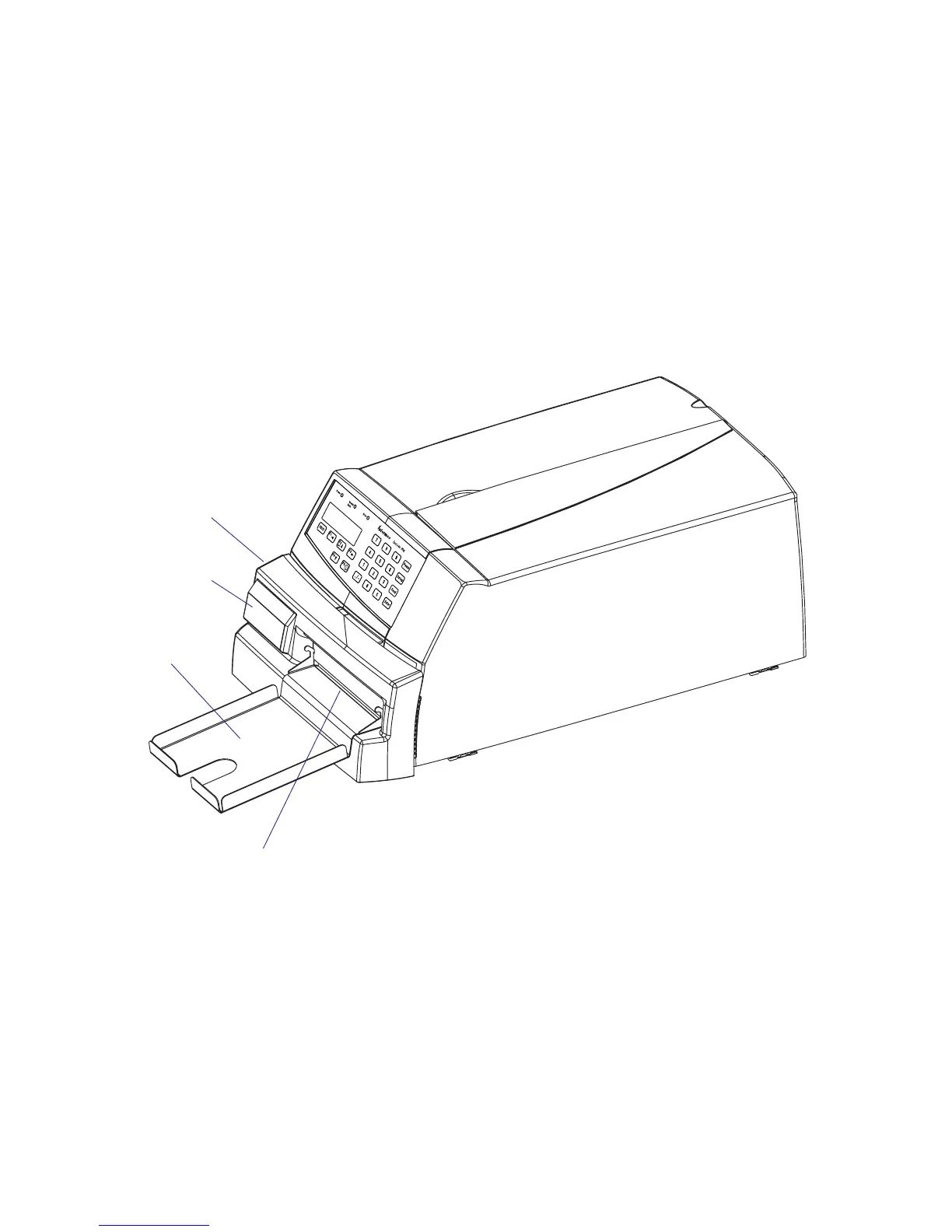

Cutter
Outfeed slot
Removable tray
“Print” button
