Intermec EasyCoder PF4i Service Manual

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 181
Chapter 14—Interfaces
14.7 Double Serial Interface Board (not IPL)
Description
The Double Serial Interface Board (DUART) is a Fingerprint-only
optional device for EasyCoder PF2i, PF4i, and PF4i Compact Industrial.
It provides these printers with two extra serial interfaces.
"uart2:"
This interface can be fi tted with straps and circuits for one of the following
alternatives:
• RS-232 non-isolated
• RS-422 isolated, full duplex
• RS-485 isolated, half duplex
"uart3:"
This interface can be fi tted with straps and circuits for one of the following
alternatives:
• RS-232 non-isolated
• RS-422 non isolated, full duplex
• 20 mA Current Loop.
The Double Serial Interface Kit contains:
• One interface board fi tted for RS-232 on both ports.
• One hexagonal spacer (not used with EasyCoder PF2/4i-series)
• Two fl at cables (only one is used with EasyCoder PF2/4i-series)
• One Installation Instruction booklet
Circuits for modifying the board for RS-422 non-isolated, RS-422 iso-
lated, RS-485 isolated, or 20 mA current loop can be bought separately
from Intermec.

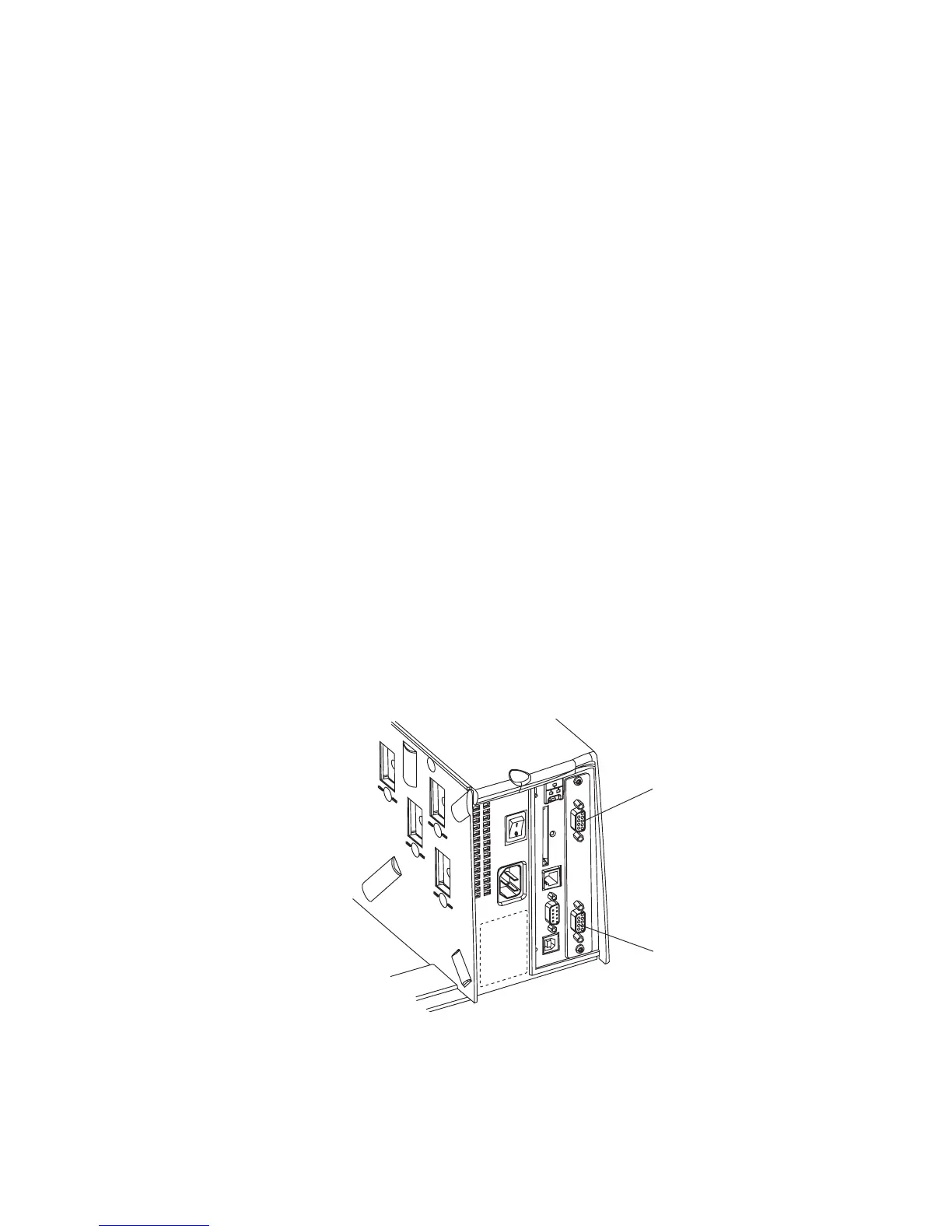

"uart3:"
(DB-9pin socket)
"uart2:"
(DB-9pin socket)

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
