Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 171
Chapter 14—Interfaces
14.6 Serial/Industrial Interface Board (not IPL)
Description
The Industrial/Serial Interface Board is a Fingerprint-only optional device
for EasyCoder PF2i, PF4i, and PF4i Compact Industrial. It provides these
printers with two extra interfaces.
The Serial/Industrial Interface kit contains:
• One Industrial Interface Board fi tted with straps and circuits for RS-232
• One hexagonal spacer (not used with EasyCoder PF2/4i-series)
• Two fl at cables (only one is used with EasyCoder PF2/4i-series)
• One Installation Instruction booklet
Serial Interface ("uart2:")
This interface contains one serial communication port ("uart2:") which
can be confi gured for one of the following alternatives:
• RS-232 non-isolated
• RS-422 isolated, full duplex (reconfi guration required)
• RS-485 isolated, half duplex (reconfi guration required)
Selection of type of serial interface is decided by fi tting various types of
socket-mounted driver circuits and straps.
Industrial Interface
This interface contains eight digital IN and eight digital OUT ports with
optocouplers, plus four OUT ports with relays.
The status of all ports can be read by means of PORTIN functions and
the OUT ports can be set using PORTOUT ON/OFF statements (see
Intermec Fingerprint v8.xx, Programmer's Reference Manual).Thus, it is pos-
sible to design Intermec Fingerprint application programs which control
not only the printer but also various external devices, for example in a
production line. The digital IN ports can read the status of various sensors
and the program can, for example, switch control lamps on or off, open
or close gates, and start or stop conveyor belts accordingly using the relays
and the digital OUT ports.

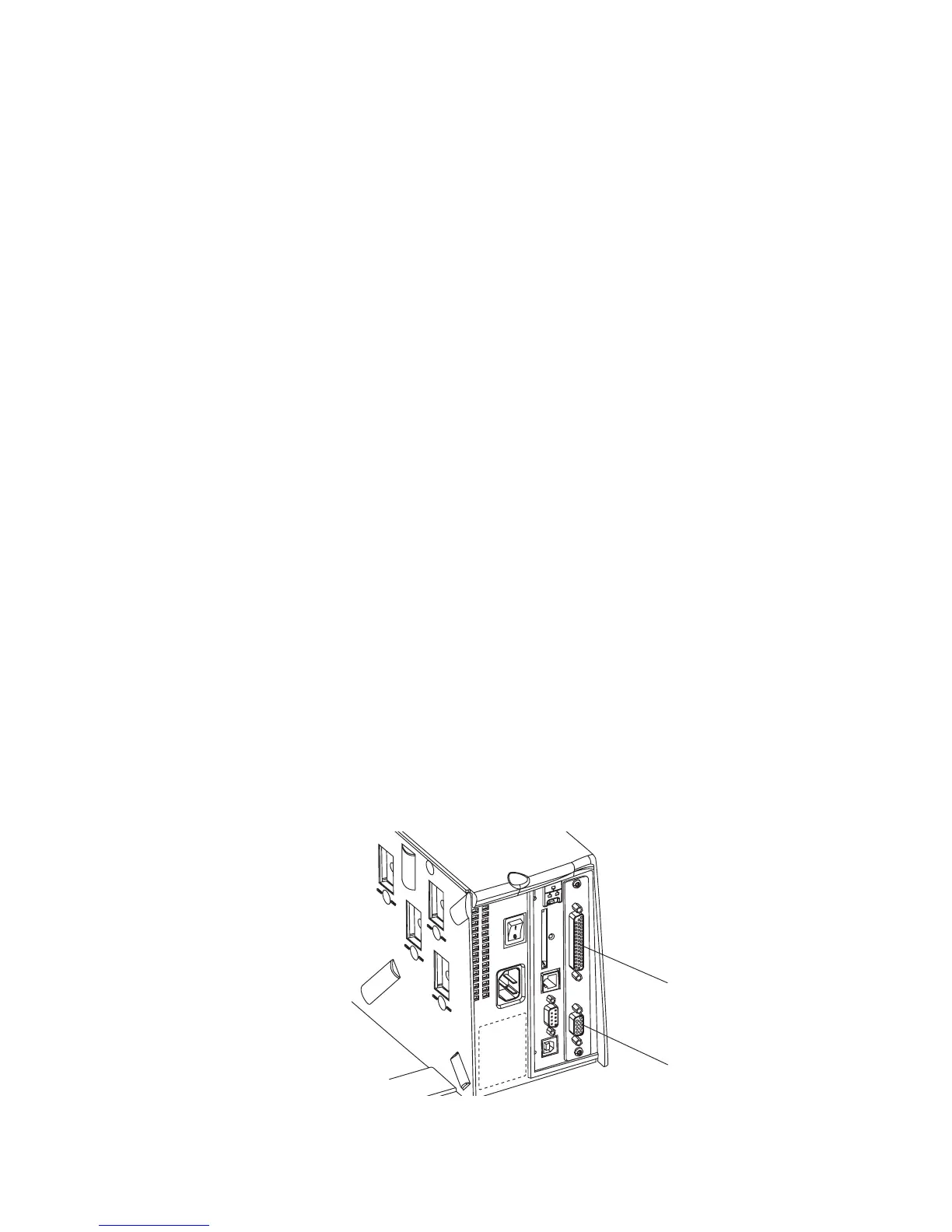

Industrial interface
(DB-44pin socket)
Serial interface
"uart2:"
(DB-9pin socket)

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
