Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 47
Chapter 3—Covers and Doors

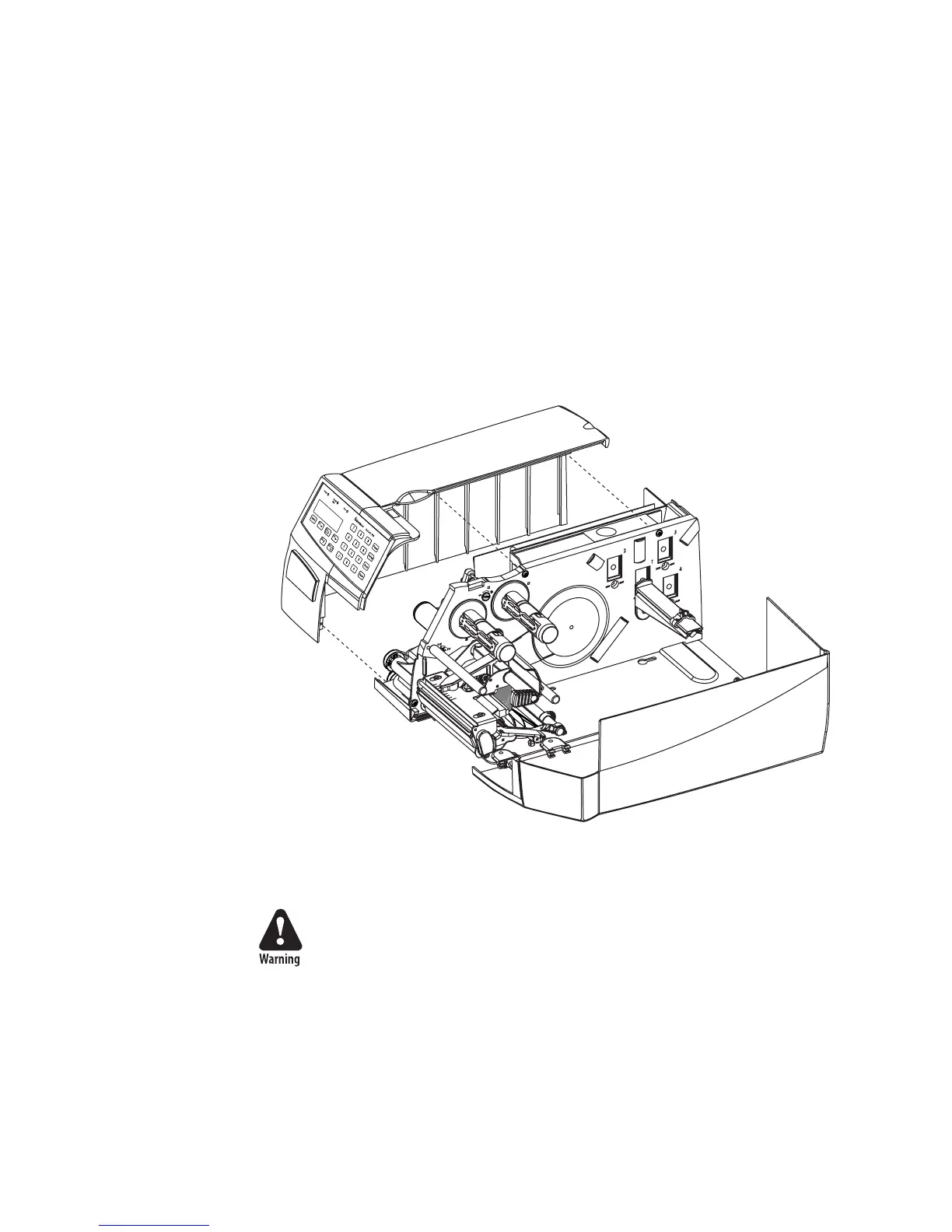

3.2 Front and Left-Hand Cover
All Models
The front/left-hand cover is made of magnesium and is fi tted with a
number of user interface devices, see Chapter 2.
Removing the front/left-hand cover gives access to:
• The electronics incl. CPU board, AC connection, power supply, and any
optional interface pcb.
• The motor, belts, and pulleys of the media feed and the optional liner
takeup unit and ribbon feed motor.
The left-hand cover plate is fi tted to the center section using three #T20
Torx screws accessible from the media compartment.
To remove the cover, proceed this way:
• Disconnect the power cord and open the right-hand door.
The electronic compartment contains wires and components with
dangerous voltage (up to 380V). Make sure that the printer is switched
off and the power cord is disconnected before the left-hand cover is
removed.
• Using a #T20 Torx screwdriver, remove the three screws and lift the
cover up so it disengages the bottom plate.
• Swing out the rear part of the cover so you can disconnect the console
cable from the CPU board.
• Put the cover aside on a soft cloth or similar to avoid scratches.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
