Intermec EasyCoder PF4i Service Manual

68 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 6—Transfer Ribbon Mechanism
6.5 Ribbon Motor
Description
The ribbon motor assy consists of a 24 VDC motor with a gearbox. The
gearbox engages the cogs along the rim of the ribbon rewind bobbin and
rotates it in either direction according to the polarity of the power.
The power comes to the ribbon motor via a cable connected to P6 on the
Power Supply Unit.
The ribbon motor assembly is a complete unit and should not be taken
apart. It is fi tted to the electronics compartment side of the center section
using three #T20 Torx screws.

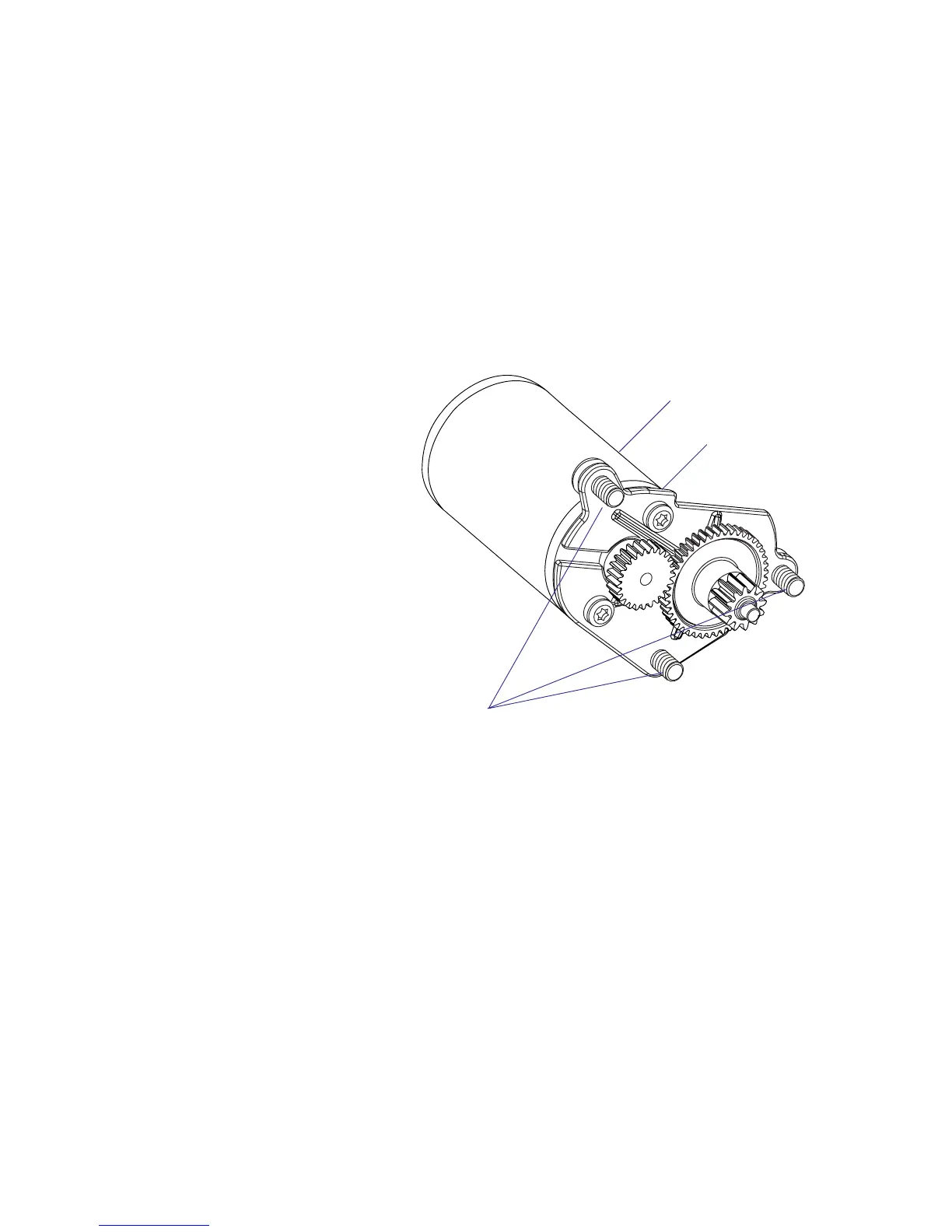

DC motor
Gearbox
#T20 Torx screws (×3)

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
