Intermec EasyCoder PF4i Service Manual

128 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 11—Electronics Compartment
11.1 Introduction
The Electronics Compartment is off limits to the normal user, but for the
authorized service technician, it contains a number of parts of great inter-
est:
• The stepper motor and timing belts of the platen and liner drive rollers.
• The ribbon feed motor.
• The headlift mechanism and sensor.
• The CPU board.
• The power supply unit.
• Optionally one extra interface board and/or one EasyLAN board.
11.2 Accessing the Electronics Compartment
To gain access to the electronics compartment, remove the front/left-hand
cover as described in Chapter 3.2. To completely remove the cover, you
will need to disconnect the cable to the console pcb from J50 on the CPU
board.
Power Supply
High voltage!
#T20 Torx
screws
(x3)

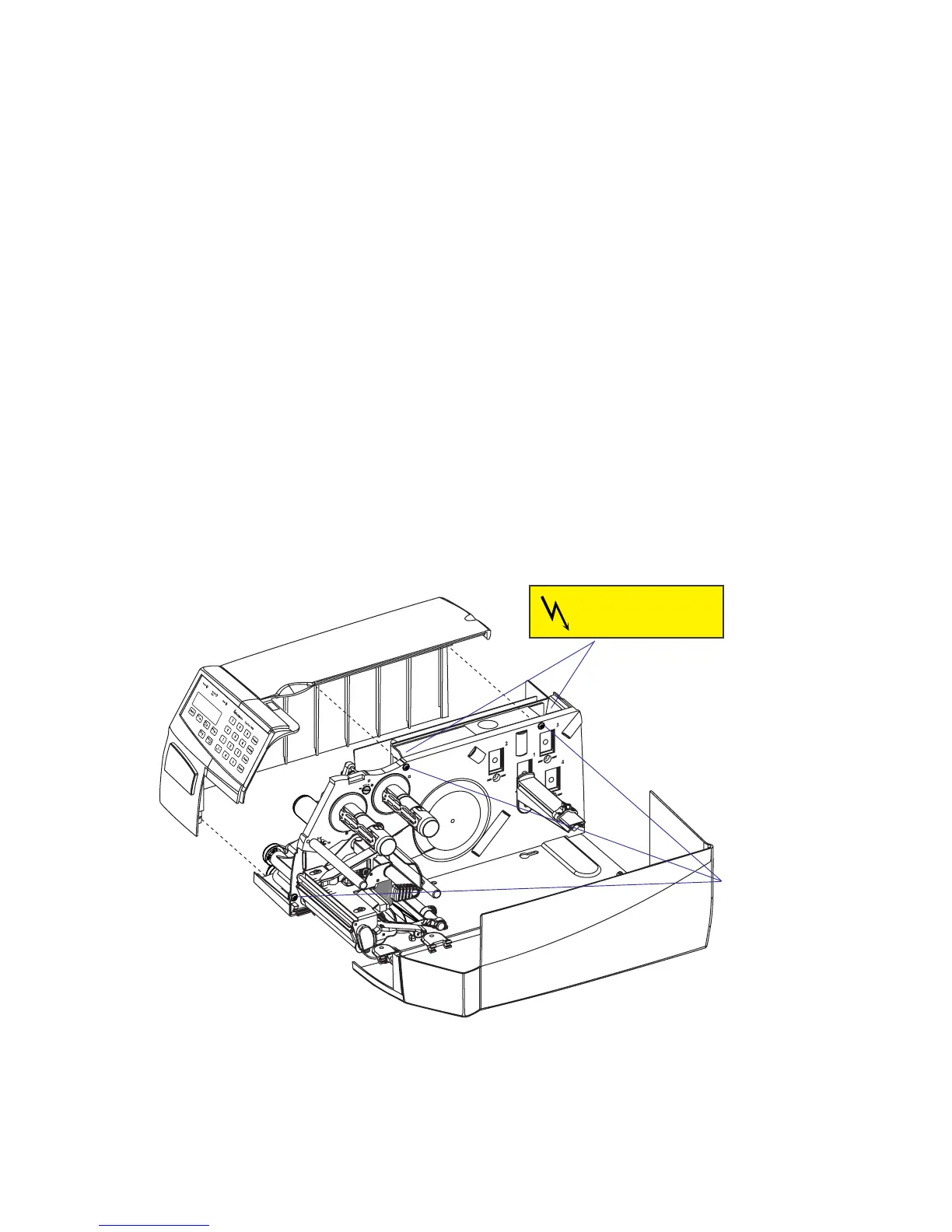

The illustration shows an EasyCoder PF4i, but the same principles apply to all EasyCoder PF-series printers.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
