Intermec EasyCoder PF4i Service Manual

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 69
Chapter 6—Transfer Ribbon Mechanism
6.6 Front Ribbon Break Shaft
Description
The front ribbon break shaft serves two purposes: to keep the ribbon away
from the print mechanism and to compensate for any lack of parallelity
in the other parts of the ribbon mechanism. The shaft is screwed into a
plate inside the center section. The shaft and the plate can be tilted using
a straight-slot screw from the media compartment (also see last illustration
in Chapter 7.1).
• If the ribbon tends to slide outwards, turn the screw carefully clockwise
(fw) to move the outer end of the break shaft forward.
• If the ribbon tends to slide inwards, turn the screw carefully counter-
clockwise (bw) to move the outer end of the break shaft backward.
Before adjusting the break shaft, make sure that there is no other cause
for the wrinkling of the ribbon (see Chapter 15.12).

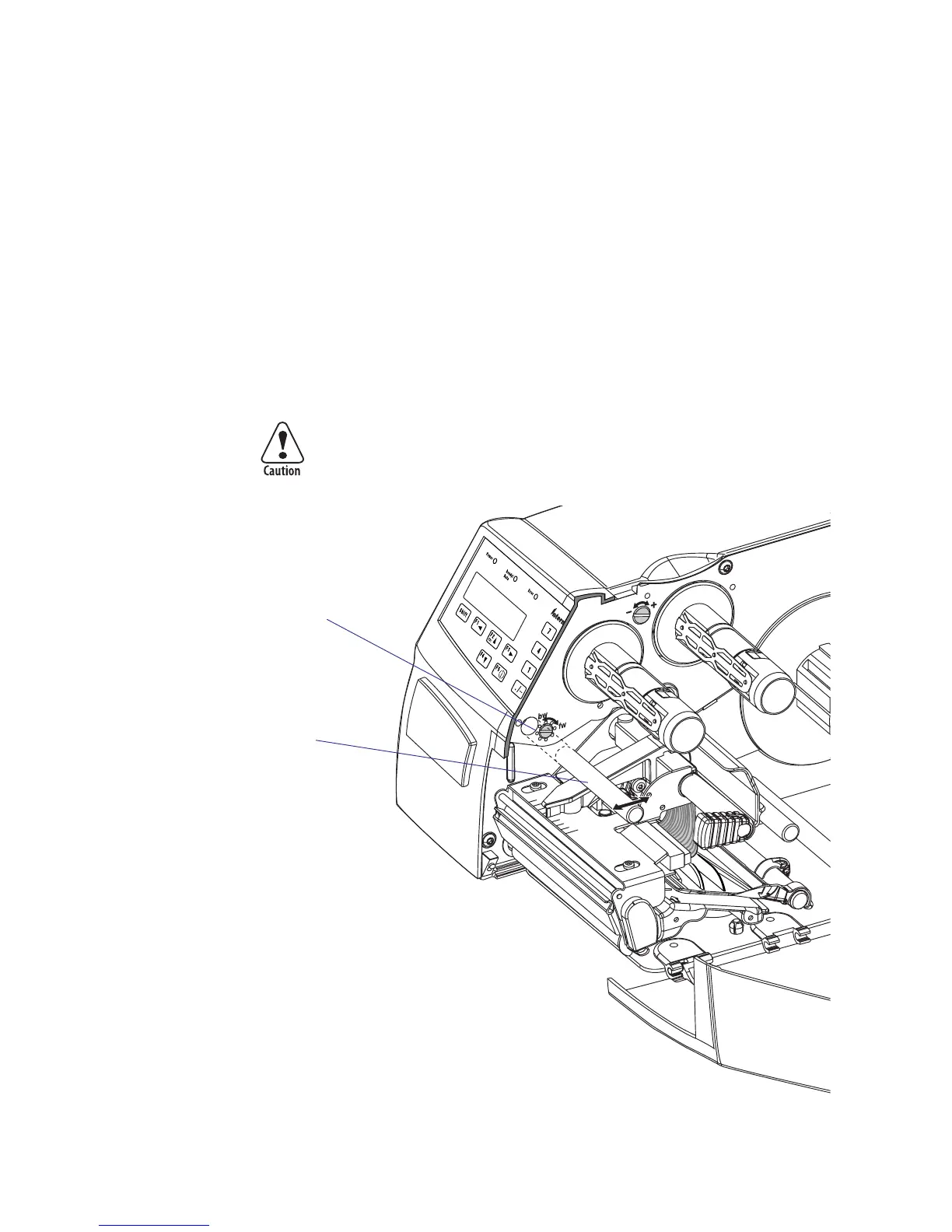

Adjustment screw
Front ribbon break shaft
EasyCoder PF4i

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
