Chapter 1—Models and Options
EasyCoder PF4i Compact Industrial
The EasyCoder PF4i Compact Industrial is a special model of Easy-
Coder PF4i that has been adapted for demanding industrial applications.
It differs from EasyCoder PF4i in having a dark-painted casing, stronger
hinges, a front door, a full metal media supply roll post, and a modifi ed
print mechanism. The EasyCoder PF4i comes either as a dedicated direct
thermal printer or a combined direct thermal/thermal transfer printer. It
has an 8 dots/mm (203.2 dpi) or an 11.81 dots/mm (300 dpi) printhead
(IPL only 8 dots/mm). It can use media up to 114.3 mm (4.5 inches) wide
and has a maximum print width of 104 mm (4.095 inches) at 8 dots/mm
or 105.7 mm (4.161 inches) at 11.81 dots/mm.
The printer runs either Intermec Fingerprint Programming Language (FP)
v8.10 (or later) or Intermec Programming Language (IPL) v2.10 or later.
Externally, the difference is visible on the keyboard overlay. Fingerprint
printers have 22 keys and IPL printers have 7 keys.
Front door

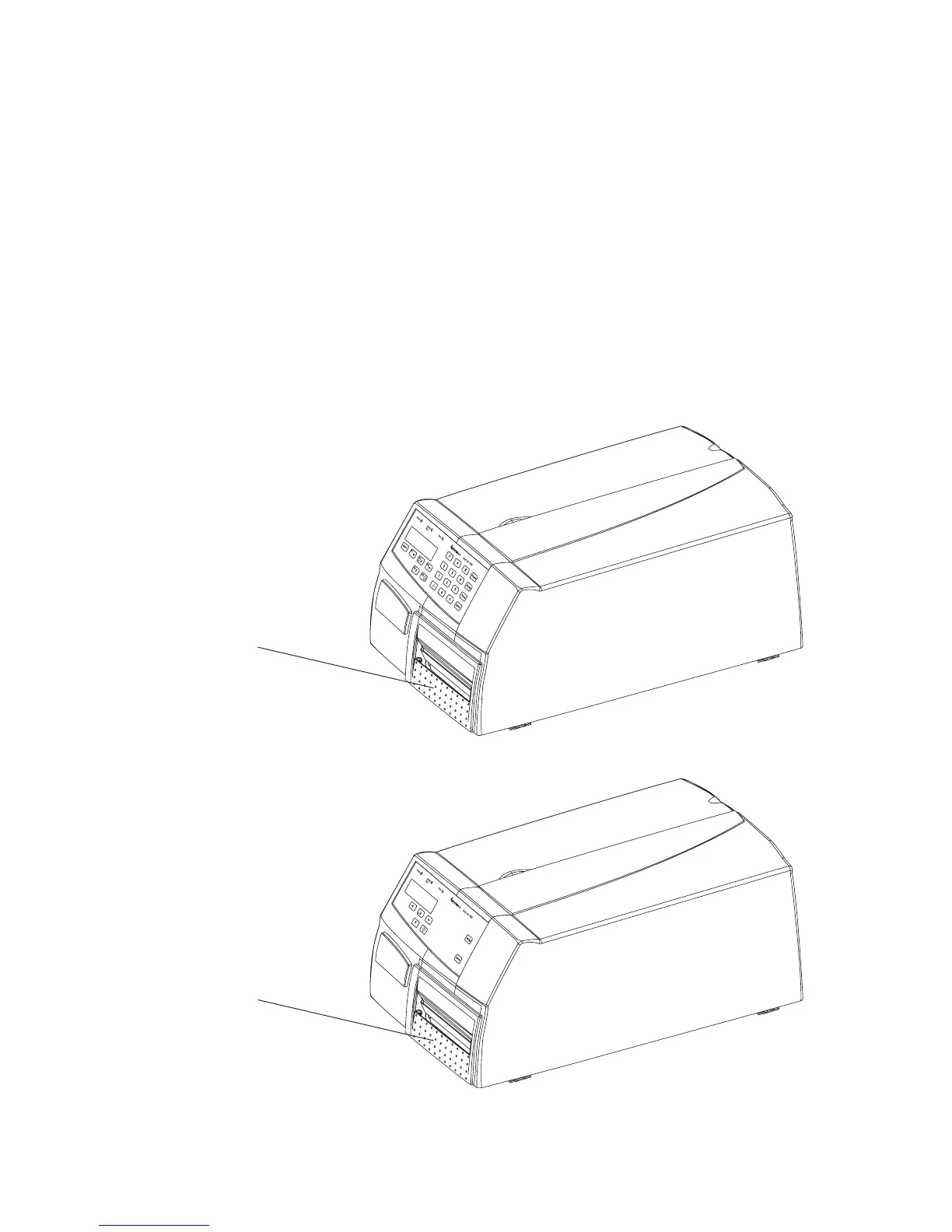

EasyCoder PF4i Compact Industrial (Fingerprint version)
EasyCoder PF4i Compact Industrial (IPL version)
Front door

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
