Intermec EasyCoder PF4i Service Manual

148 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 13—CPU Board

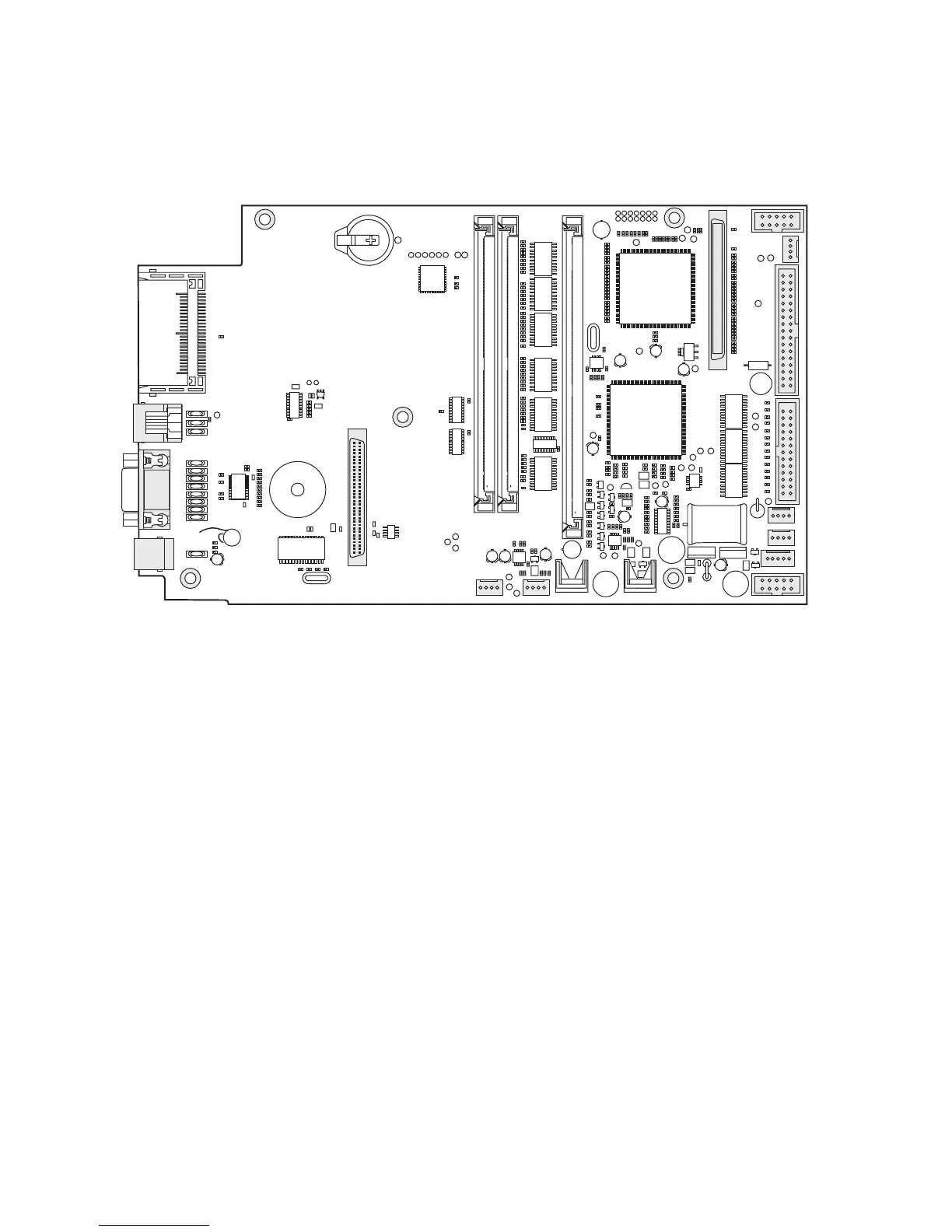

13.3 Connections
The following connectors on the CPU board are used in the printer for
communication with various devices and sensors.
Left side (from top down)
J59 Bar Code Wand (not supported by IPL)
J61 RS-232
J60 USB (not supported by IPL)
Bottom (from left to right)
J62 Expansion board(s) (optional interface boards)
J57 Paper Sensor (option, not supported by IPL)
J53 Label Taken Sensor (option)
J51 Finisher
Top (from left to right)
J84 PCI (EasyLAN interface, option)
J50 Console (keyboard, display, and print or feed/pause button)
Right side (from top down)
J56 Ribbon Low sensor
J52 Power from PSU
J40 Data to printhead
J55 LSS (gap)
J54 LSS (black mark)
J58 Headlift sensor
J59
J61
J60
P35
RS232USB
J57
J51 FINISHER
PAPE R
J53 LTS
J62
EXP BOARD
WAND
J84
J50
PCI
J56
J52
J40
J55
GAP
J54
BM
J58
HEADLIFT
PRINTHEAD POWER
CONSOLE
RIBBON
1-971630-00 PO2
J61

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
