Intermec EasyCoder PF4i Service Manual

178 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 14—Interfaces
Components
RS232: IC11, J2A
RS422: IC12, J3, J4
RS485: IC13, J1, J4*
*: IF END OF CABLE
BABA
UARTA
C40
C51
IC2
35
1
P1
C50
C34
C36
C31
68 34
C52
C60
C21 C22
C65
R26
R27
R35
R34
R33
R32
R31
R41 R42 R51 R52
R36
R37
R38
IC20
C61
C67
R21
R22
R23
R24
R25
R28
IC21
IC27
IC28
C33
C35
C66
IC3
IC22
C32
C53
C56
C57
IC4IC6
R1
R10
R18
R5
R6
R7
R8
R9
IC10
C30
C55
IC1IC5
J1
R11
R2 R3
R4
C64
C23 C24
C25 C26 C27 C28
R43 R44
R45 R46 R47
R53
R54
R55 R56 R57
IC23IC24
C62
REL3
REL4
IC25 IC26
C3C4
REL1
REL2
C1C2
R12
R13
R14
R15
IC11
R17 R16
IC13 IC12
C63
R48 R58
P2
F2 F3 F4 F5F8F7
J3J4
J2
C54
F1 F6
IC9
P3

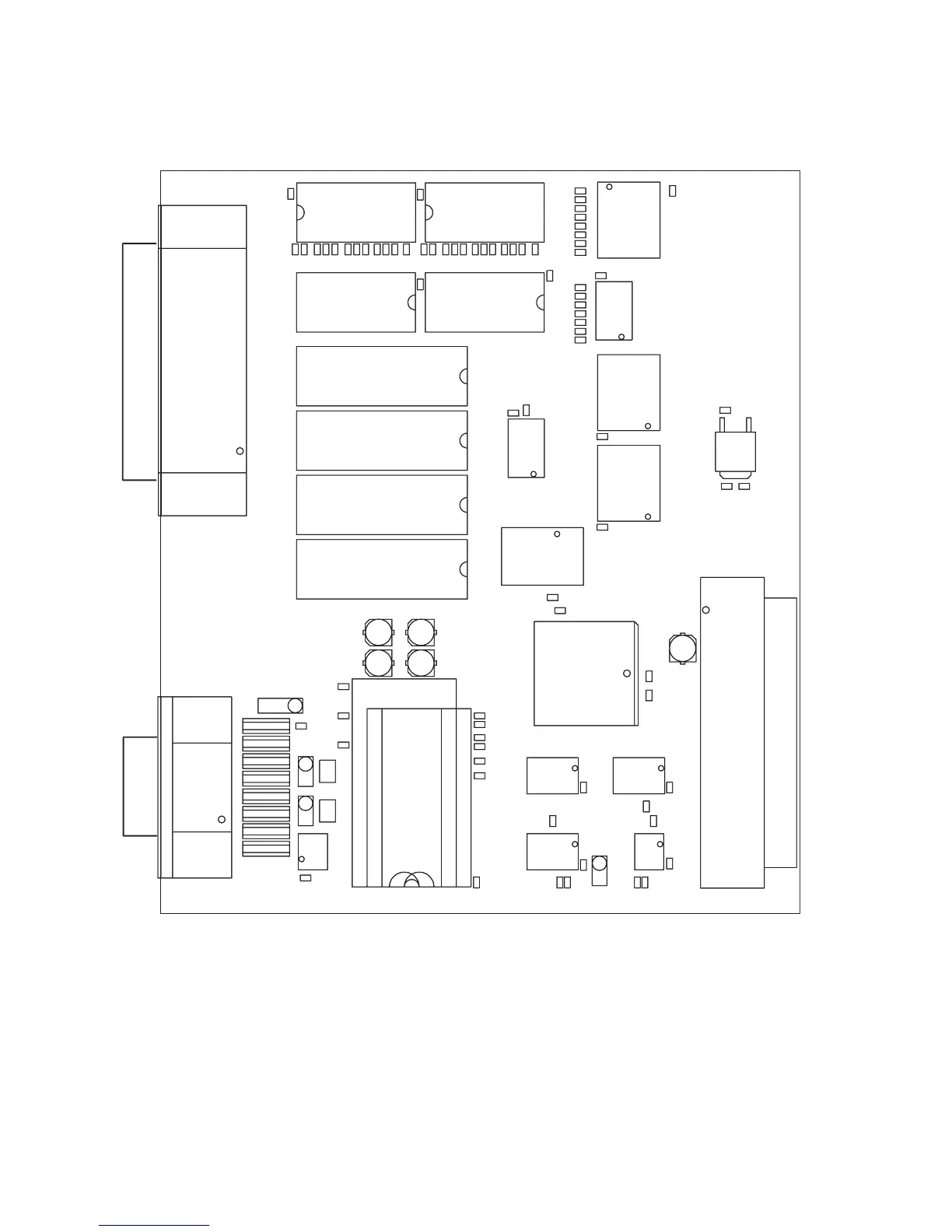

1-971643-26 Serial/Industrial Interface Board; Component side

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
