Intermec EasyCoder PF4i Service Manual

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 243
Appendix A—Program Overviews

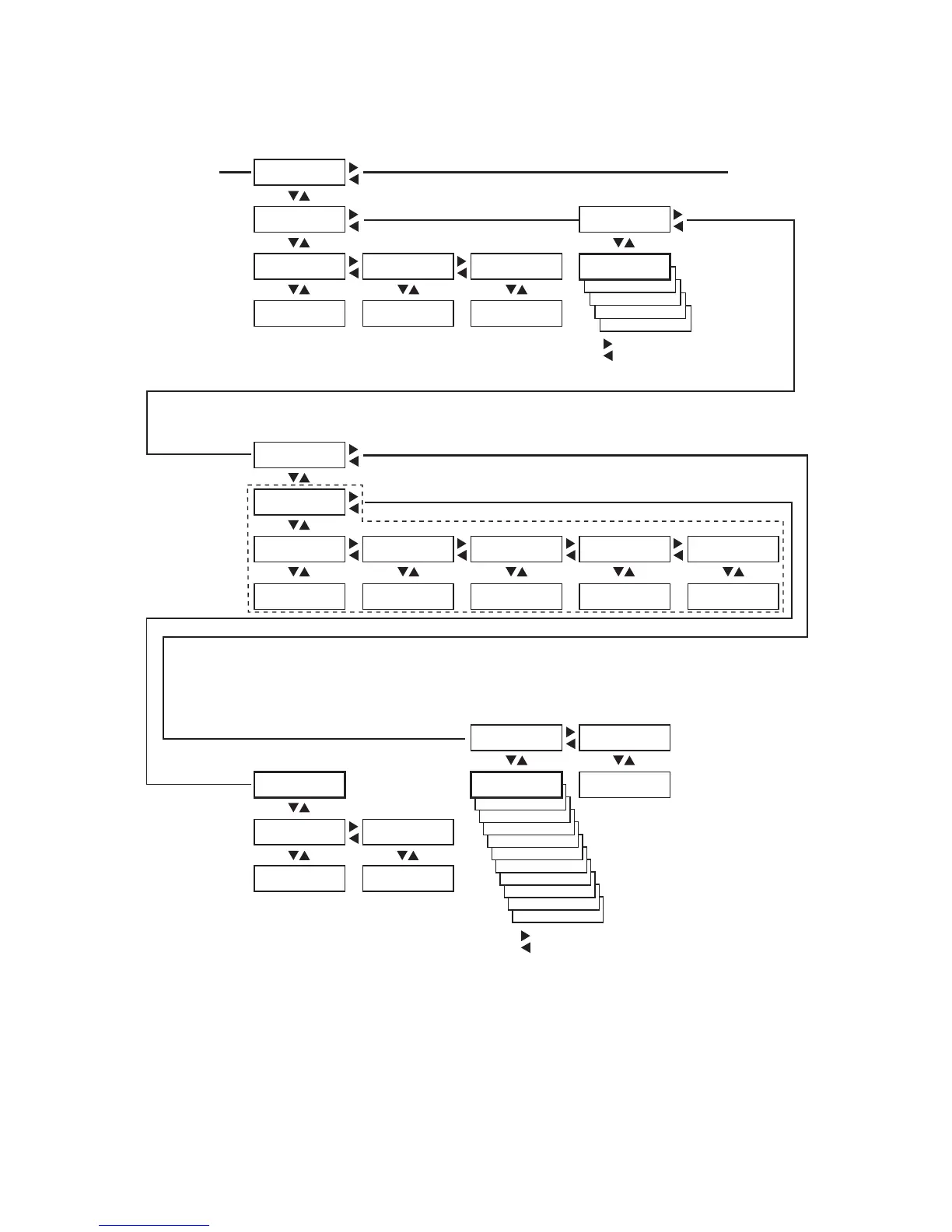

Setup Mode Overview (FP v8.10) Media
CONTRAST:
-2%
CONTRAST:
-4%
CONTRAST:
-6%
CONTRAST:
-8%
CONTRAST:
-10%
CONTRAST:
+10%
CONTRAST:
+8%
CONTRAST:
+6%
CONTRAST:
+4%
CONTRAST:
+2%
MEDIA TYPE:
VAR LENGTH STRIP
MEDIA TYPE:
FIX LENGTH STRIP
MEDIA TYPE:
TICKET (w GAPS)
MEDIA TYPE:
TICKET (w MARK)
SETUP:
MEDIA
MEDIA:
MEDIA SIZE
MEDIA:
MEDIA TYPE
MEDIA SIZE:
XSTART
MEDIA SIZE:
WIDTH
MEDIA SIZE:
LENGTH
MEDIA TYPE:
LABEL (w GAPS)
XSTART:
[24]:
WIDTH:
[832]:
LENGTH:
[1200]:
MEDIA:
PAPER TYPE
PAPER TYPE:
TRANSFER
TRANSFER:
RIBBON CONSTANT
TRANSFER:
RIBBON FACTOR
TRANSFER:
LABEL OFFSET
TRANSFER:
RIBBON SENSOR
TRANSFER:
LOW DIAMETER
RIBBON CONSTANT:
[90]:
RIBBON FACTOR:
[25]:
LABEL OFFSET:
[0]:
RIBBON SENSOR:
[14]:
LOW DIAMETER:
[0]:
MEDIA:
CONTRAST
MEDIA:
TEST FEED
PAPER TYPE:
DIRECT THERMAL
CONTRAST:
+0%
TEST FEED:
[26 28 0 10]
DIRECT THERMAL:
LABEL CONSTANT
DIRECT THERMAL:
LABEL FACTOR
LABEL CONSTANT
[85]:
LABEL FACTOR:
[40]:
Continued from
the previous page
Continued on
the next page
Press <Enter> to per-
form a testfeed.
Values are read-only.
Scroll forward
Scroll back
Scroll forward
Scroll back
Not displayed if a transfer
ribbon mechanism is
not installed in the
printer.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
