Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 75
Chapter 7—Print Mechanism
bw
fw

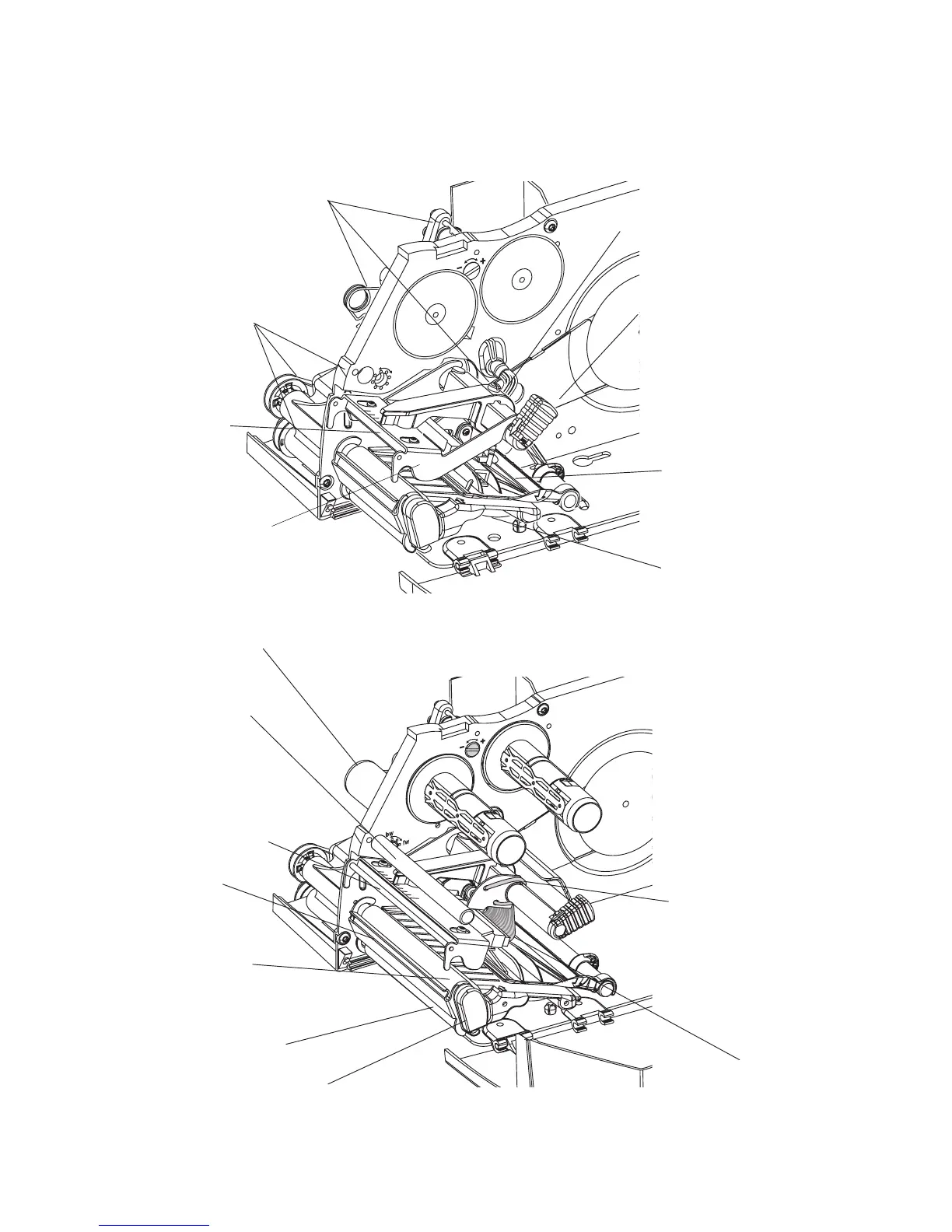

The parts of the print mechanism, as seen from the media compartment
side of the center section, are illustrated below.
Front ribbon
break shaft
Ribbon motor
Printhead
Printhead bracket
Upper label stop sensor
Headlift lever
Pressure arm
Guide link
Print mechanism in an EasyCoder PF2i (direct thermal version)
Print mechanism in an EasyCoder PF4i (thermal transfer version)
Platen roller
Stepper motor,
belts, and pulleys
Liner drive roller
Tear bar
Media guide assy with LSS
Printhead ribbon
break shaft
Headlift mechanism
Printhead
cable
Optional spring
for vertical installation

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
