EasyCoder PX6i User’s Guide (Fingerprint version) 43
Chapter 5 — Thermal Transfer Printing

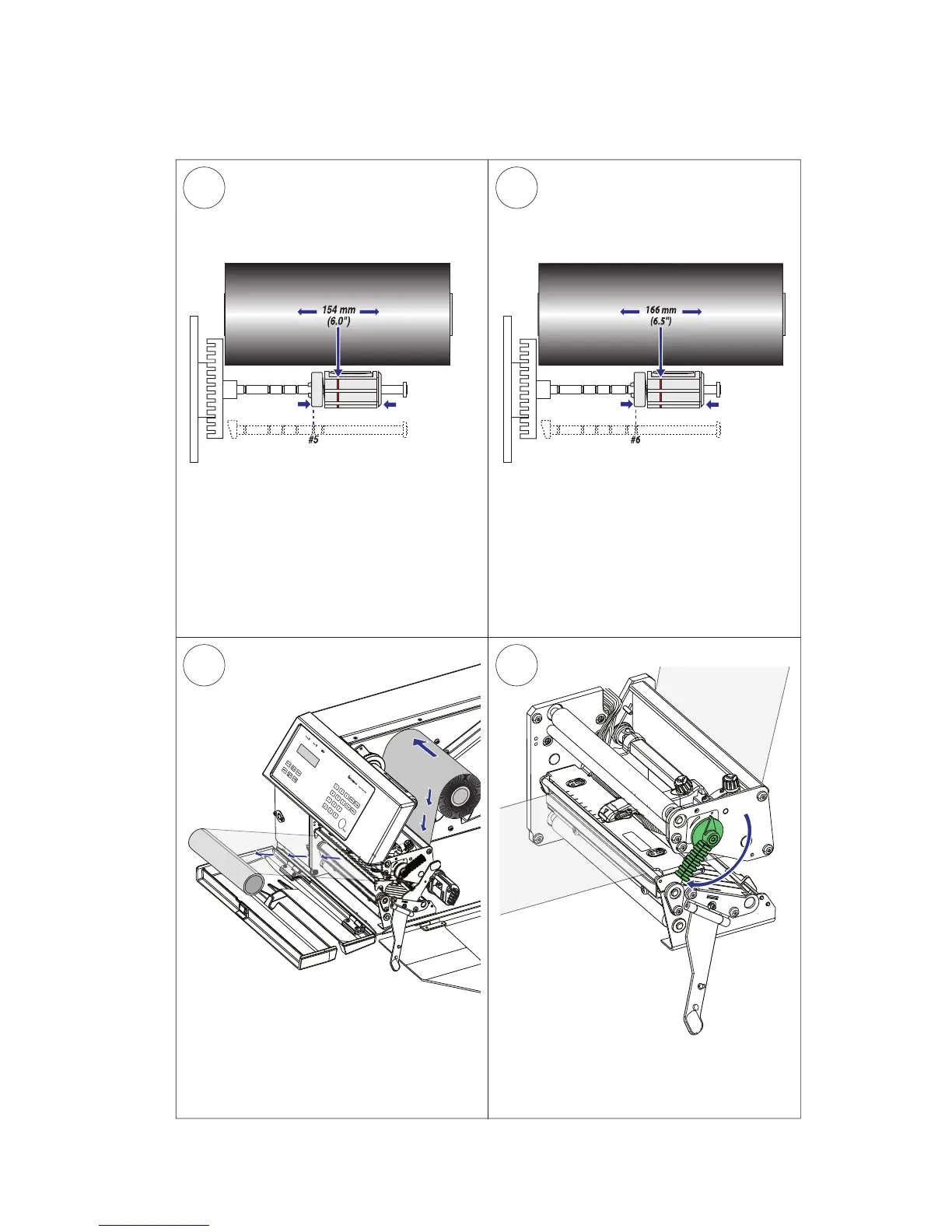

Press the ribbon roll onto the ribbon
supply bobbin (1) and route the ribbon
through the print unit. Pull out 20 cm (8
inches) of ribbon.
Ribbon Load, cont.
In case of 166 mm (6.5 inches) ribbon
width, compress the ribbon supply
bobbin and move it so it snaps into the
sixth groove.
In case of 154 mm (6.0 inches) ribbon
width, compress the ribbon supply
bobbin and move it so it snaps into the
fi fth groove.
Without releasing the ribbon, turn the
printhead lift lever to “Closed” position
to lock the ribbon.
