Interroll MultiControl Instruction Manual

Product information
Version 3.0 (08/2018)
10 Translation of original instruction manual

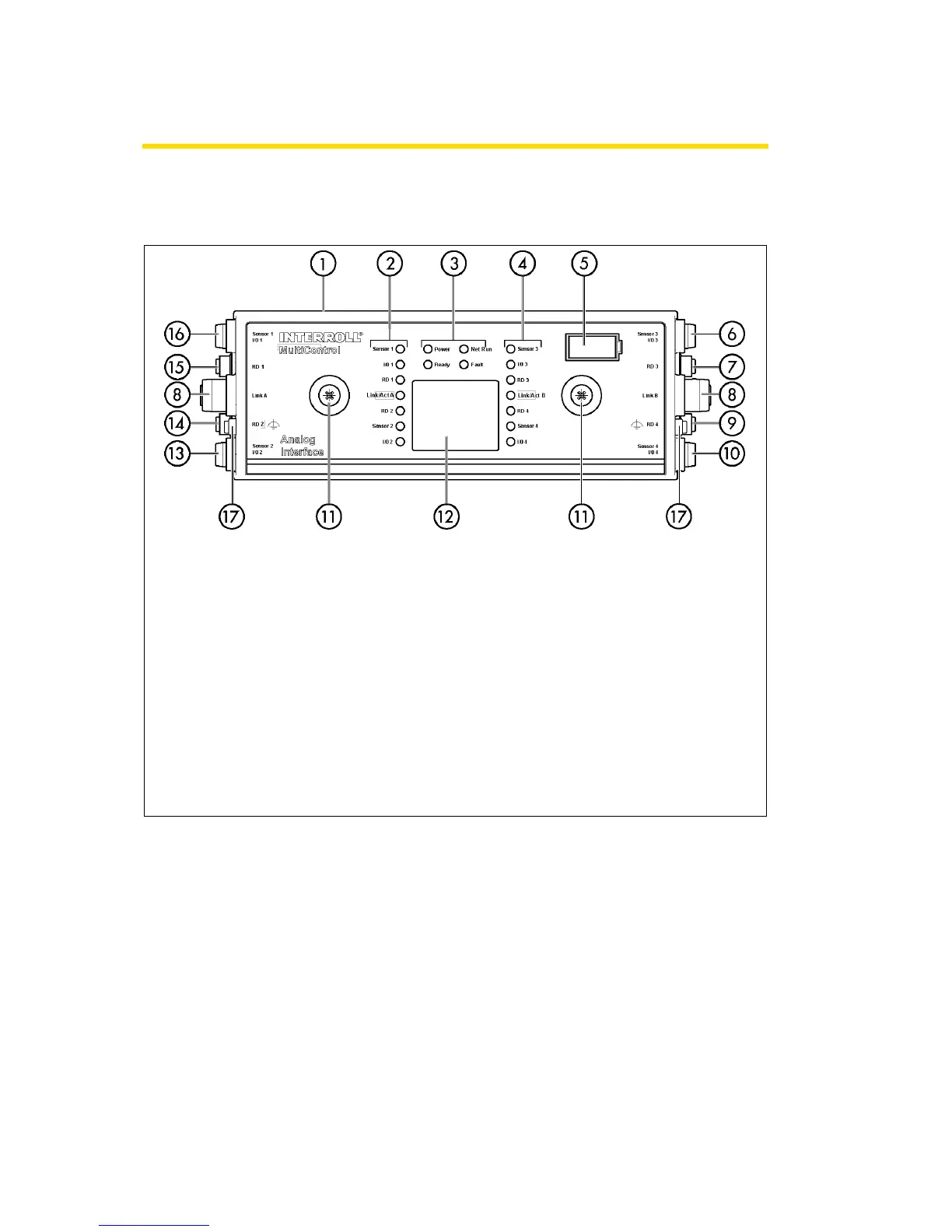

3.2 Structure
MultiControl
1 Magnetic sensor
9 Connection motor RD 4
2 LEDs for left-hand connections
10 Connection sensor 4 / I/O 4
3 General LEDs
11 Fastening screw
4 LEDs for right-hand connections
12 Nameplate
5 Labelling field
13 Connection sensor 2 / I/O 2
6 Connection sensor 3 / I/O 3
14 Connection motor RD 2
7 Connection motor RD 3
15 Connection motor RD 1
8 Connection bus
16 Connection sensor 1 / I/O 1
17 Connection Functional ground

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
