Interroll MultiControl Instruction Manual

Assembly and installation
Version 3.0 (08/2018)
24 Translation of original instruction manual
Characteristic values for the outputs
Output Type
DC General Use
Maximum output current
≤ 200 mA
Output voltage „1“ with PNP
> 15 V @ 200 mA
Output voltage „1“ with NPN
≤ 5 V @ 200 mA
➢ If a sensor connection remains unused, seal it with an M8 dummy cap to achieve IP54
protection.

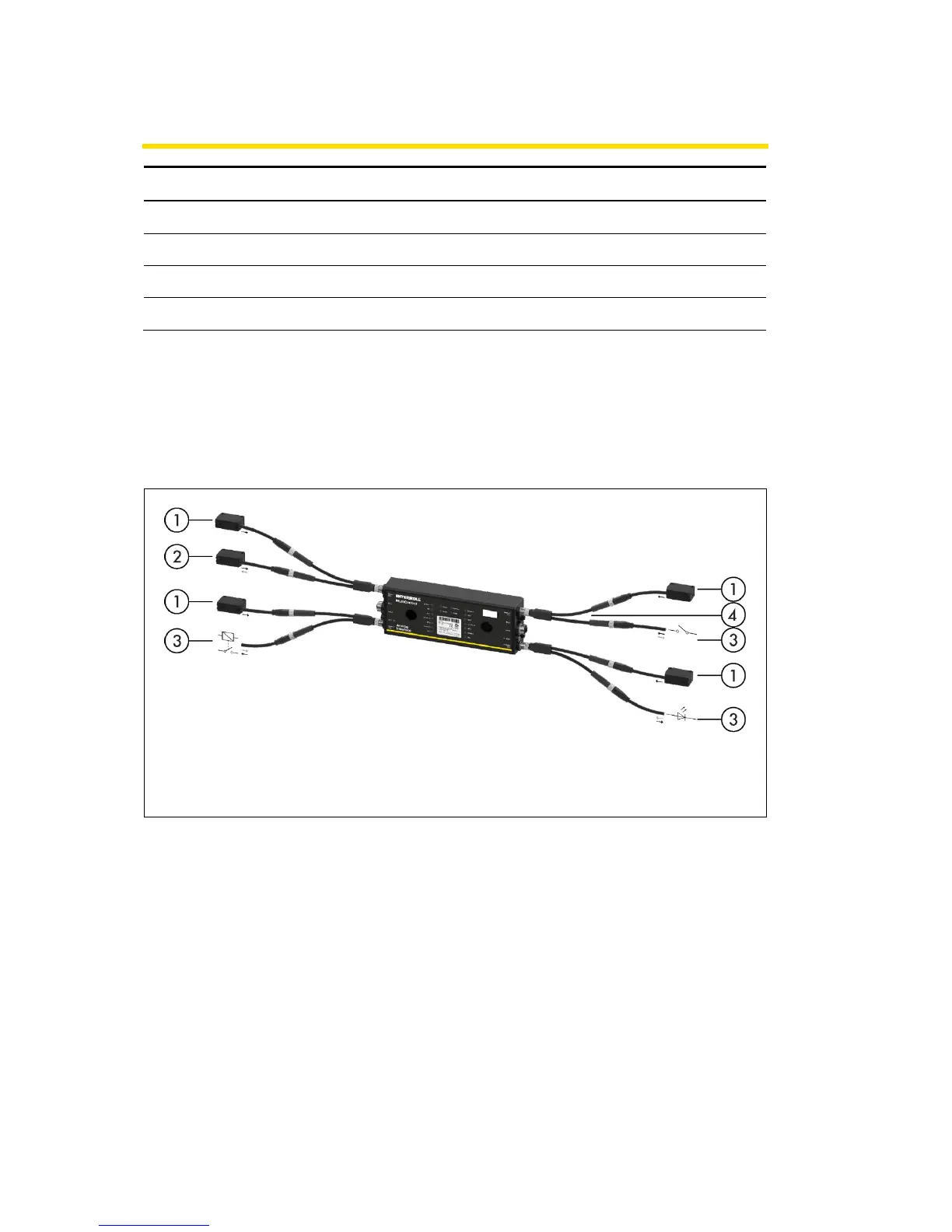

Overview connections
1
Zone Sensor
3
AUX I/O
2
Start Sensor
4
Y Line

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
