Initial start up and operation
Version 3.0 (08/2018)
32 Translation of original instruction manual

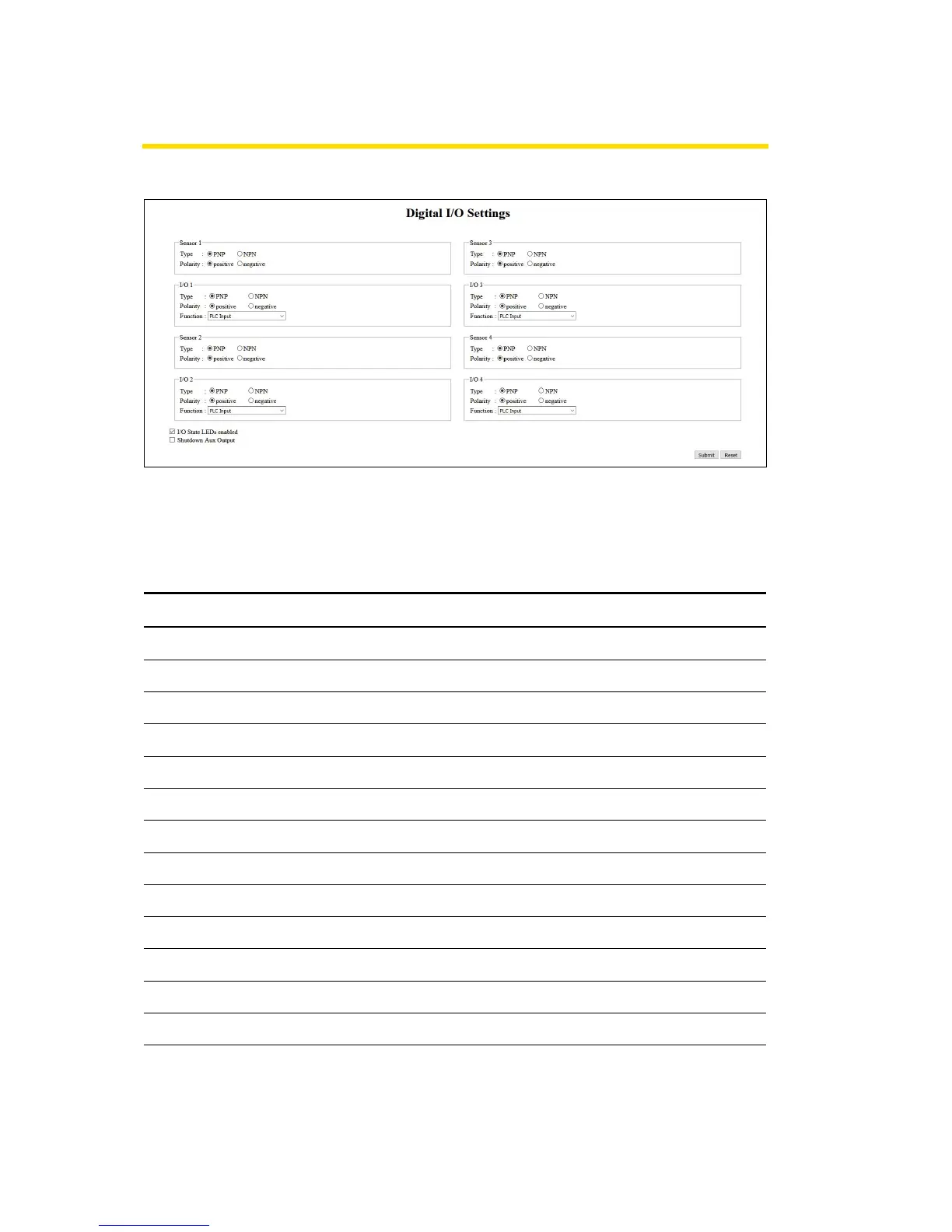

Digital I/O - Settings
The sensors 1 - 4 are basically assigned to the zone sensors.
By using an optional Y-cable additional I/O can be connected.
I/O 1 to I/O 4 can be configured as inputs or outputs with the following functions:
Function
Comment
None
-
PLC Input
Input signal from the PLC
PLC Output
Output signal to the PLC
Sensor 5
Start sensor zone 1 (polarity must be negative)
Sensor 6
Reserve
Sensor 7
Reserve
Sensor 8
Reserve
Control Input 1
Stop Zone 1
Control Input 2
Stop Zone 2
Control Input 3
Stop Zone 3
Control Input 4
Stop Zone 4
Control Input 5 - 8
Without function
Control Output 1
Zone 1 occupied
Control Output 2
Zone 2 occupied
