Initial start up and operation
Version 3.0 (08/2018)
30 Translation of original instruction manual

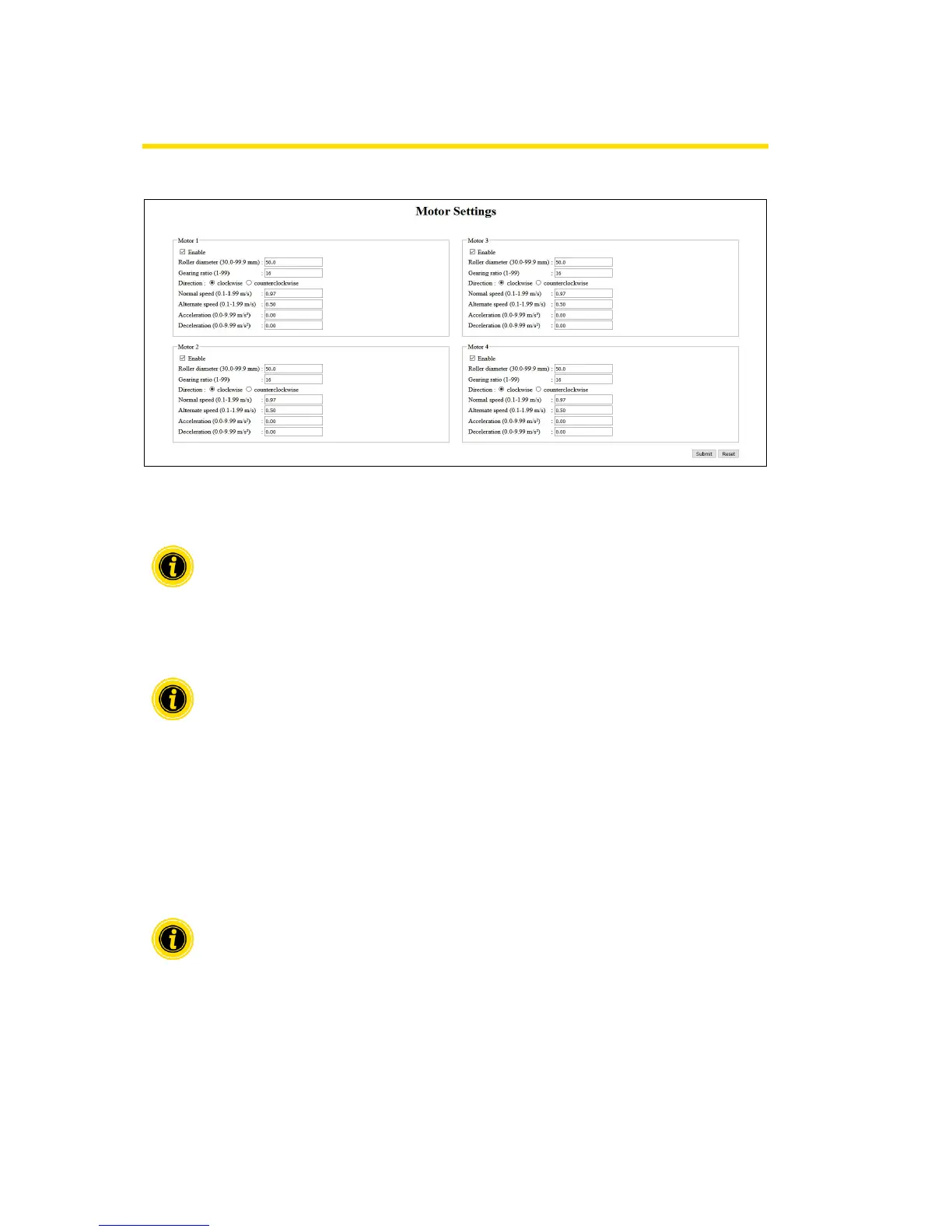

Motor Settings
➢ Disable unused motors to avoid error messages.
If a motor is activated but not connected, the LED RD1 - RD4 flashes.
➢ Enter "Roller diameter", "Gearing ratio" and "Normal speed" according to the RollerDrive
used.
For conical rolls (curves), enter the mean roll diameter as the diameter.
In the "I / O Device" control program, the speed in % refers to the value set here under "Normal
speed".
With the parameter "Direction" the RollerDrive direction of rotation of the installation position is
adapted accordingly (direction of rotation seen from the cable end of the RollerDrive).
"Acceleration" and "Deceleration" change the start / stop behaviour of the RollerDrive. The
parameter "Alternate speed" currently has no function.
To apply the changed parameters to the MultiControl, press the "Submit" button.
