Interroll MultiControl Instruction Manual

Initial start up and operation
Version 3.0 (08/2018)
42 Translation of original instruction manual
Service - Up-/Download

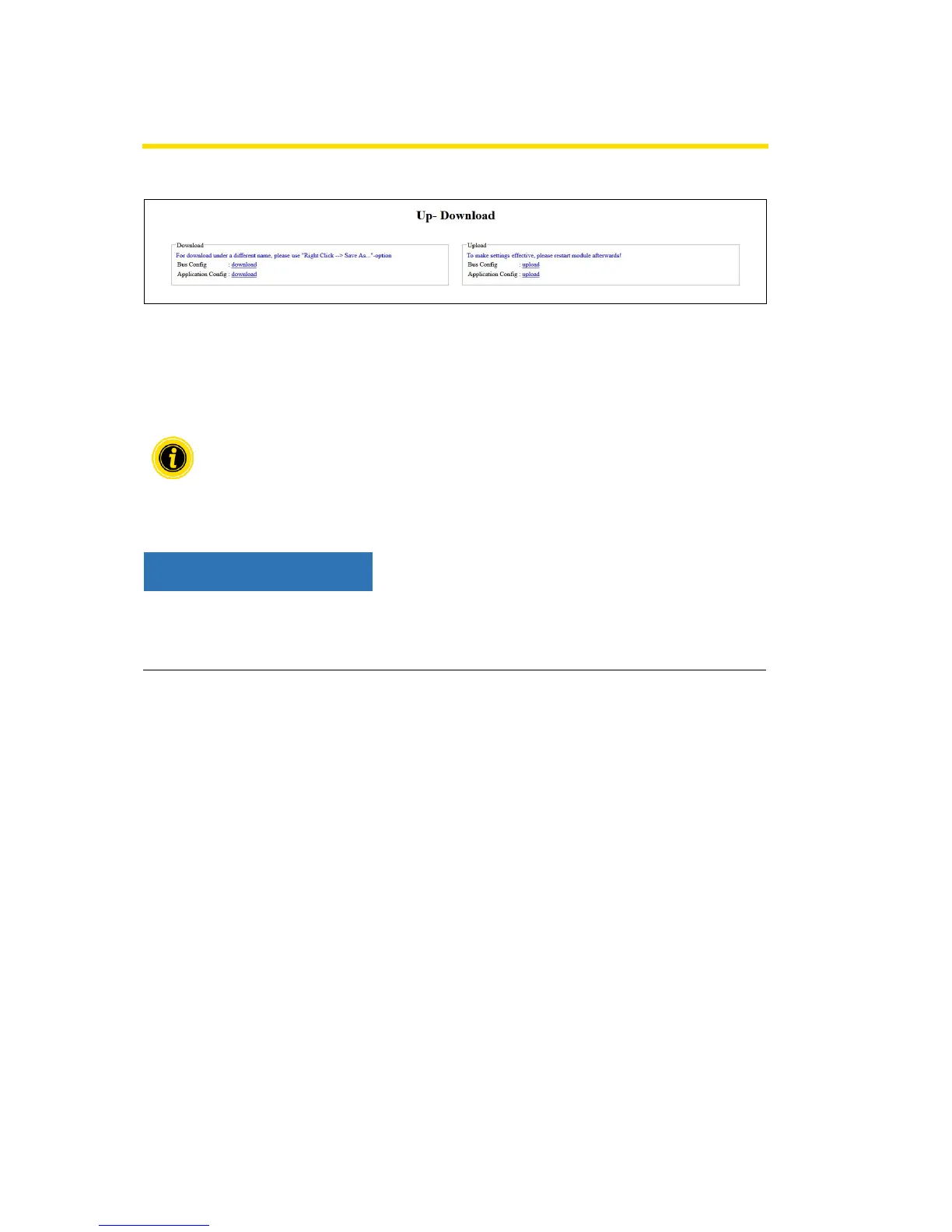

The settings of the MultiControl can be downloaded via the user interface and saved on a
computer. When replacing the MultiControl, the settings can be restored with the data backup.
➢ Save the desired file by right-clicking and "Save as" on the connected PC.
Pay attention to the correct order during the upload!
1. Bus Config
2. Application Config
NOTICE
Destruction of the MultiControl due to premature shutdown of the supply voltage
➢ Ensure that the power supply is uninterrupted during the change of bus type until the
restart is complete. Duration of the process about two minutes.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
