Interroll MultiControl Instruction Manual

Initial start up and operation
Version 3.0 (08/2018)
34 Translation of original instruction manual

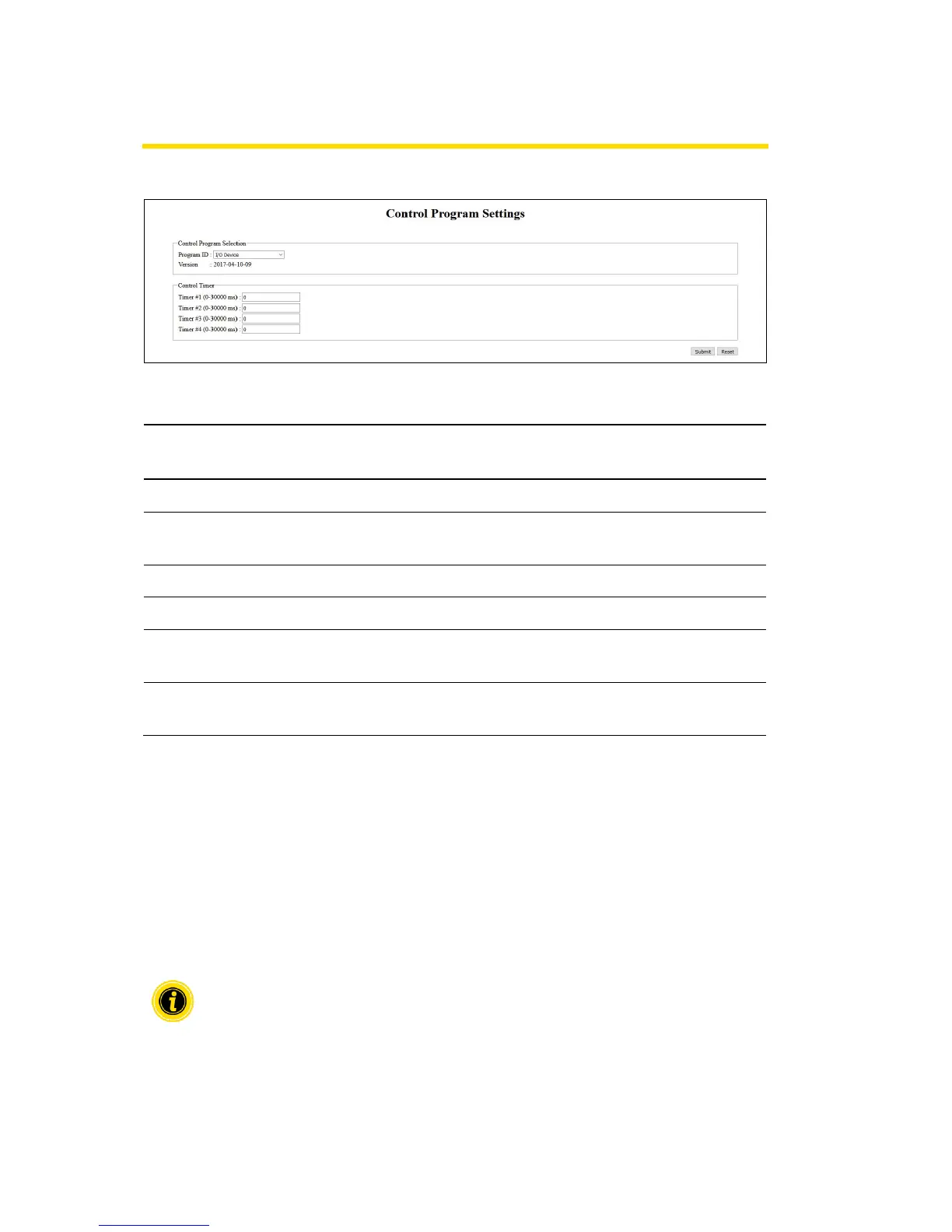

Control Program
Selection of Control Programs
ZPA Single Release
Program-ID
ZPA Train Release
Program-ID
ZPA Module
Program-ID
No ZPA
Program-ID
Single Release 1 Zone
Train Release 1 Zone
ZPA Transfer In
I/O Device
Single Release 2 Zone
Train Release 2 Zone
ZPA Transfer
Out
Single Release 3 Zone
Train Release 3 Zone
ZPA Merge
Single Release 4 Zone
Train Release 4 Zone
ZPA HPD
HPD Semi-
Automatic
Transfer Semi-
Automatic
Control Timer
Timer 1: Single release: Transfer communication time
Train release: Time-delayed start of the RollerDrive
Timer 2: Internal conveyance monitoring
Timer 3: Trailing RollerDrive
Timer 4: Error reset
Depending on the selected control program, the functions and factory settings of the
timers vary (see description of the control programs in the supplementary document
"Interroll MultiControl - Operating and Programming").
To apply the changed parameters to the MultiControl, press the "Submit" button.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
