Interroll MultiControl Instruction Manual

Assembly and installation
Version 3.0 (08/2018)
Translation of original instruction manual 17
➢ Drill two  6,5 mm holes at the markings in the conveyor frame.
➢ Secure the baseplate to the conveyor frame with M6 screws.
➢ Make sure that no distortion of the baseplate has occurred.
➢ Insert flat cables of the power supplies (see „Connect the power supply“, page 20).

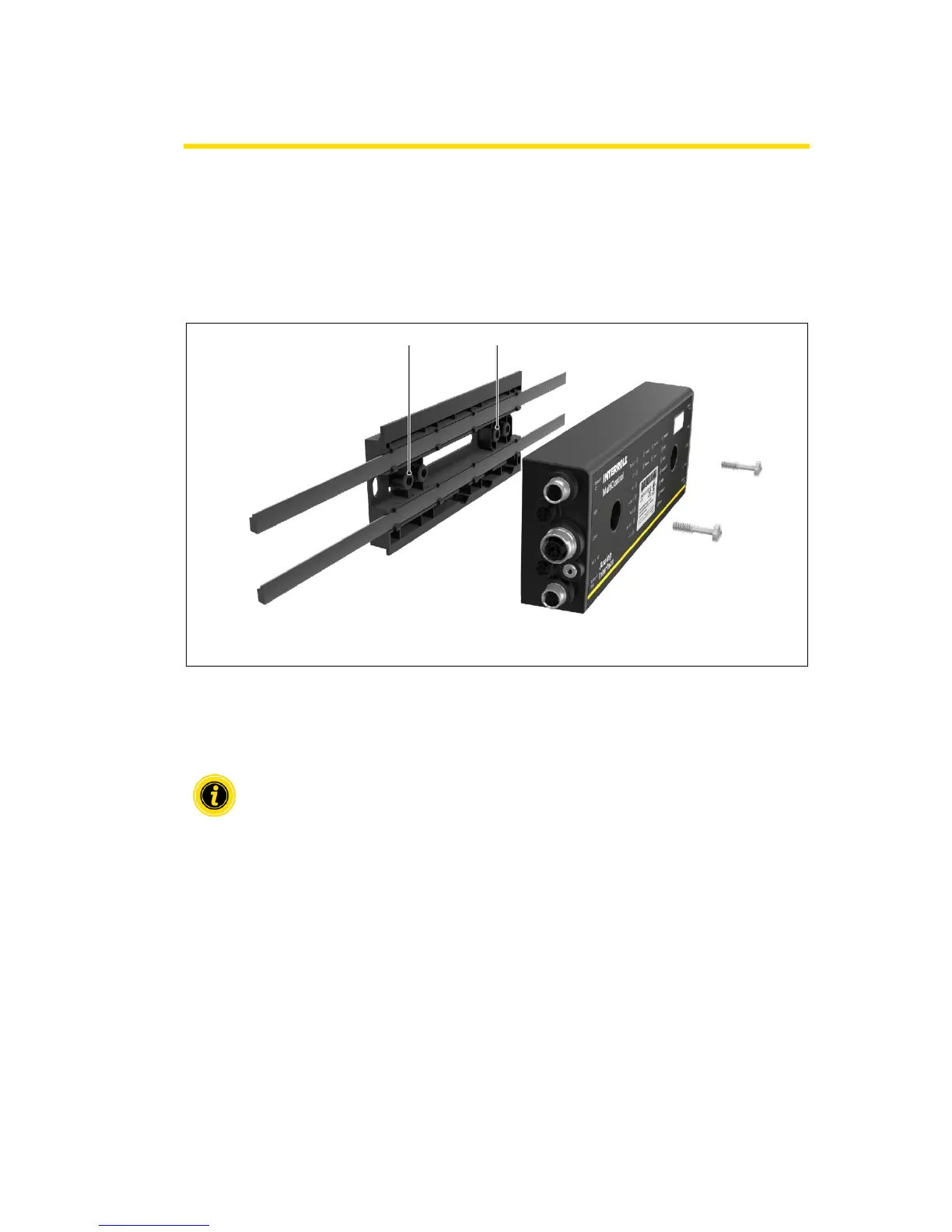

➢ Place the MultiControl on the left-hand bore and press until the lock engages.
➢ Screw the MultiControl to the base plate (tightening torque: max 2Nm). As a result, the
piercing contacts are driven through the flat cable and made the contact with the power
supplies.
Use the screws provided to fix the MultiControl to the base plate.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
