Goodrive35 inverters Installation guidelines
32

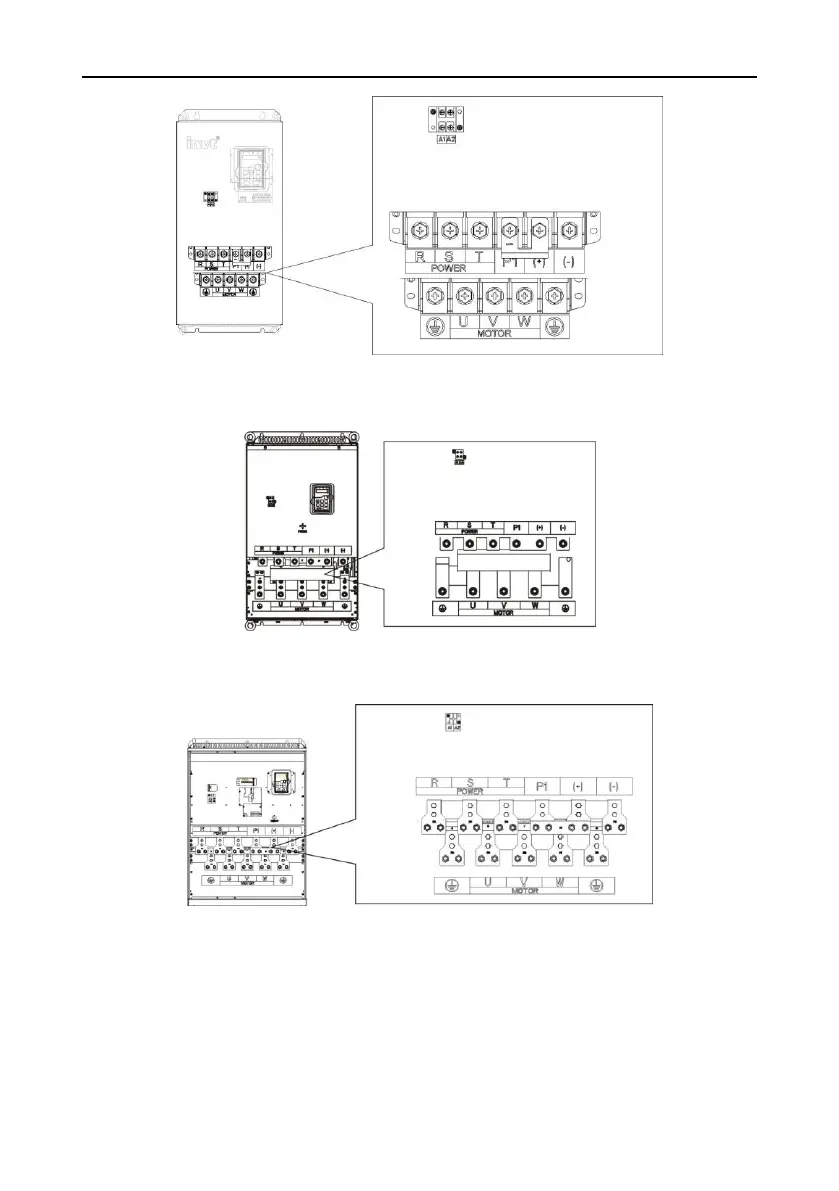

Fig 4-15 Terminals of main circuit for the inverters of 380V 75~110kW
Fig 4-15 Terminals of main circuit for the inverters of 660V 55~132kW
Fig 4-16 Terminals of main circuit for the inverters of 380V 132~200kW
Fig 4-16 Terminals of main circuit for the inverters of 660V 160~220kW
Fig 4-17 Terminals of main circuit for the inverters of 380V 220~315kW
Fig 4-17 Terminals of main circuit for the inverters of 660V 250~350kW
