INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Basic operation guidelines
-47-

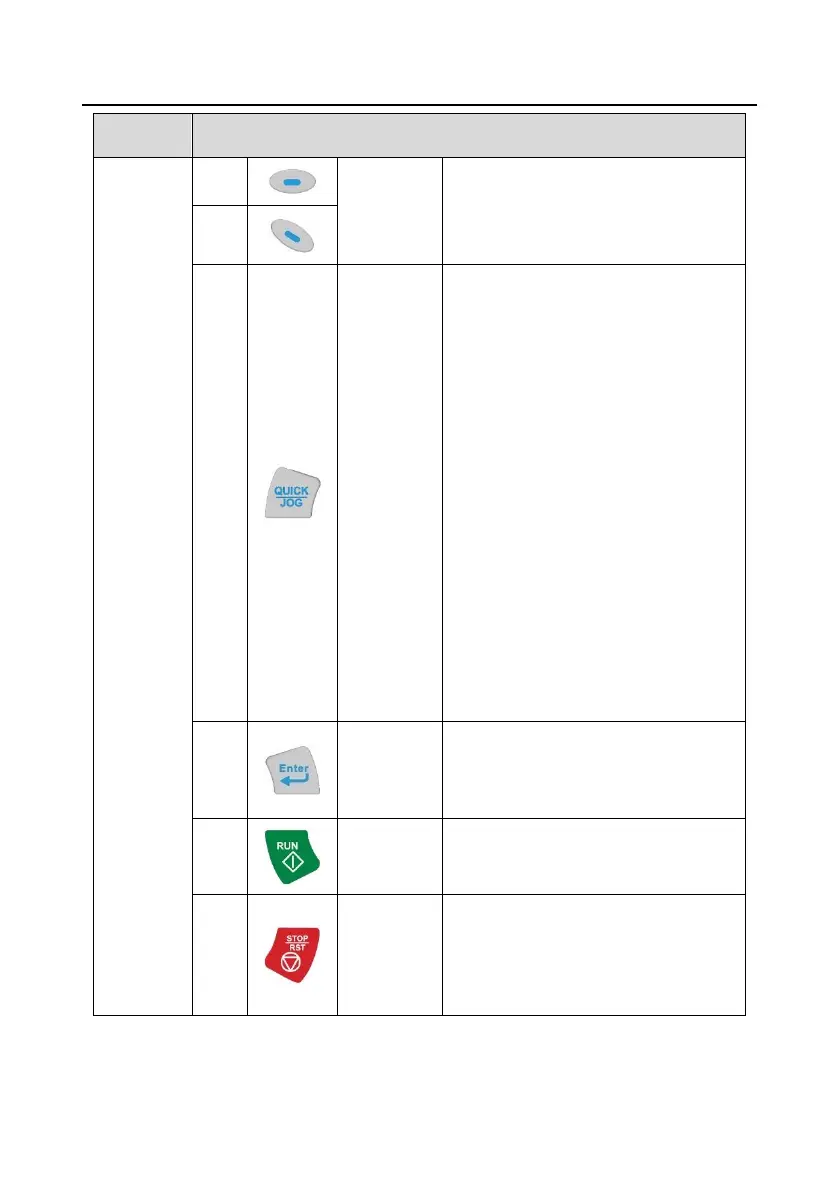

Item
Instruction
(5)
The function of function key is displayed in
the footer
(6)
(7)
Short-cut key
Re-definable. It is defined as JOG function
by default, namely jogging. The function of
short-cut key can be set by the ones of
P07.02, as shown below.
0: No function
1: Jogging (linkage indicator (3); logic : NO);
2: Reserved
3: FWD/REV switchover (linkage indicator
(3); logic: NC)
4: Clear UP/DOWN setting (linkage indicator
(3) logic: NC)
5: Coast to stop (linkage indicator (3); logic:
NC)
6: Switching running command reference
mode in order (linkage indicator (3); logic:
NC)
7: Reserved
Note: After restoring to the default value, the
default function of short-cut key (7) is 1.
(8)
Confirmation
key
The function of confirmation key varies with
menus, such as confirming parameter setup,
confirming parameter selection, and entering
the next menu.
(9)
Running key
Under keypad operation mode, the running
key is used for running operation or
autotuning operation.
(10)
Stop/
Reset key
During running state, press the Stop/Reset
key can stop running or autotuning; this key
is limited by P07.04. During fault alarm state,
all the control modes can be reset by this
key.
