Goodrive35 Series Closed-loop Vector Control VFD Function parameters
101

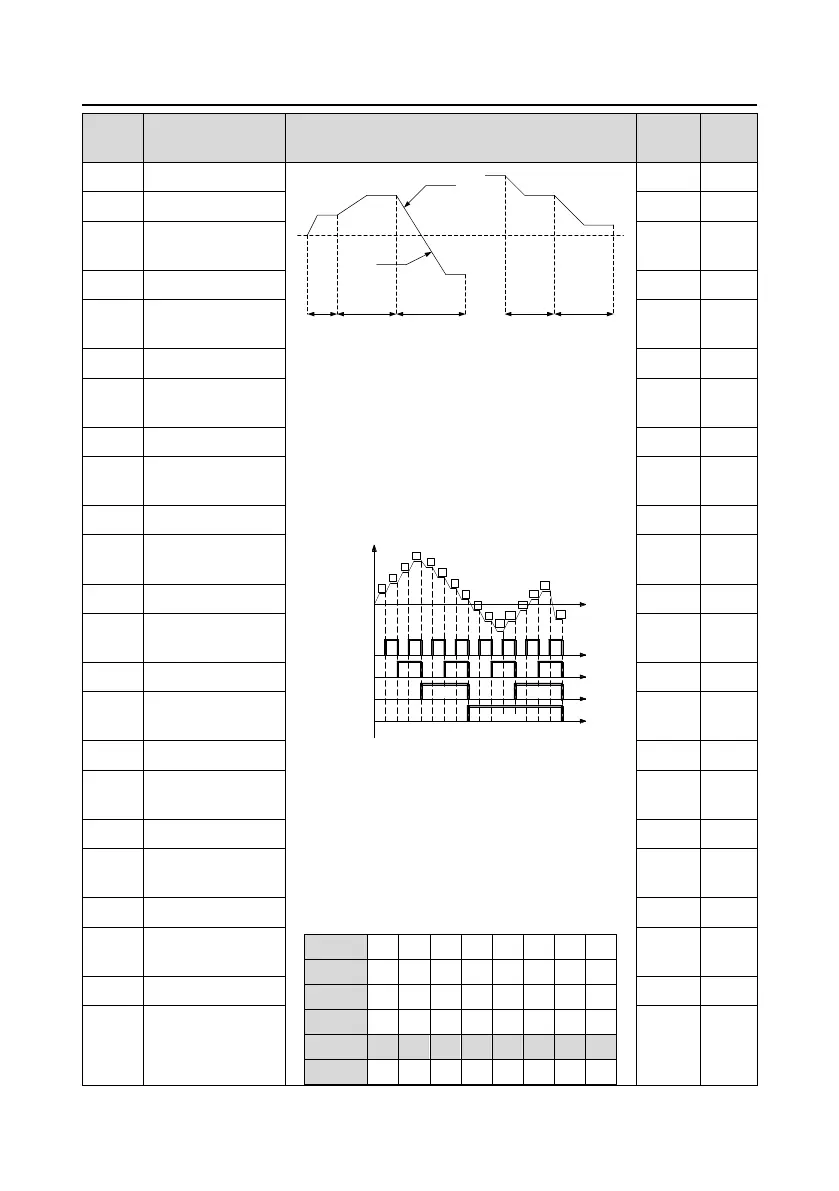

Detailed instruction of parameters
P10.02
P10.04
P10.06
P10.32
P10.30
P10.28
Deceleration time
(two sections)
Acceleration time
(two sections)
P10.03 P10.05 P10.07 P10.31 P10.33
If multi-step speed operation is selected, multi-step
speeds are in the range of --f
max
–f
max
and it can be
set continuously. The start/stop of multi-step running
is also determined by P00.01.
Goodrive35 series VFDs can set 16 stages speed,
selected by the combination of multi-step terminals
1–4 (select the setting by S terminals, the
corresponding function codes are P05.01–P05.09),
corresponding to the speed 1 to speed 15.
Output frequency
t
t
t
t
t
Terminal 1
Terminal 2
Terminal 3
Terminal 4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ON ON
ON
ON ON
ON ON ON
ON
ON
ON
ON
ON
ON
ON
When terminal 1, 2, 3, 4=OFF, the frequency input
mode is selected via P00.06 or P00.07. When
terminal 1, 2, 3, and 4 are not off, they run at
multi-step which takes precedence of keypad,
analog value, high-speed pulse, PLC, and
communication frequency input.
The relation between terminal 1, 2, 3, 4 and
multi-step speed is as following:
The running time of
step 5
The running time of
step 6
The running time of
step 7
The running time of
step 8
The running time of
step 9
The running time of
step 10
The running time of
step 11
The running time of
step 12
