I+ME ACTIA BMS Master 4 - Page 17

Hardware Manual
BMS Master 4 / 4.5
Ref.: IR14417 A 15.01.2018 Page 17/76
+ +
Maximum input voltage like KL30.

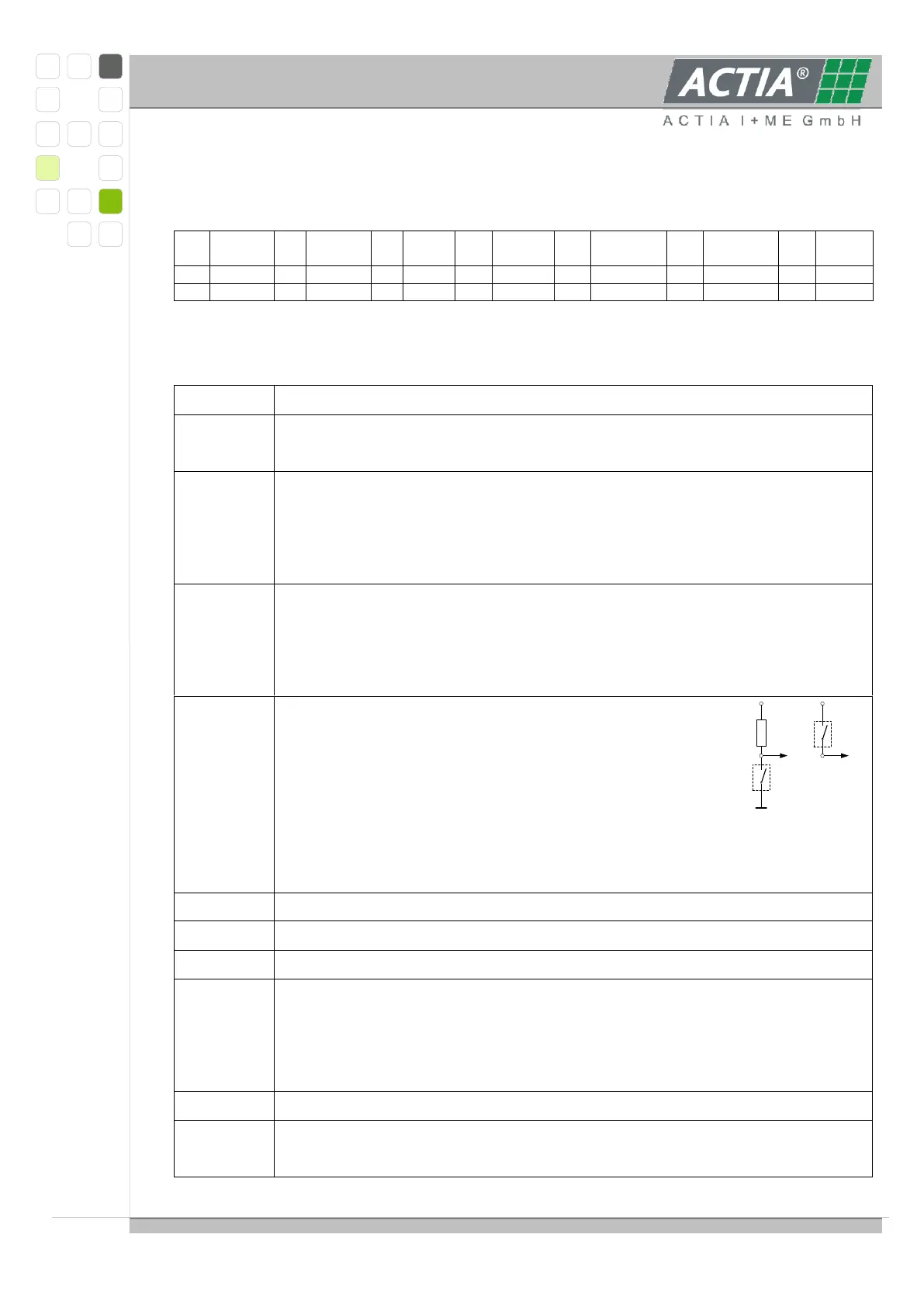

Connector pin assignment / View on the pins:
1
OIN1
4
OIN2
7
7V /
12V
10
SS200
13
FIN1
16
FIN2
19
KL31
2
DIN1
5
DIN2
8
DIN3
11
DIN4
14
IConst1
17
IConst2
20
KL31
3
AIN1
6
AGND
9
AIN2
12
AGND
15
AIN3
18
AGND
21
AIN4
Nomenclature:
SS200
Sensor supply output; KL30 level, max. current 100 mA, (fuse 350 mA)
OIN1…2
Optical isolated current sink inputs;
activated at voltage > 5VDC, internal limited current 4.5 mA
DIN1…2
Digital current sink inputs;
- activated by current > 3 mA,
- deactivated by current < 2.5 mA, internal limited current 4.5 mA
An open or deactivated input DIN1 cuts off relay output REL1 !
DIN3…4
Digital voltage inputs;
- activated by voltage with more than half level of KL30 +1 V
- deactivated by voltage with less than half level of KL30 –1 V
Input resistance 20 kΩ
FIN1…2
Frequency measurement inputs
- activated by voltage higher than 25% level of KL30
- deactivated by voltage lower than 15% level of KL30
Hysteresis 0,2 V, input resistance 44 kΩ
The FIN inputs should be connected to sources switching between high
and low, they should not be connected to sources switching between low
and open. f
max
20 kHz
AIN1…2
Analogue input, range 0…10 V, Input resistance 44 kΩ
AIN3…4
Analogue input, range 0…5 V, Input resistance ≥ 1 MΩ
AGND
Analogue Ground, reference level for AIN1…4
IConst1…2
Constant current outputs for PT100 sensors, 22 mA
- active only while measuring –
PT100 sensors have be connected to AIN3, AGND and IConst1 - or -
AIN4, AGND and IConst1 -2.
KL31
Minus, Ground
7V
12V
Master 4: 7 Volt sensor supply, max. 350 mA
Master 4.5: 12 Volt sensor supply, max. 350 mA
