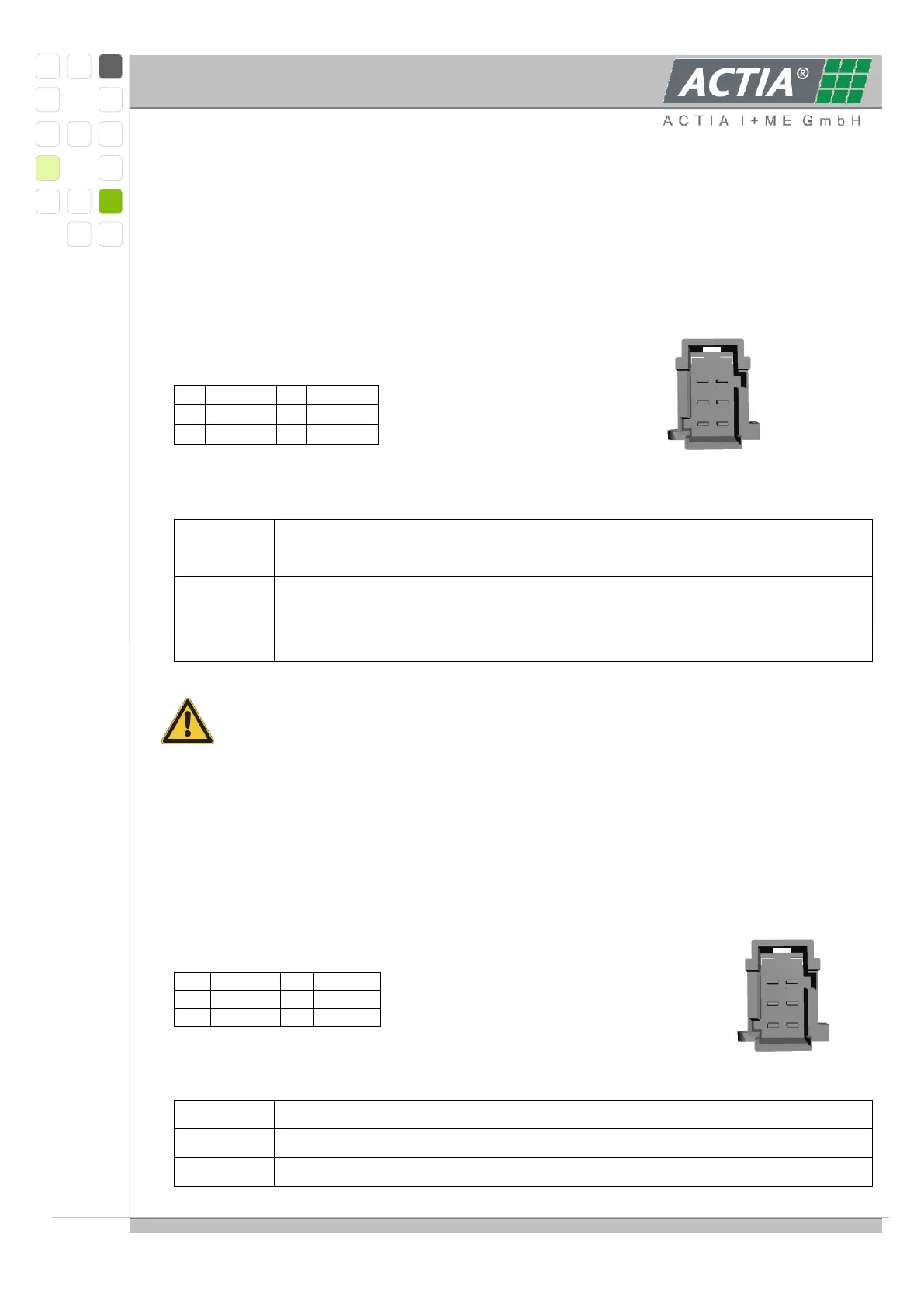

3.1.3.5 CAN INTERFACE 1 & 3, CONNECTOR CN105
For the communication with other devices CAN interfaces are integrated according to CAN
specification V2.0B. Each CAN node is able to transmit and receive standard frames with
either 11-bit- or 29-bit-identifiers.
Interface CAN 1 is operated by the XC167 processor.
Interface CAN 3 is operated by the AT91 processor.
Connector pin assignment / View on the pins:
1
CAN1H
4
CAN3H
2
CAN1L
5
CAN3L
3
Shield
6
Shield
Nomenclature:
CAN1H,
CAN1L
Controller Area Network channel 1
For communication with external devices, e.g. host computer.
CAN3H,
CAN3L
Controller Area Network channel 3
for communication with battery control specific units
Shield
Shield connection
The use of shielded and twisted pair cable is strongly recommended.
The termination of CAN-Bus № 1 and № 3 has to be done externally.
3.1.3.6 SLAVE MODULE COMMUNICATION, CONNECTOR CN106
Slave C, Slave 5 module communication is done via an RS485 interface. The interface is
not optical isolated, optical isolation is implemented on the slave modules; communication
baud rate is 19200 Bd. Single cell voltages, temperature values and commands for bypass
resistors are communicated.
Connector pin assignment / View on the pins:
1
BUSA
4
BUSB
2
5VNET
5
FAIL
3
GND
6
Shield
Nomenclature:
5VNET
Slave communication supply 5 V +40/-5 %, 350 mA max.
GND
Ground
BUSA,
RS485 bus lines
