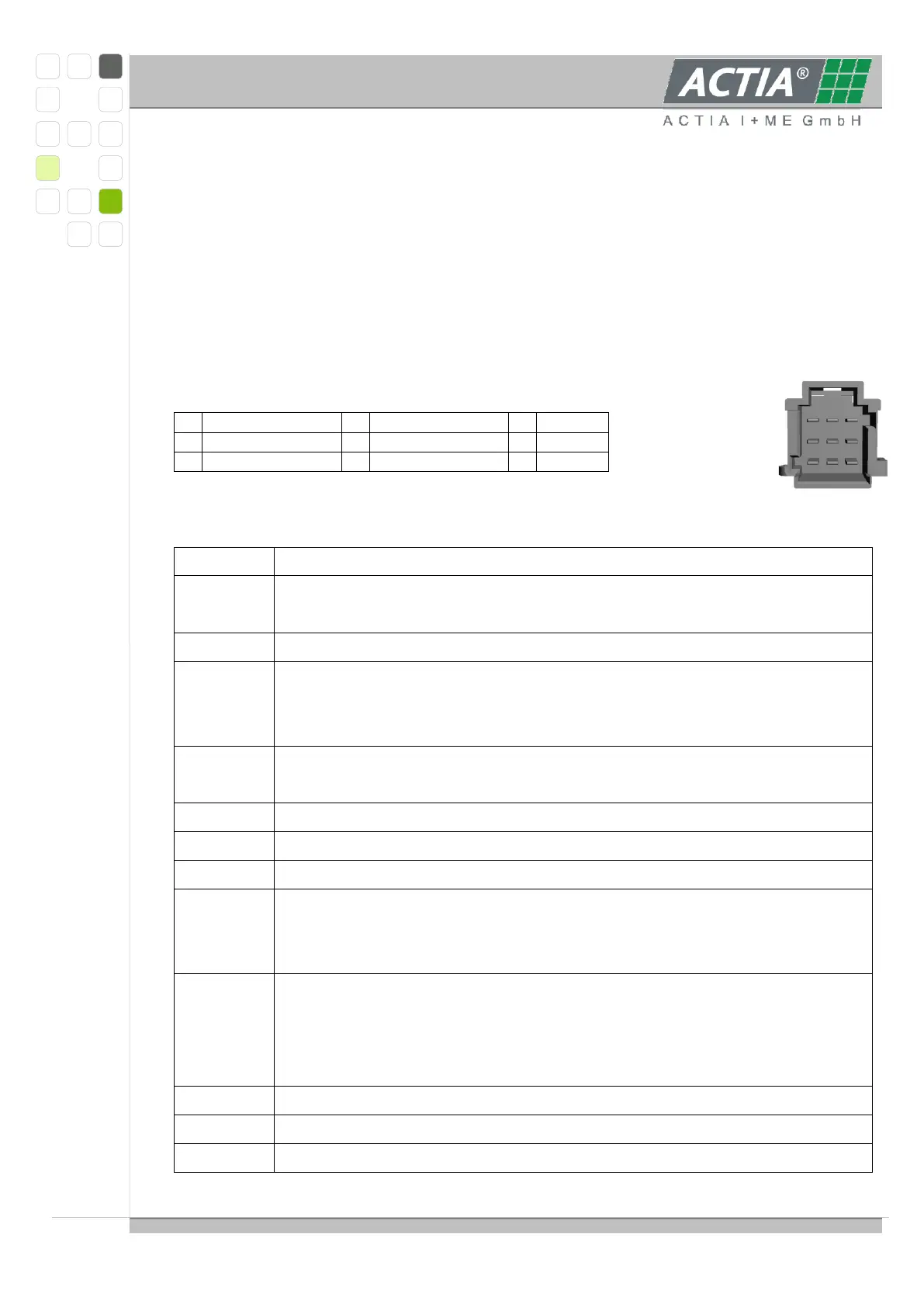

3.1.3.4 CURRENT MEASUREMENT AND CAN2, CONNECTOR CN104
Connector CN104 can be used to connect Current sensor and Slave 6.
Following current sensors are possible:
- Shunt based sensor with isolated CAN interface from ACTIA I+ME GmbH
- Current compensation sensor from Vacuumschmelze
Other sensors with analog output may be used only with proper replacement of some
resistor elements; proper software provided.
Connector pin assignment / View on the pins:
1
7V / 12V
4
KL31
7
CAN2H
2
S1 / OVC
5
S2 / AGNC
8
CAN2L
3
K1 / SIG
6
K2 / REF2V5
9
Shield
Nomenclature:
For sensors with Shunt and CAN interface (BAT-S1000 1U, IVT-B)
7V
12V
Master 4: Sensor supply +7 VDC, 350 mA max.
Master 4.5: Sensor supply +12 VDC, 350 mA max.
KL31
Sensor supply Minus, Ground
CAN2H,
CAN2L,
Shield
CAN bus connections
Only for Sensors VAC_T60404_M4645-X201
Details see Document IR11758A_BMS_HW_Descr_VAC_PCB
S1 / S2
High Current Sense
K1 / K2
Compensation Current
Do not connect the sensor lines LC1 und LC2 for low current
OVC
Only Master 4:
Overcurrent signal, active high
activated by voltage > 2.5 VDC, input resistance 1.1 kΩ
Only Master 4:
Only with proper board assembly
(in connection with proper software, optional)
for sensors with analog output 2,5 V ± 2 V (e.g. LEM HAB)
AGNC
Reference level Sensor Ground
SIG
Input Analog-Signal
REF2V5
Input or output reference voltage 2,5V
